Parking Barrier Gate Romote Control Automatic Parking Boom Barrier Gate
Barrier Gate Description
1. Straight arm , folding arm , fence arm optional
2. The fastest landing gear speed 3S , 6S Customized
3. Use of intelligent, precision manufacturing, advanced waterproof structure and spraying process.
4. Unique design of barrier gate's core
5. With intelligent self-test, open priority protection, preventing damage to vehicles protection, blocking protection,self-locking function limit position.
Parameter
Item | Telescopic arm vehicle barrier gate |
Power | 220V±10% ~ 110V±10% (50/60Hz) |
Power Rating | 120 Watt |
Color | Yellow/Orange/Grey etc |
Remote control distance | ≤30M |
Housing Material | Galvanized Plate |
Arm Gate Material | Aluminum Alloy |
Rail Lifting Time | 1.5S(fast) / 6S(ordinary) |
MCBF | ≥5,000,000 times |
Working Temperature | -10℃ to 45℃ |
Net weight | 60KG |
Optional | LED/Warning/Traffic light |

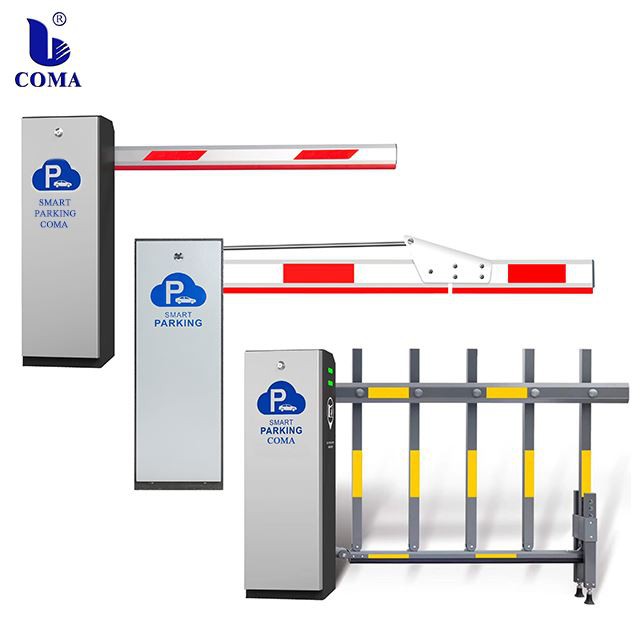

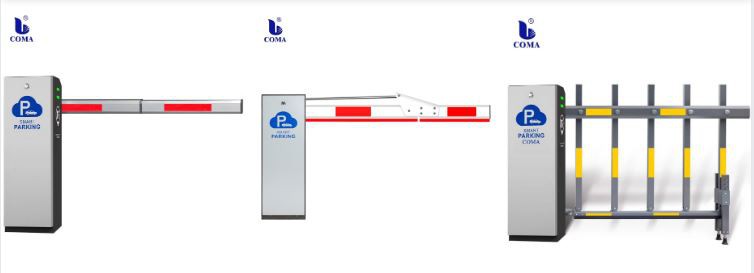

a) Straight arm- suitable for broad area without height limitation
b) Folding arm- suitable for the place with height limitation such as underground parking lot
c) Grid arm- suitable for the place with the ban of animals.
1. Straight up to 6M in general, can be customized.
2. If the straight arm is too long, easy to bend and deformation during transport, and air express requirements of arm length can not exceed 3M, telescopic rod generally consists of two sections, each section of the 3M, the maximum can be extended to 5.3M.
3. The maximum length of the fence typ is 4.5M
4. Folding type up to 6M, in general use of underground garage, can be customized.
