Product Description

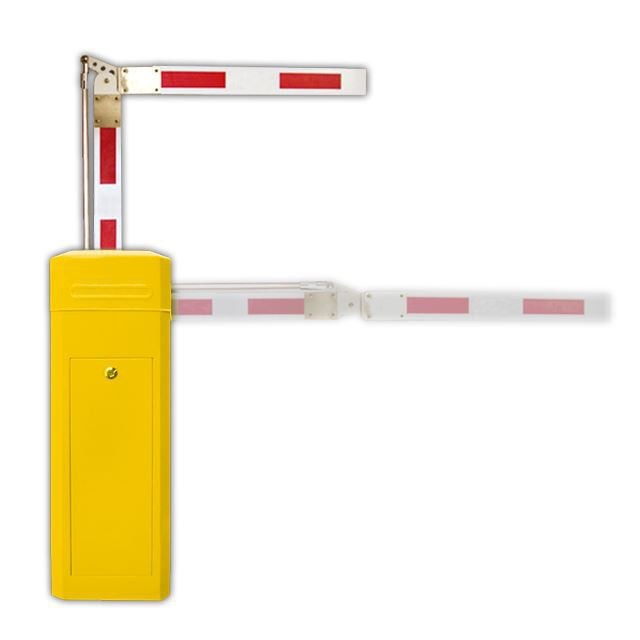

180 degree folding arm barrier gate is available for low headroom application.It is usually used for underground parking lot with height limit.
The max.length supported is 5M, and the operating speed is 3-6S.
Machine core with compression spring, effectively avoids the accidents caused by spring breaking

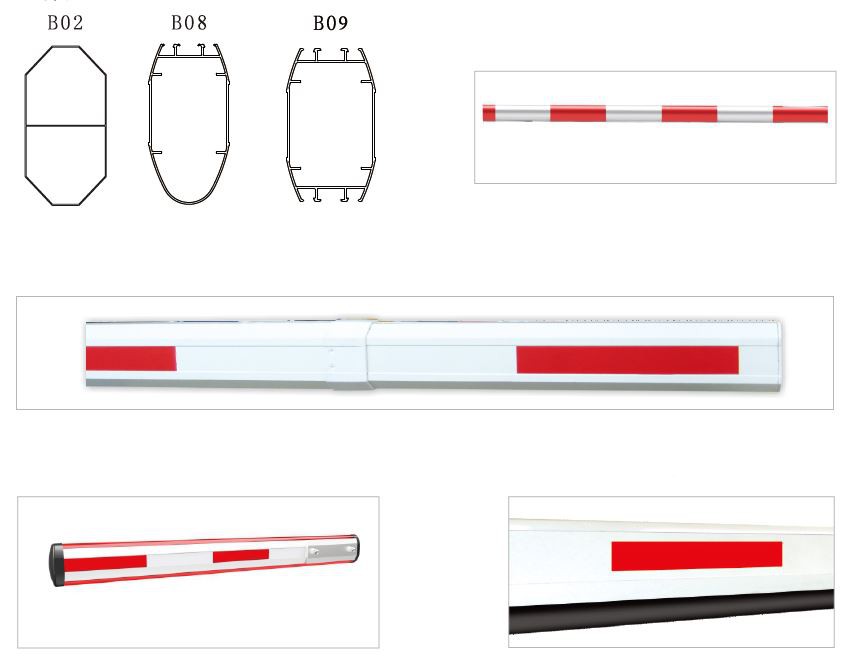

Boom with rubber profiles and light reflector for safety and recognition
Self learning function and encoder controlled movement
Integrated obstacle detection system for extra safety
Customized boom lengths
Easy to integrate with other systems
| Power supply | 110V/220V |
| Motor power | (DC)80W 24V (AC)90W |
| Max length of boom | 6m |
| Time of up and down | 3S(1-3M) 6S(4-6M) |
| Working temperature | -35℃--50℃ |
| Protection class | IP44 |
| Control Case material | A3 steel |
| Control Case thickness | 2mm |
| Weight | 65kgs |
