Smart management system ticket dispenser machine
Guangzhou Coma Ltd.offers a reliable range of automated access control systems tailored to car park application. The integrated solutions includs ticket systems,swipe cards,Automatic Number Plate Recognition(ANPR) or Radio Frequency Identification(RFID) A well designed car parking system can be a successful revenue generator.
Car Parking System for Entrance and Exit
Smart management system ticket dispenser machine, is applied to parking lot with a lot of visitors.The ticket dispenser machine is a new design and smart management machine for car parking lot.
| Auto Ticket/Card Cabinet | |
| Environmental temperature: | -40℃- +75℃ |
| Power consumption: | 120W |
| Power voltage: | 110V/220V,AC,50HZ |
| Applicable scope: | IC card,EMID card,Paper ticket |
| IC/ID reads and writes the distance: | 8-15 cm |
| Offline data storing capacity: | 2000 (can expand) |
| Ingress Protection : | IP54 |
| Certificate : | CE, ISO9001:2000, the design of the case is our patented product |
| Card dispenser capacity: | 250-450 pieces |
| Communication port: | RS232,RS485,CAN |
| Surface handle : | important (spray) |
| Control Case material: | A3 steel |
| Control Case thickness: | 1.5mm |
| Control Case appearance treatment: | imported paint baking |

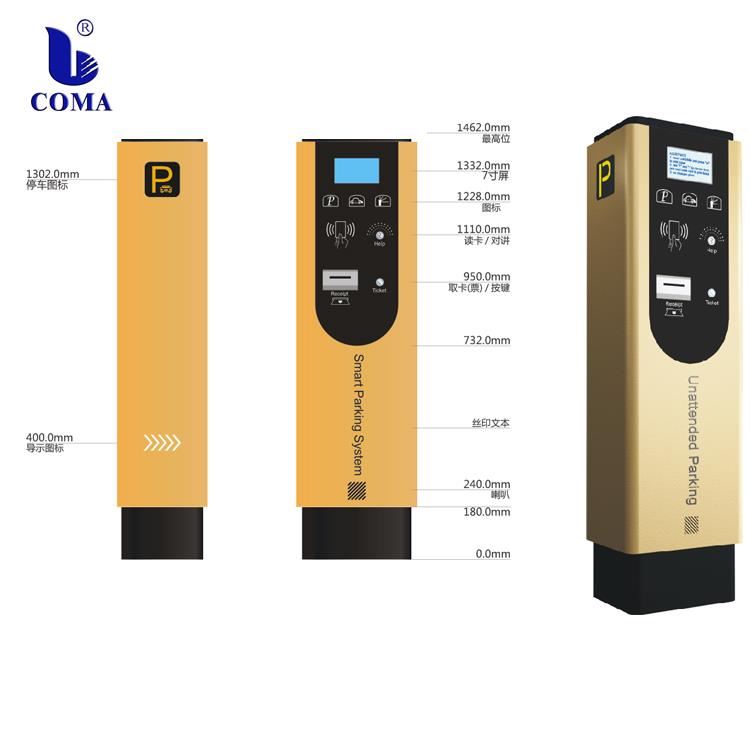

| Case size: | 415*210*1462 mm |
Ticket system Working process
Entrance
1. LCD display gives word welcome
2.Voice prompt reminds driver to take a ticket,
3.Driver presses the button to get a bar code ticket in the entrance ticket machine.
4.After the driver takes the ticket, the barrier gate will open automatically, then the driver can drive his car into the parking lot.
5.When the vehicle detector cannot detect a car's coming, the control cabinet and barrier will never start working, in this case, even a man press the green button, the entrance ticket machine will never dispense a ticket.
Exit
1.LCD display gives word to driver
2.The ticket should be passed to toll collector if there is charge at the exit.
3.After payment, the barrier gate will open automatically, then the driver can drive his car out of the parking lot.
The toll station software and backend software

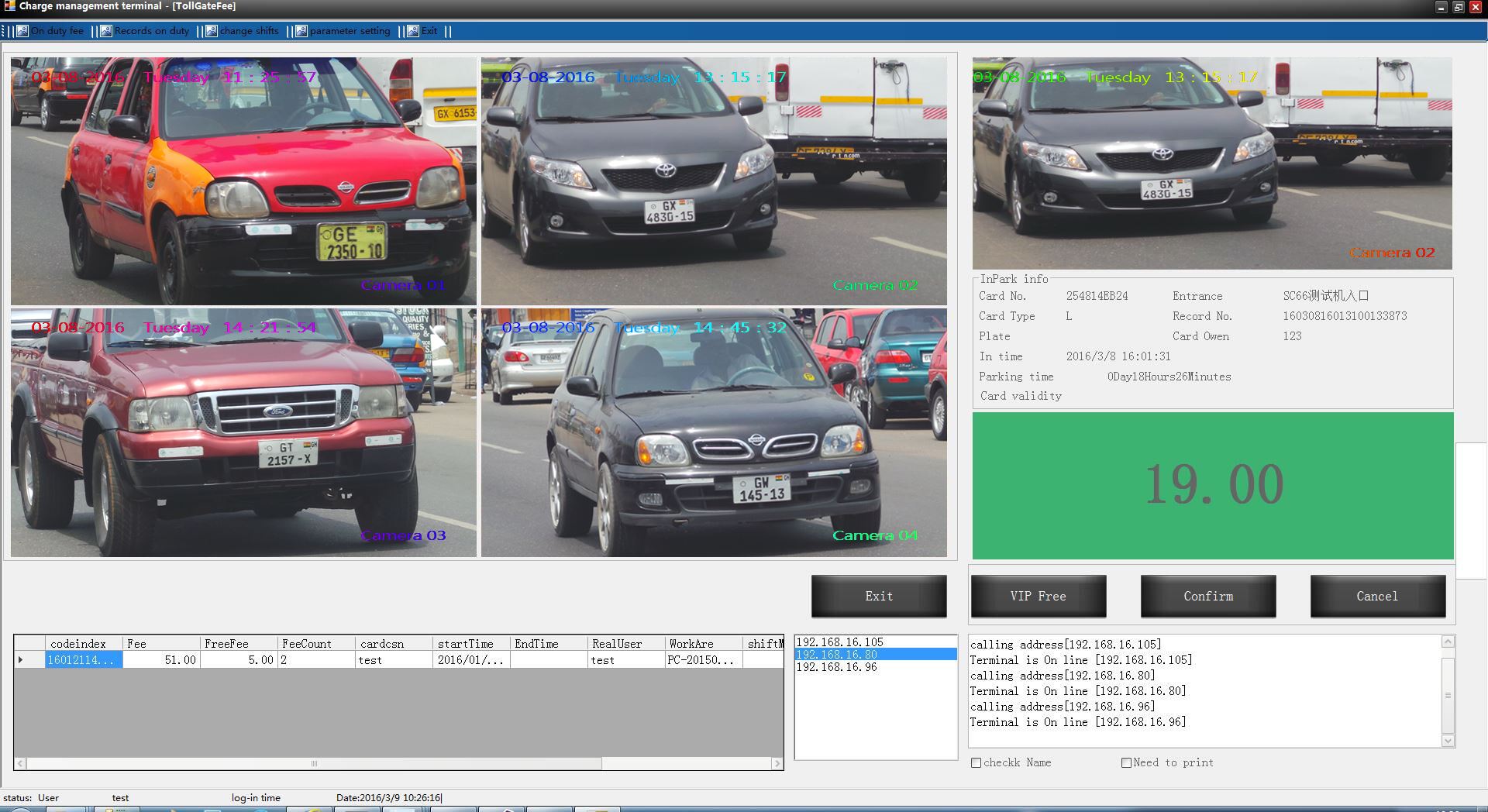

Toll station software
For the toll station software 1) the toll staffs log in, operate and charge the parking fee .2) the toll staffs can set equipment which needs management. 3) the toll staff can check the current paid up amount records.
