Automatic queue Card dispenser parking machine
COMA offers a reliable range of automatic access control systems tailored to car park application. The ticket dispenser machine is a new design and smart management machine. The cost of barcode ticket is reasonable, and can dispense up to 2,500pcs of bar code ticket for one refill.
| Auto Ticket/Card Cabinet | |
| Environmental temperature: | -40℃- +75℃ |
| Power consumption: | 120W |
| Power voltage: | 110V/220V,AC,50HZ |
| Applicable scope: | IC card,EMID card,Paper ticket |
| IC/ID reads and writes the distance: | 8-15 cm |
| Offline data storing capacity: | 2000 (can expand) |
| Ingress Protection : | IP54 |
| Certificate : | CE, ISO9001:2000, the design of the case is our patented product |
| Card dispenser capacity: | 250-450 pieces |
| Communication port: | RS232,RS485,CAN |
| Surface handle : | important (spray) |
| Control Case material: | A3 steel |
| Control Case thickness: | 1.5mm |
| Control Case appearance treatment: | imported paint baking |

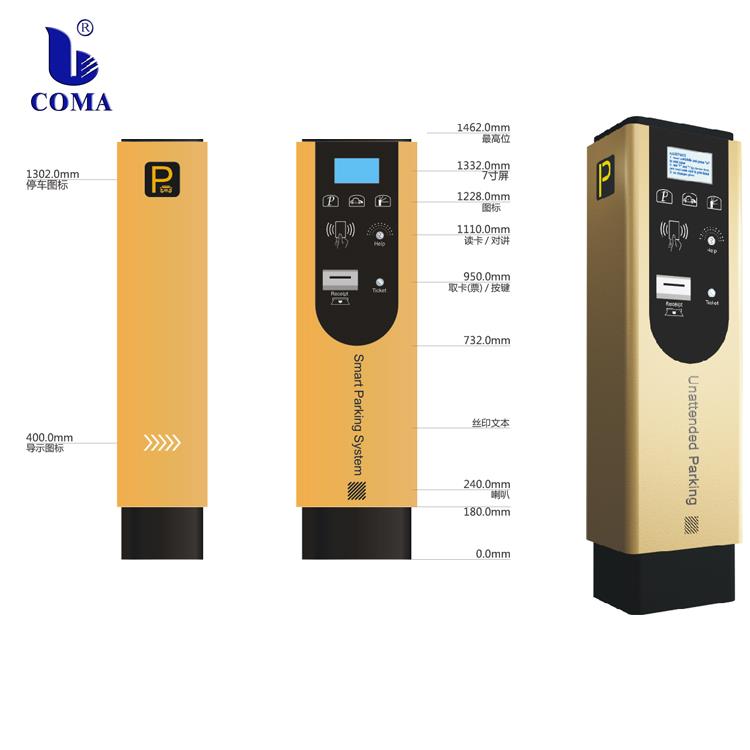

| Case size: | 415*210*1462 mm |
| display screen: | 7''inch LCD screen |
Working process
Entrance
1.LCD display gives word welcome and remind driver to enter
2.Voice prompt reminds driver to take a card or ticket ,
3.Driver needs to get a ticket/card from the dispenser in the cabinet, for monthly card holder, he just needs to swipe the card in the reading area.
4.After the driver takes the card/ticket or swiping the card , the barrier gate will automatically open, then the driver can drive his car into the parking lot.
5.When the vehicle detector cannot detect a car's coming, the control cabinet and barrier will never start working, in this case, even a man press the green button, the Entrance cabinet will never dispense a card/ticket.
Exit
1.LCD display gives word byebye and reminds driver to leave
2.The card/ticket should be passed to toll collector if there is charge at the exit for monthly card holder, he just needs to swipe the card in the reading area.
3.After payment, the barrier gate will automatically open, then the driver can drive his car out of the parking lot.
4.When the vehicle detector cannot detect a car's coming, the control cabinet will never start working, the barrier will never open.
