Ticket Access Control Parking Management System Software

Ticket Access Control Parking Management System Software

Ticket access control parking management system software Hourly parkers take barcode ticket at entry, walk to central paypoint to pay cash, and drive to the exit to scan barcode ticket at exit scanner to leave, season parkers get access and leave by self-service swiping their cards on entry...
Send Inquiry
Download

Ticket access control parking management system software


Hourly parkers take barcode ticket at entry, walk to central paypoint to pay cash, and drive to the exit to scan barcode ticket at exit scanner to leave, season parkers get access and leave by self-service swiping their cards on entry ticket dispenser and exit ticket scanner respectively. It’s ideal solution for parking lots for shopping mall, airport,exhibition, residential area etc.

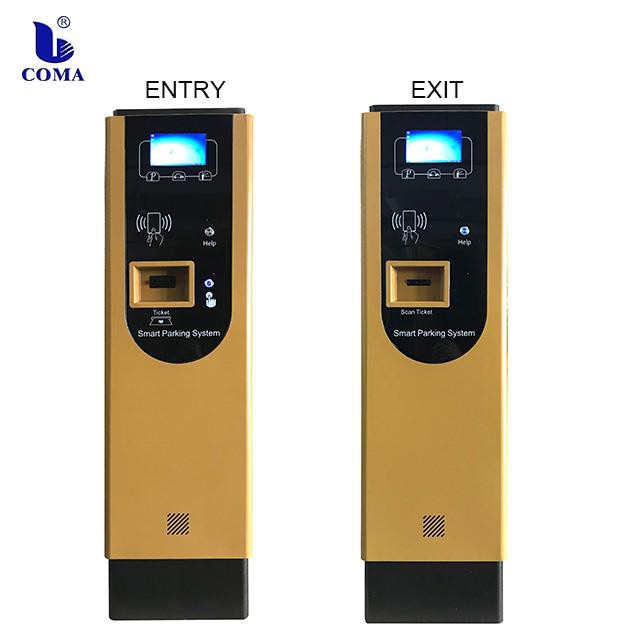

Barcode ticket dispenser

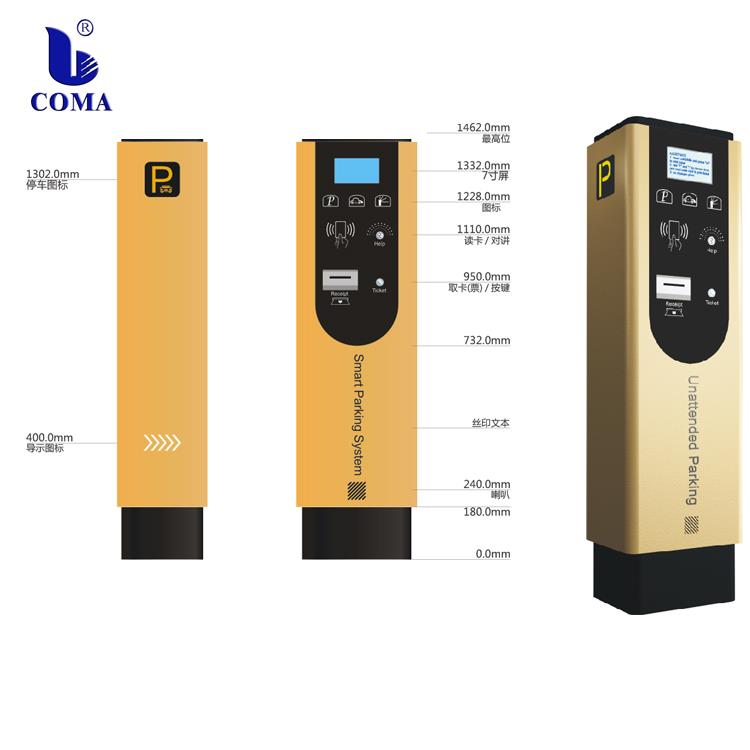

BARCODE TICKET DISPENSER WITH CARD READER (CMK800)

Housing

1.Environmental temperature: -40℃- +75℃
2.Power consumption: 120W
3.Power voltage: 110V/220V,AC,50/60HZ
4.Applicable scope:Issue barcode ticket/ID card
5.Card reading distance: 8~15cm
6.Offline data storing capacity: 20,000
7.Ingress Protection : IP54
8.Certificate : CE, ISO9001:2000, the design of the case is our patented product
9.Communication port: RS232,RS485,LAN
10.Qty of tickcet: 2000~2500 tickcets per roll
11.Printing speed: 2 tickets per second
12.Control Case thickness: 2mm
13.Dimension: 520*300*1450 mm                                                     14. G.W: 70kg

Motherboard

ID Reader

Issue ticket module

LED Screen

Voice prompt

Power supply Accessories



Barcode ticket scanner

Item

Configuration

Parameter

BARCODE     TICKET          SCANNER    WITH CARD  READER (CMK806)

Housing

1.Environmental temperature: -40℃- +75℃
2.Power consumption: 120W
3.Power voltage: 110V/220V,AC,50/60HZ
4.Applicable scope: Scan barcode ticket/Read ID card
5.Scan distance: 8~15cm
6.Offline data storing capacity: 20,000
7.Ingress Protection : IP54
8.Certificate : CE, ISO9001:2000, the design of the case is our patented product
9.Communication port: RS232,RS485,LAN
10.Control Case thickness: 2mm
11.Dimension: 520*300*1450 mm

12. G.W: 70kg

微信图片_20181213165824

Working process



Entrance

1. LED display gives word welcome

2.Voice prompt reminds driver to take a ticket,

3.Driver presses the button to get a bar code ticket in the entrance ticket machine.



4.After the driver takes the ticket, the barrier gate will open automatically, then the driver can drive his car into the parking lot.

5.When the vehicle detector cannot detect a car's coming, the control cabinet and barrier will never start working, in this case, even a man press the green button, the entrance ticket machine will never dispense a ticket.


Exit

1.LED display gives word to driver



2.The ticket should be passed to toll collector if there is charge at the exit.



3.After payment, the barrier gate will open automatically, then the driver can drive his car out of the parking lot.

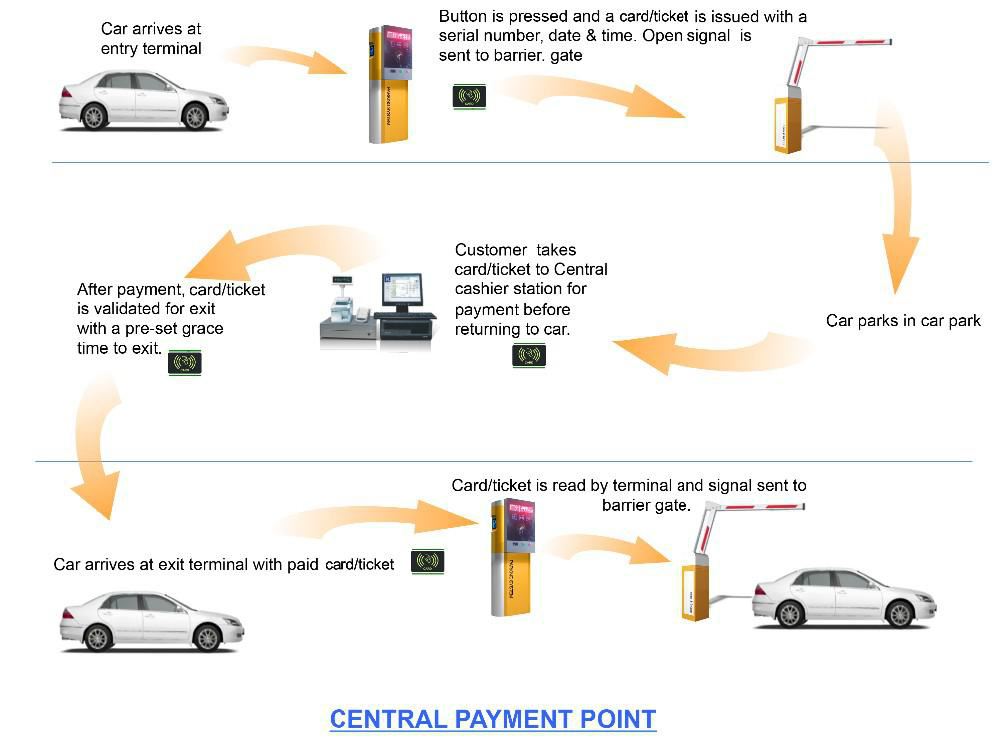

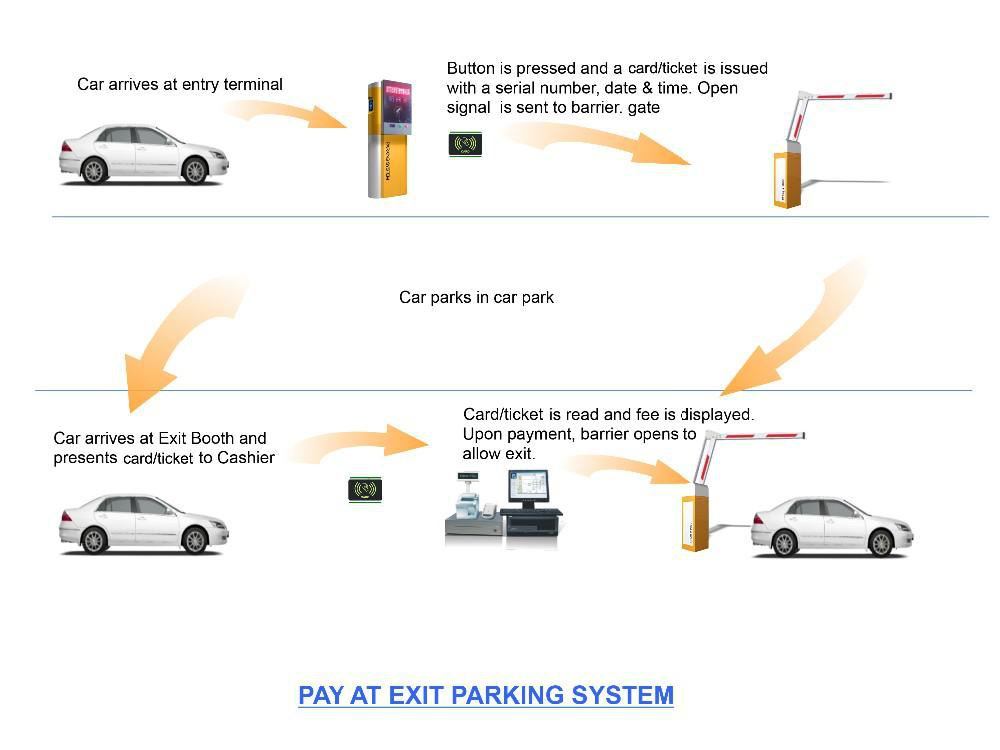

Picture illustrating the process 1) Exit payment method 2)Center payment method
