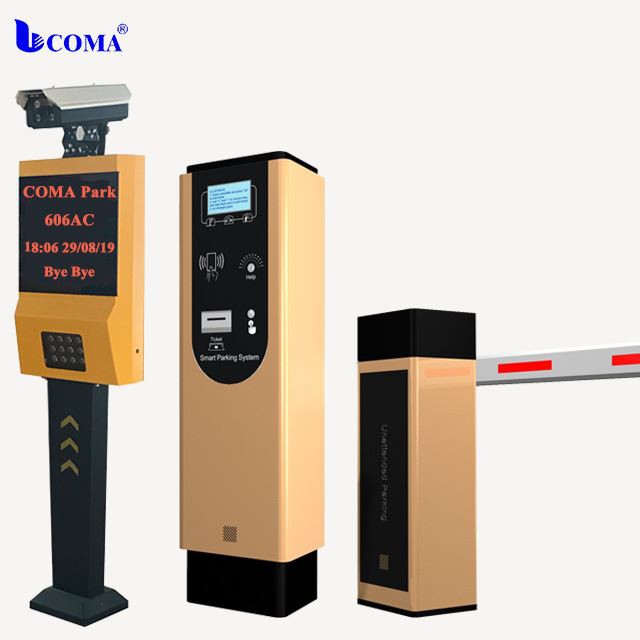

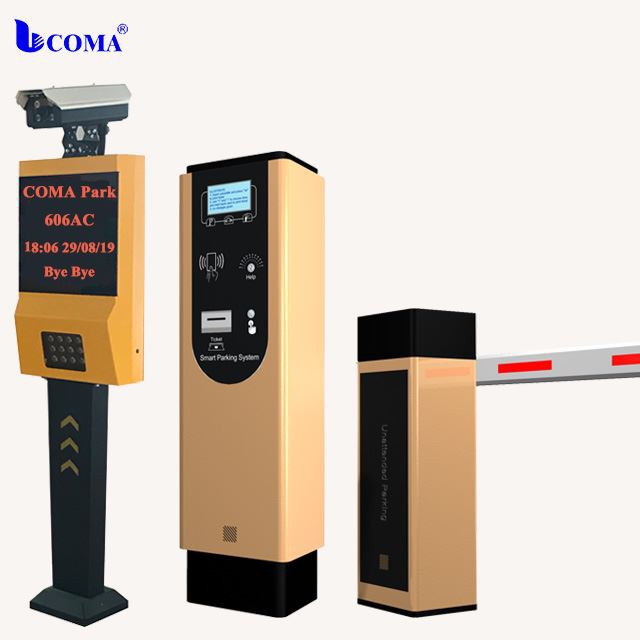

Intelligent LPR with barcode ticket parking access control system
Compared with the traditional manual charging, the intelligent parking access control system not only can implement different charging standards for different types of vehicles, but also support multiple charging methods, which greatly saves time and the owner's parking queue payment to improve parking efficiency, is also a manifestation of intelligent transportation.
The intelligent parking access control system has two different forms of self-selected short distance and long distance. The customer chooses according to the actual application situation. The image comparison function: when the vehicle exits the parking lot, the license plate recognition function automatically starts the camera and automatically stores the photos in the cloud database. Automatically identify the information when the vehicle enters and exits to open the gate. There is no conflict in the entry and exit: For the information of the entering and leaving the vehicle, all the photos of the ingested vehicles and the vehicle data will be stored in the cloud database, which can be verified later. Each picture has a time record, accurate and convenient.
How ANPR(also known as LPR) car parking system works?
Straight lane is the best type to recognize plate number. and ANPR camera can take an image of max.3.5m width. If ANPR device is installed more than 3.5m road width, vehicle guide equipment(ex.Elastic rod.signboard,etc.)should be installed.In case of installation speed bump the size of bump must be road width. If speed bump size is smaller than road width,driver would not approach straight way to avoid speed bump, then ANPR camera cannot capture clear and accurate image for recognition,then will affect the ANPR accuracy.
When the temporary vehicle enters the venue, the temporary card will be collected from the ticket issuing machine. The required fee will be paid when the ticket arrives, and it can be left after the security confirmation. The fixed owner uses the fixed card to determine the expiration date (accurately minutes, seconds). Within the confirmed time limit, you can enter and leave the vehicle at will. Otherwise, you can't enter the parking lot. The fixed card information includes the card number, car number, effective time, etc. It also has anti-smashing function.
The vehicle is directly under the gate, the ground coil detects the vehicle. Still, the system will control the falling of the gate until the vehicle is completely driven away from the sensing area, the gate will fall, the parking space automatic detection function, the parking space of the parking lot is set in the administrator computer, such as entering the parking lot.
When the vehicle reaches the number of cars, the computer alerts the administrator and displays on the electronic display that the parking space is full. And support offline operation, after the access control system is set up, you can automatically realize parking space information collection and guide screen data release without relying on the computer.
