On-street solar car parking meter for sale
Solar car parking meter is a device used to collect money in exchange for the right to park a vehicle in a particular place for a limited amount of time. Solar car parking meters can be used by municipalities as a tool for enforcing their integrated on-street parking policy, usually related to their traffic and mobility management policies, but are also used for revenue.
Solar car parking meter can generate 1)income 2)solve the shortage of urban parking spaces 3)charged parking fees can be used for parking, road reconstruction and other infrastructure investment
Power supply
The car parking meter includes electricity power supply, also the solar power panel and solar storage battery.
The solar power plays a supporting role when electricity power is off.
Advantage
• Flexible payment methods
• Remote machine diagnostics and programming
• Modular design for easy maintenance
• Alarm signal for unauthorized attempt
• Easy to Integrate with other systems
Technical data
Dimensions(H*W*D) | 1550*320*270mm |
Weight | 75-80kg, depending on configuration |
Mains operation | AC 95-265V |
Battery operation | 12VD,70Ah |
Solar operation | 16.5V,15W |
Operating temperature | -40℃- +75℃ |
Relative humidity | Up to 97% |
Speakers | Single, 4Ohm, 15W |
Display | 7"(1024*768 pixels)graphical,LCD display screen |
Alphanumerical keypad | Available |
Buttons | 4 buttons(← → √ X)/customizable |
Communication | GSM/GPRS/3G,LAN |
Card reader | Chip or magnetic card reader |
Card reader/PIN pad | EMV-certified, PCI-compliant |
Bill acceptance | Ability to accept several types of bills.Bill cannister available in different capacities |
Coin validator | Programmable coin types |
Printer | Thermal printer,issuing up to 1000 tickets per refill |
IP class | IP64 |

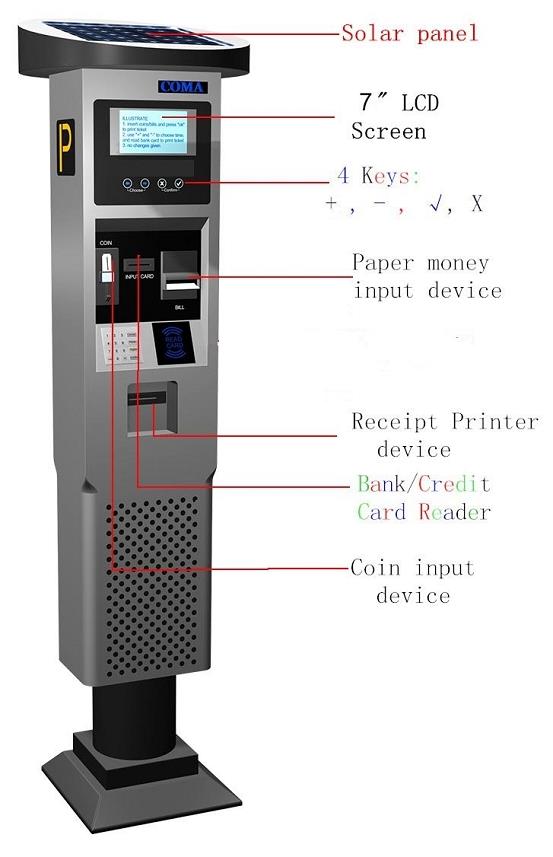

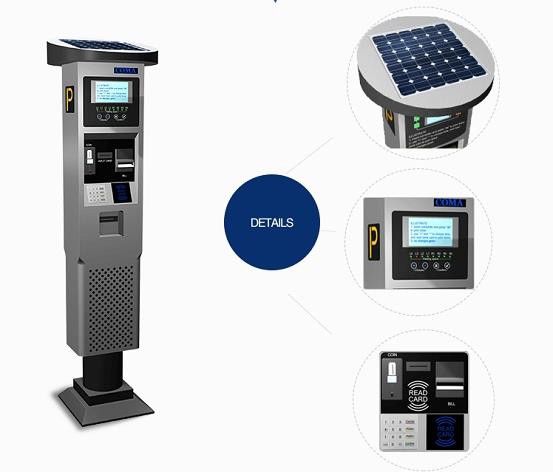

Product detail
Operation Process
1.Use the keys "+" and "-" to choose the hours you want to park,then press "√" to confirm
2.The 7.0" LCD display screen will show how much you need to pay
3.Pay as the machine 's payment methods. You can combine several payment methods to pay parking fee.
4.After payment, the machine will print a receipt .The receipt will clearly show the entry time and expiry time for parking..
5.Place the receipt face up on the dashboard of your car for patrol.
Features
Distance Control by Internet
The parking meter is connected with Internet. The administrator can control the machine in his office. He can set or change all the parameters of the machine in his computer, and get all the statistical data of the machine and all kinds of reports.
Maintenance
Each module is independent, if one module cannot work , it will not affect other modules' working. Just replace it with a new one, and the replacement is easy.
Damage Alarm
The machine has infrared sensor. When someone breaks it, it will immediately alarm loudly, and give an alarm signal to management center.
Malfunction Alarm
The machine can do self-test / self-checking. When one module cannot work, it will send malfunction alarm to administration center,and the administrator can know which module cannot work.
