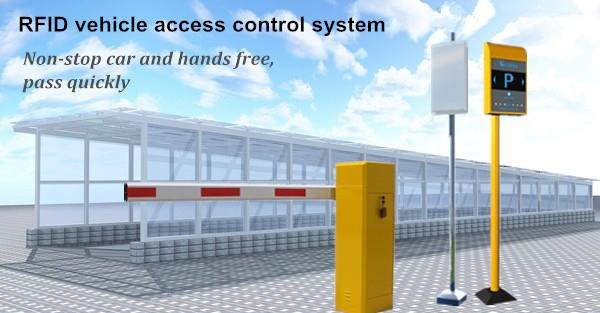

RFID Parking management access control system
With the development of automatic identification technology, RFID access control management system has become a major component of security systems, widely used in industrial automation, commercial automation, transportation control management and many other fields. The access control system based on radio frequency identification technology is the development direction of the future access control system construction.

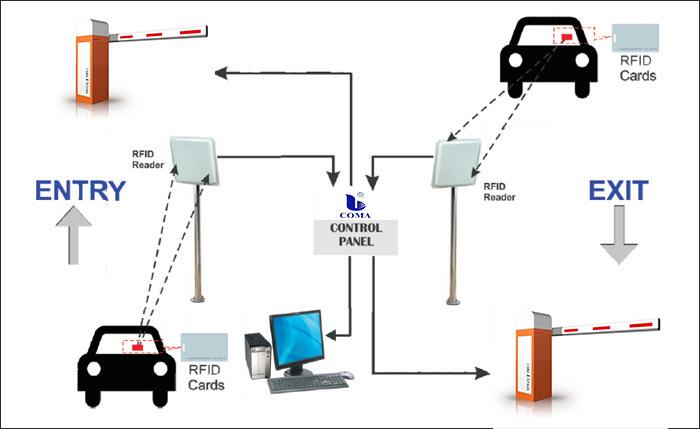

The RFID access control management system consists of an access control machine (integrated with a reader/writer, a controller), an identification card, a computer, and an electromagnetic lock. Generally, the form of the access control system is divided into two types. One is that when the employee passes the access control system, the card (RFID electronic tag) worn on the body is aimed at the infrared rays of the access control machine, and the door is automatically opened.
The other is RFID UHF remote access control system. By installing UHF readers and ultra-high frequency electronic tags worn by employees, the door can be opened and closed, and the identification card is read.
It is completely intelligent and automatic, saving time by no need for workers to operate. The cost of the second type of RFID access control system is relatively high, and the choice of these two forms depends on the specific needs of the enterprise.
Technical parameter
Working mode: optical excitation positioning, CDMA Bluetooth communication, Sleep wake-up
Power: DC12V~18V 4A
Adapter: AC110~220V/DC +12V
Bluetooth power: 12W
Operation frequency: 433MHZ
Infrared frequency: 38KHZ
Card reader angle:80°
Reader maximum distance 1-20 meters
RFID protocol: CDMA
Interface type: Weigand 26/34 RS232/485
Storage temperature: -45°C~+95°C
Operating temperature: -30°C~+75°C
Humidity: 95% max.

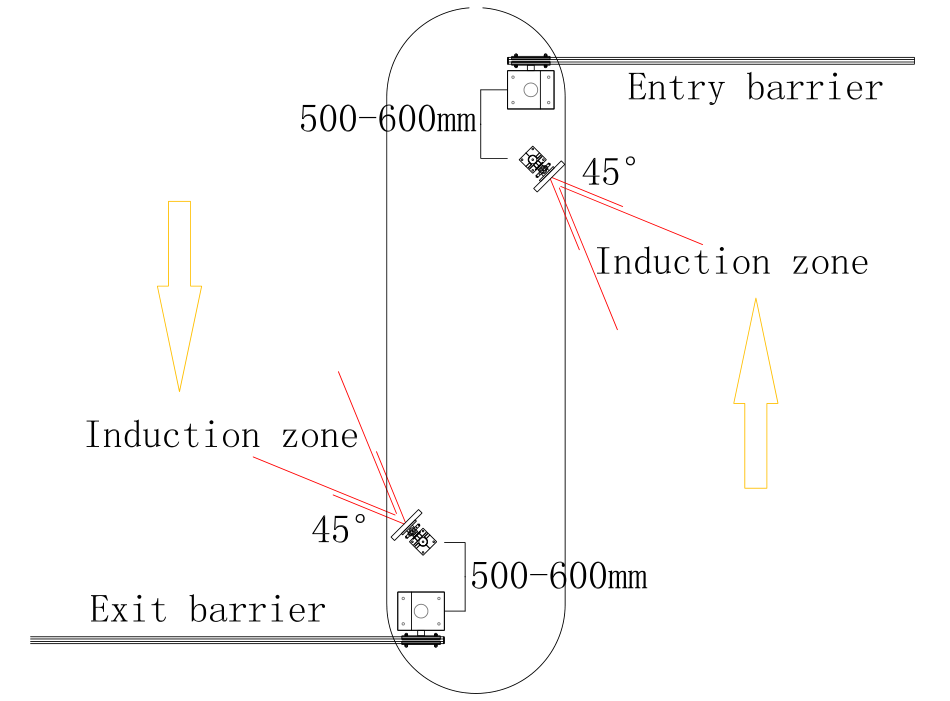

Card reader Installation instruction
1. 500-600mm away from the barrier to card reader
2.45 degree angle between card reader and safety island, the reading distance can be adjusted based on the field.
3.one communication cable (RVVP5*0.75) is used between long range card reader to the control device ; the power supply should be installed in the control device.
