Long distance range RFID reader with barrier gate
System Introduction:
RFID tag long range parking system is mostly used for drivers who park their cars here for long-term. Drivers stick the tags on their vehicle’ s windshield.

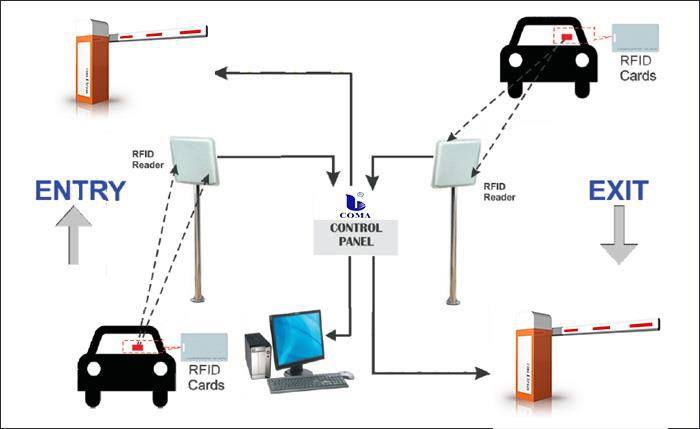

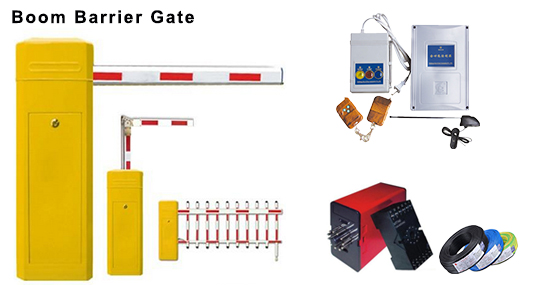

When approach to the entrance gate, the RFID reader will read the tag then transfer information to control system.then,the boom barrier gate will open automatically. It is the same process at exit.
It is more convenient for people to enter and get out of the parking lot. In cold weather or rainy days, no need to roll down window to take ticket
One car with one card. drivers can not use two cars with one card, avoid loss for parking lot owner.

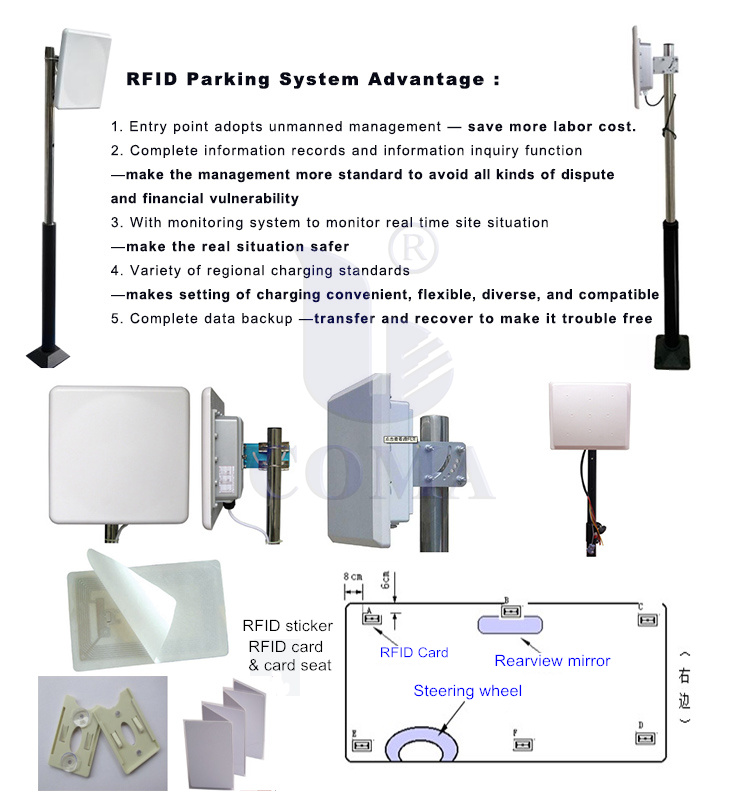

1. The RFID sticker can be directly attached to the windshield ; The card type should be with card seat to fixed in windshield.
2. In generally, RFID card installed in the above six locations; priority by A-F, from the metal frame 3cm or more;
3. If the windshield is a metal film or a plated film, select C;
Parameter
| Model | RFID-LONG RANGE ACCESS CONTROL SYSTEM |
| Readable distance of RFID card | Max 20m, Related to antenna and tag performance |
| Power Rated | 5W |
| Powder Supply | 110V/220V |
| Working frequency | 433MHZ/902-928MHZ |
| Available form of reading | RFID card/Bluetooth Card |
| Operate mode | Active mode, passive mode, trigger mode |
| Port | RS232,weigand26/34 |
| Surface treatment | Imported baking finish |
| Dimension | 235mm×235mm×57mm |
| Working temperature | -30-+75°C |
