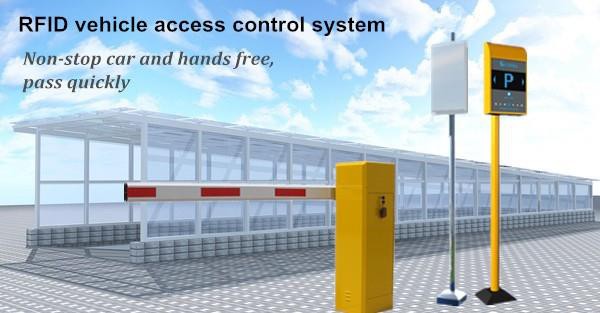

RFID Bluetooth parking management system
Production introduction
COMA manufacture automated car parking & access control equipment and provide solution for car access control. The company has more than 20 years experience in the industry of car parking and car access control. With R&D team composed of hardware, software and firmware engineers, COMA is capable to provide flexible product customization service to customers, to confront ever-changing market demands.
RFID operation video
RFID Bluetooth parking system Parameter
| Reading distance | 3-30m(adjustable),60degree directional reading |
| Working module | Optical excitation positioning, CDMA blue tooth communication, sleep wake-up |
| Working power | DC12V-18V |
| 4A adapter | AC110-220V/DC +12V |
| Blue tooth power | 12W |
| Working frequency | 433MHZ |
| Infrared frequency | 38KHZ |
| Reading angle | 60 degree |
| Reading card max.distance | 40M |
| Tag agreement | CDMA |
| Interface type | Weigand 26/34 RS232/485 |
| Storage temperature | -45℃- +95℃ |
| Working temperature | -30℃- +75℃ |
| Relative humidity | Max.95% |
Advantage
1. 60 degree card reading Angle: widely used in different occasions, no interference card reading problem.
2. Strong penetration: it can penetrate the 15m reading of the explosion-proof membrane and achieve 100% accessibility.
3. High stability: adapt to different environments, not affected by bad weather.
4. Simple installation without software

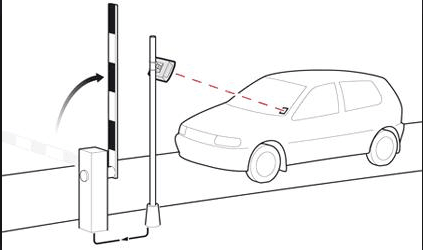

Solution
A. Fix the metal tag in the car plate.
B. Open window and swing card. Driver can open the window and swing the card at the distance around 2m from the card reader, or driver can slowly move forward at the distance of 5m and simultaneously reach the card out of window for reading.
C. Cut film. Cut film for the tag, with a reserved space of 3cm around the tag.
Packing Method
