Parking will be more smart and powerful when it meets ANPR camera
Using advance OCR technology to scan and recognize license plate, parking management enters ticketless period

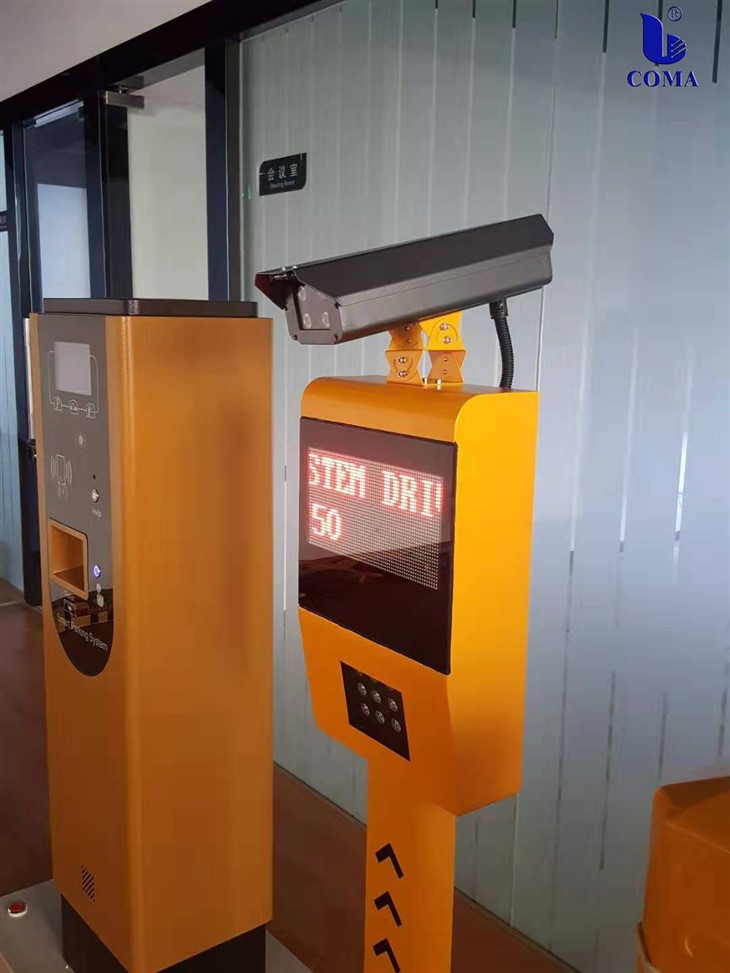

It works LED display and can control parking barrier gate directly at entrance and exit.
ANPR PARKING can work with ticket system, also support to work with parking payment machine
Using mobile payment, can achieve unattendant parking management
Technical Parameters:
|
Types |
Item |
parameter |
|
Intelligent Recognition |
Accuracy |
≥95% |
|
Front inspection |
Support for front detection |
|
|
Identify license plate type |
Over 120 countries and regions |
|
|
Video input |
sensor type |
CMOS |
|
Lens and focal length |
Zoom 2.8~12mm |
|
|
Exposure time |
1/100～1/10000s |
|
|
Video output |
Image size |
1080P，720P，4CIF，CIF |
|
Compression standard |
H.264/JPEG |
|
|
Compressed output bit rate |
384Kbps～4Mbps |
|
|
Maximum frame rate |
Main stream 25FPS, sub-stream 25FPS |
|
|
Image setting |
Adjustable shutter, gain, brightness, etc. |
|
|
Functions |
Capture trigger type |
Video, coil, video + coil |
|
False license plate |
Support for false license plate detection |
|
|
Built-in fill light |
Built-in LED fill light, adjustable brightness |
|
|
Output information |
license plate small picture, license plate number |
|
|
OSD information overlay |
Support, can define time, location, license plate, etc. In English |
|
|
One-button reset |
Short press 2 seconds to restore the default IP, username and password Press and hold for 10 seconds to restore the default IP, username and password, factory configuration |
|
|
Whitelist function |
Support whitelist import and export functions(* with system support) |
|
|
Main and auxiliary mode |
Support main and auxiliary camera mode |
|
|
Offline charge |
Support offline charging function |
|
|
External interface |
Net work |
1 RJ45 100M adaptive network interface |
|
communication |
2 RS485 interfaces |
|
|
power supply |
1 AC 220V voltage interface |
|
|
Input |
2-way switch input interface |
|
|
Output |
2-way switch output interface (relay) |
|
|
Reset |
1 reset button interface |
|
|
storage |
1 TF card interface |
|
|
USB |
1 standard A type USB interface |
|
|
working environment |
Total power |
Turn off the light <4W, turn on the light <5W |
|
Working temperature and humidity |
-30 to +75 degrees, <95% (no condensation) |
|
|
Protection level |
IP65 |
|
|
Appearance |
Size(mm) |
443×146×105 |
|
Weight（Kg） |
1.8 |
COMA PARKING provides various parking solutions for oveasea parking projects
