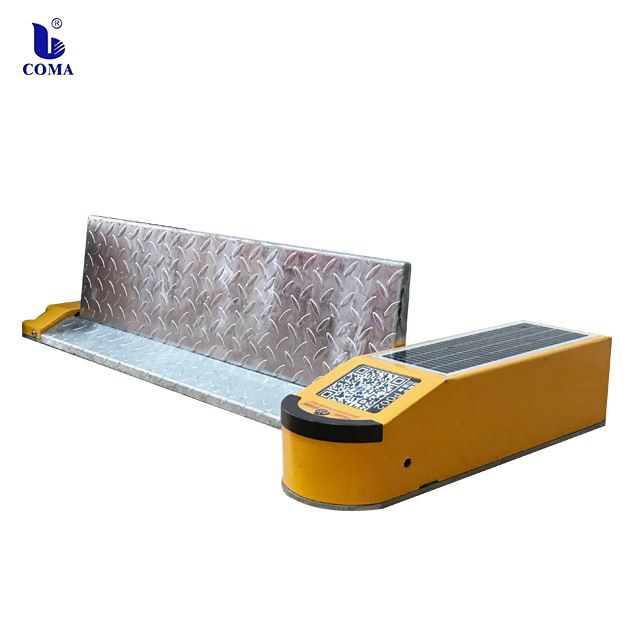

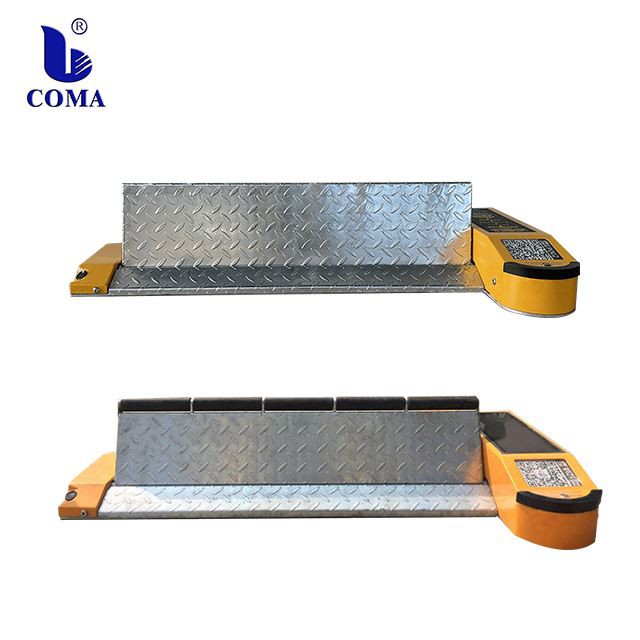

Modern Safe Flap Unit Car Parking Space Lock Parking Flap Lock
Parking Flap: After parking a car on these types of parking lots, a flap will rise to hold the car. When the flap rises, the time counter will start. The payment for the parking fee will be at the fare adjustment machine. For payment, enter the number of your parking spot, then press the button for confirmation, followed by the payment button. Move the car only after making sure the flap has gone down.
Specifications:
Power Voltage (V) 220VAC
Power Rated 60W
Working current 500mA
Lifting Height 210MM
Rising Time 5S
Net Weight 55KG
Packaging carton
Gross Weight 74KG
Competitive advantage:
SAFETY
1.Using the perception of the car's underbody position to control the lock, during the rising process of the plate, it has the anti-pressure device.The plate will automatically rise after the tire leaves.
2.The down strength is light when the plate is landing down, so it can prevent the accident of extrusion, and it has the power-off function due to a timeout.
3.The safety is based on that the plate's up and down can be controlled.
DURABILITY
1.Movement is using low power motor driving,lightweight design
2.Low power, motor running time is short, long life
RELIABILITY
Using RS485 commnunication to control the status of the auto flap parking lock, including checking fault detection
FUNCTION
Automatically lock the vehicle
PRODUCT METERIAL:
Body is made of steel, and the thickness of steel is above 4 mm, with electro-chemical surface treatment. The cover of the parking lock uses paint-drying material for outdoors. So it is suitable for long-term outdoor use with good durability.
