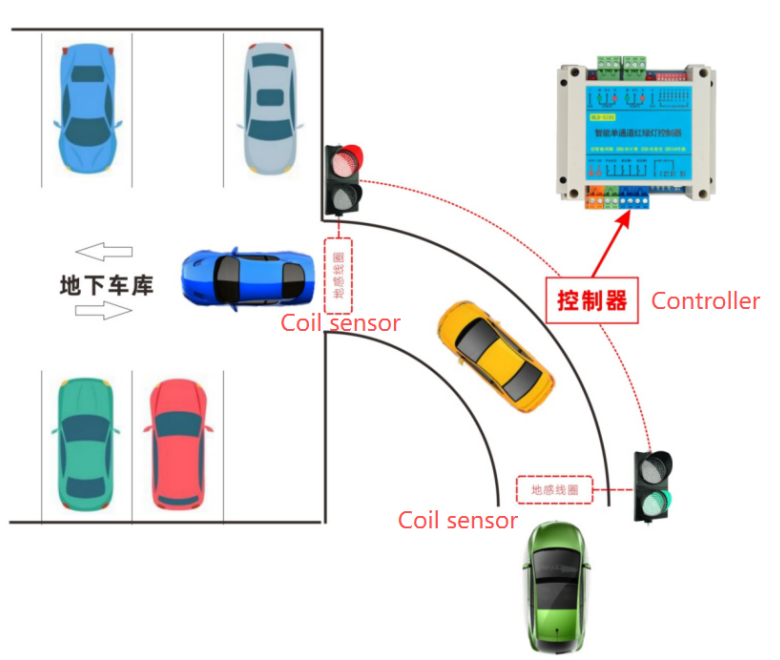

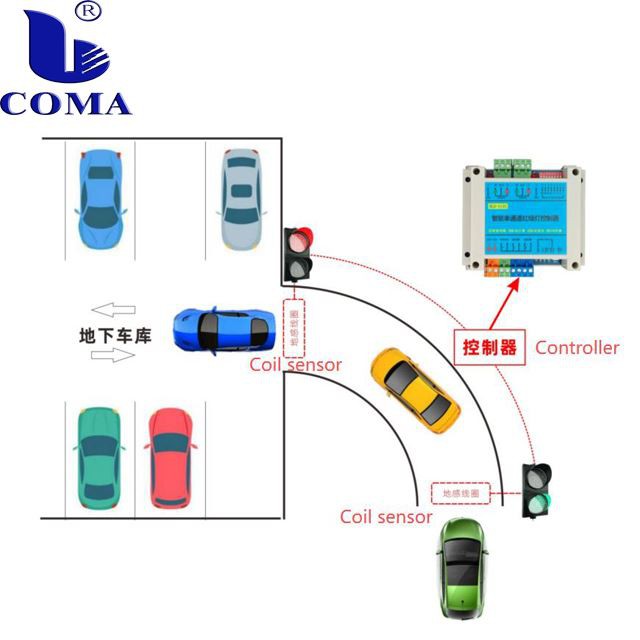

Single lane traffic light control system is widely used in narrow, single-lane locations requiring two-way traffic where traffic cannot be seen from either end, such as underground garage entrances and exits, railway culverts, mountain trails, and underground mine tunnels. It enables alternating traffic flow, effectively preventing on coming traffic and preventing congestion.

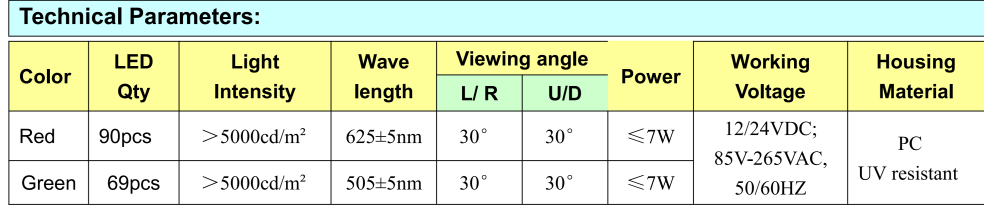

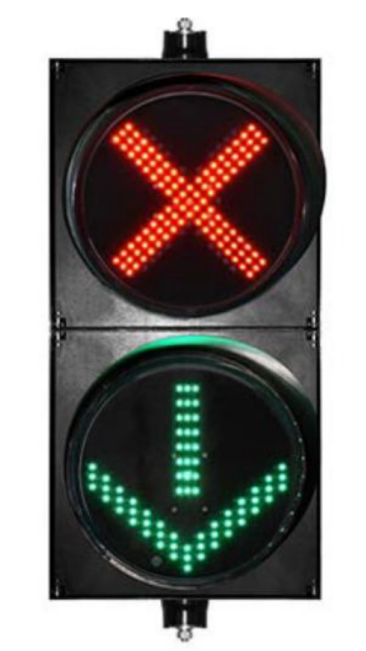

Install traffic light at both end for driver, stop while red light on, go wheile green light on.

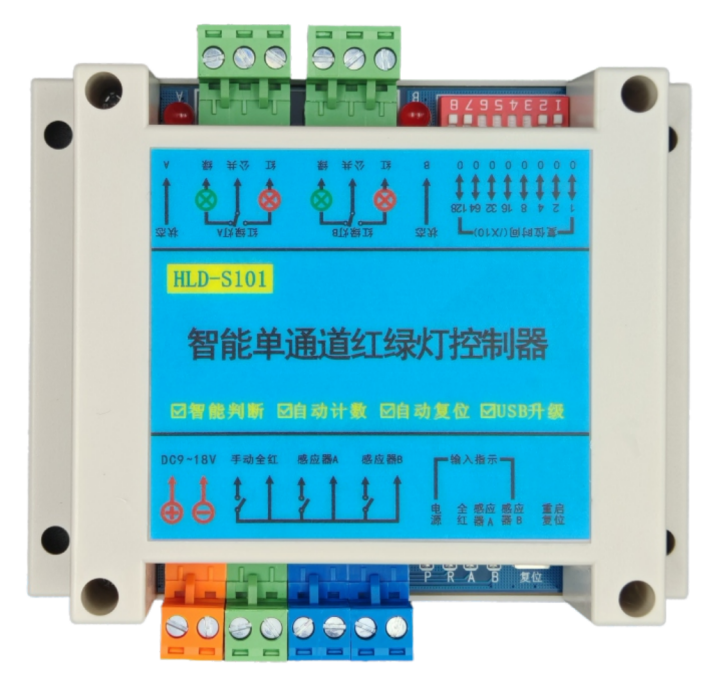

Install controller to control 2 sets traffic light
Model No.:HLD-S101
Dimension: 115*110*40mm
Power suply:12V DC
Support two ways input from photocell or loop sensor or Radar
Support two ways output to control 2 sets traffic light 12V DC or 220V AC
Rated Power:10W
Working Temperature: -20℃~50℃
Gross Weight 100g
Install trigger sensor to detect vehicle,can use photocell, radar, loop sensor etc

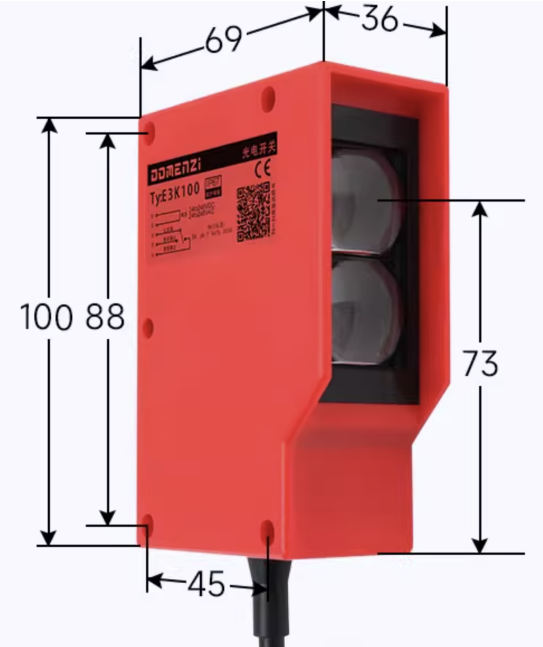

Photocell for single lane traffic system(Easy to install,mound on the wall)
Model No.: E3K-100-7M
Power suply:220V AC
Support Relay one way output
Rated Power:15W
Working Temperature: -20℃~50℃
Gross Weight 80g
Detect distance: max 7 meters(adjustable)
Loop Detector and coils(need to cut ground to place coils into)
|
Specification |
|
|
Model |
CMJ-011 |
|
Working voltage: |
AC 220V/110V±10% 50HZ/60HZ |
|
Rated power |
4.5W |
|
Frequency: |
20~170KHZ |
|
Response time: |
10ms |
|
Sensitivity: |
three level sensitivity adjustable by manual (Low/midi mum/high) |
|
Environment Compensation: |
Automatic Drift Compensation technology avoids wrong detection caused by environmental temperature change. |
|
Ground induction coil: |
80uH-――300uH |
|
Storage temperature: |
-40℃-85℃ |
|
Working temperature: |
-20℃-65℃ |
|
Humidity: |
10%～95% |
|
Dimension |
78(L)×40(W)×108(H)mm (includes base) |
|
Coils size |
Total 50meters, 0.75mm2 |

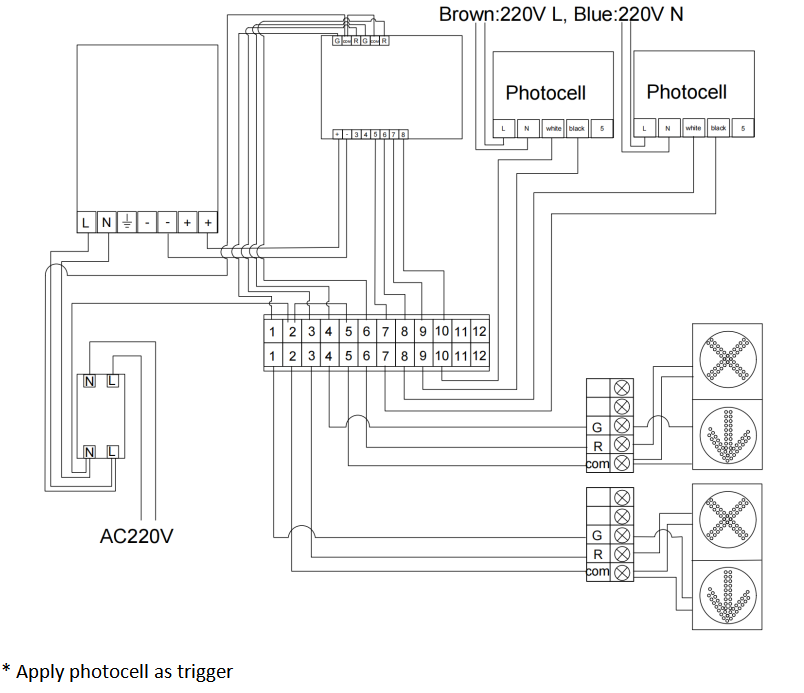

Wiring diagram for one pairs traffic light
