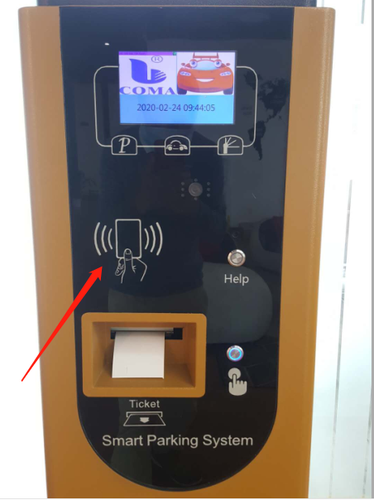

The parking ticket machine is a self-service device used in parking lots. It is usually installed at the entrance of the parking lot to facilitate car owners to collect tickets by themselves. Car owners can obtain parking tickets by operating the buttons on the ticket machine. The ticket machine can record information such as the time when the vehicle enters the parking lot, thereby improving the management efficiency of the parking lot.
Features:
Fast ticket issuance:
When the vehicle enters the parking lot, the driver only needs to touch the button on the ticket machine, and the ticket machine can issue the ticket quickly. The whole process takes only 2 seconds, which greatly shortens the waiting time of the vehicle and improves the traffic efficiency.
Accurate information:
The ticket machine can accurately record the vehicle's entry time, license plate number and other information, and print this information clearly on the ticket. This not only provides reliable data support for the management of the parking lot, but also facilitates car owners to understand the parking situation of the vehicle at any time.
User-Friendly LCD screen and voice prompt
The controller can be equipped with LCD/LED screen on which" welcome", "bye bye" and your company logo, time info are simply and friendly shown. Voice prompt gives a warm-hearted welcome and operation guide to parkers.
High Capacity Ticket Box
High capacity of 2,000 to 2,500 tickets makes it unnecessary to change paper in the ticket box frequently. Ticket box can also dispense tickets quickly and steadily.

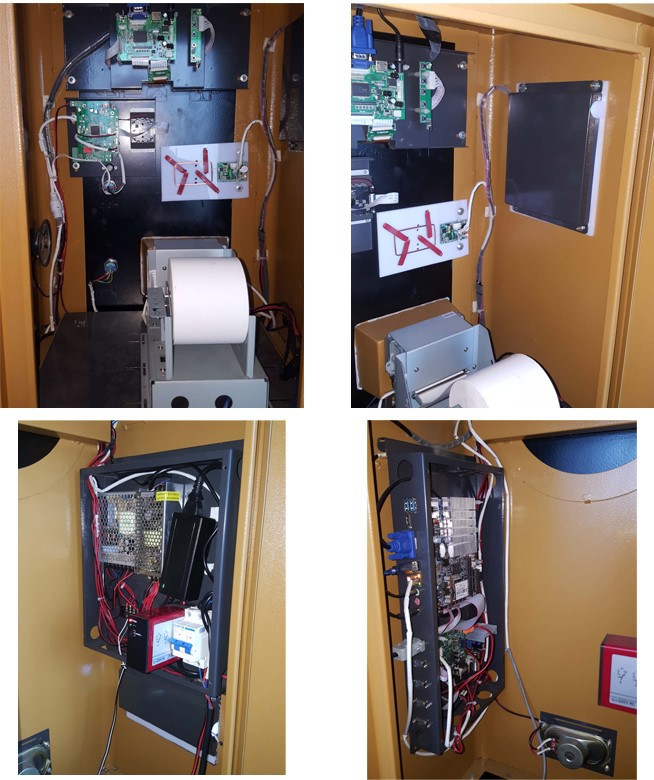

Latest module design
Lack Paper Reminding
When ticket is going to run out, management system will receive a alert message to remind to change paper roll, which is a humanized design.
Season parkers leave by swiping card
Season parkers leave by self-service swiping their cards on exit station, which reduces your labor cost.
Intelligent management:
This ticket machine is closely connected with the parking lot management system, and can upload vehicle information in real time to realize intelligent management. Managers can understand the operation of the parking lot at any time through the system, and make adjustments and decisions in time.
|
Specification CMK802 |
|
|
Power supply |
AC 110/220V±10%, 50/60HZ, Max.1.5A |
|
Environmental temperature: |
-20℃- +50℃ |
|
Humidity: |
10%～95% |
|
Ticket type: |
Barcode |
|
Ticket size: |
80mm(W) |
|
Capacity: |
2,000-2,500 pcs. (diameter150mm) per roll |
|
Ticket Cutter: |
high strength, free maintenance |
|
Ticket dispensing time: |
<1s |
|
Card reader Interface: |
Rs 232 interface |
|
Card Reader type: |
ID/IC card |
|
Card reading and verifying time |
<1s |
|
Reading range: |
0-8cm |
|
LCD Display: |
7 inch TFT resolution 800×480 Brightness: 400 cd/㎡ Contrast: 500:1 |
|
Intelligent Control Unit: |
J1900 4-cores, 2.0G |
|
Rs232×5 no.s |
|
|
Multi Relay output |
|
|
HDMI×1 |
|
|
USB×4 |
|
|
Audio output×1 |
|
|
Dimension (mm) |
410*320*1470 |
|
Net weight: (KG) |
45 |
|
Gross weight: (KG) |
55 |
Common faults and solutions of parking ticket machines:
1. Ticket issuance is not smooth: Check whether the ticket paper is used up or stuck, clear the blockage and replenish the ticket paper.
2. Touch screen failure: Check for stains, clean the touch screen or contact maintenance personnel.
3. System failure: Try to restart the device. If it cannot be solved, professional maintenance is required.
