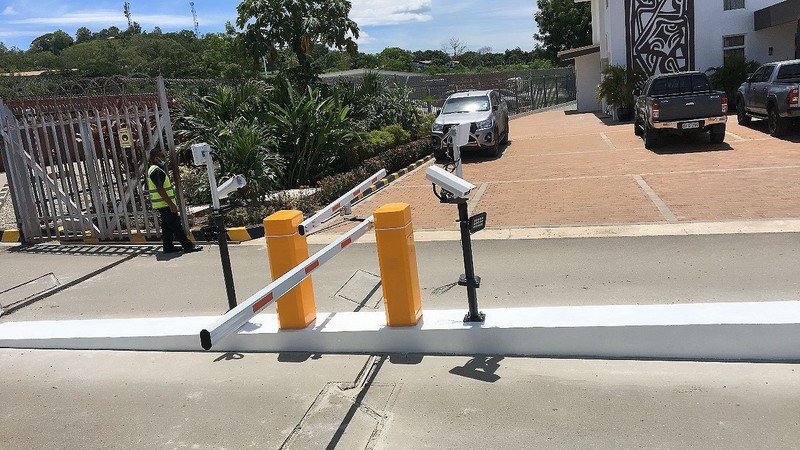

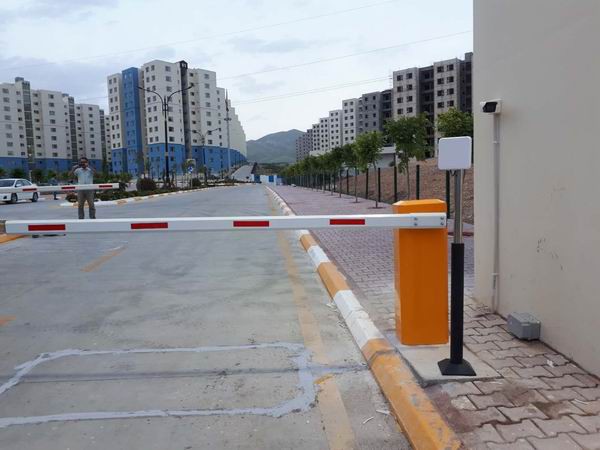

Hands-free & automated RFID parking management system is ideal for parking lots, garages, campuses, gated communities and other vehicle control areas, this system functions by automatically opening gates and barriers exclusively for permit holders without the need for remote controls and regardless of weather conditions. The system is mainly composed of RFID electronic tags, readers and writers, and background management software. When a vehicle is equipped with an RFID electronic tag, the reader automatically identifies the tag information when the vehicle enters the parking lot, enabling fast passage without stopping to pick up the card.
|
Reading distance |
3-30m(adjustable) |
|
Working module |
Optical excitation positioning, CDMA blue |
|
tooth communication, sleep wake-up |
|
|
Working power |
DC12V-18V |
|
4A adapter |
AC110-220V/DC +12V |
|
Blue tooth power |
12W |
|
Working frequency |
433MHZ |
|
Reading angle |
360 degree |
|
Reading card max.distance |
40M |
|
Tag agreement |
CDMA |
|
Interface type |
Weigand 26/34 RS232/485,Relay |
|
Storage temperature |
-45℃- +95℃ |
|
Working temperature |
-30℃- +75℃ |
|
Relative humidity |
Max.95% |
|
Dimension of reader |
243*236*45mm(classic one) |
Advantage and feature:
It is 2nd generation long range RFID system
2. 360 degree card reading angle: Widely used in different places.
3. Strong penetrate capacity:it can penetrate the anti-explosion film from 25 meters, 100% realization of 100% accessibility.
4.High stability: It can adapt to different environments, not affected by bad weather. 5.Easy installation,can work solely to control the barrier gate or with the support of parking management system(can check the parking info,need to deploy the server computer which install parking system with database.
The RFID parking management system is efficient, accurate and convenient, which can effectively improve the operation efficiency and management level of parking lots, reduce manual operations and reduce management costs. In addition, it has good scalability and compatibility, and can be integrated with other intelligent systems to further enhance the intelligence of parking lots.
