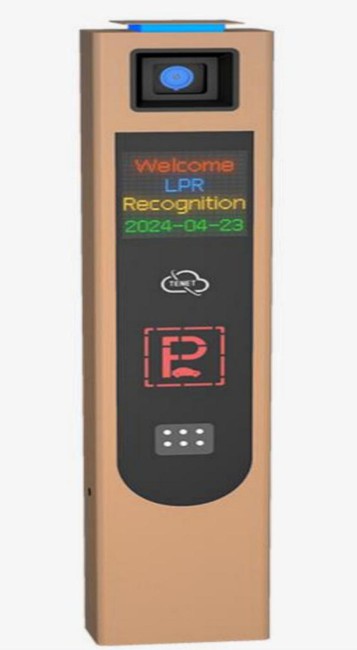

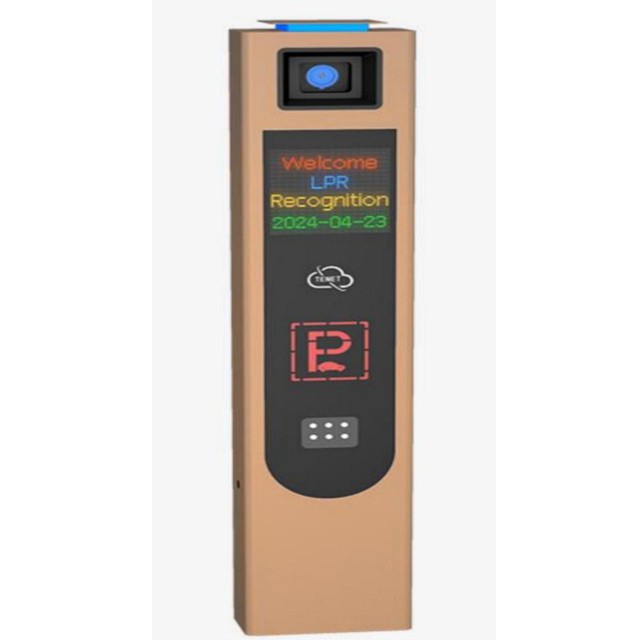

The CMR-2028 LPR ANPR control machine incorporates the latest license plate recognition technology, featuring voice broadcasting, LED display, and other functions. Equipped with a 3-million-pixel high-definition camera, it ensures accurate recognition of license plates in various environmental conditions. The LED display screen, with four lines of full-color display, alternates between content seamlessly. It supports digital voice synchronization for broadcasting relevant information.
Main Function:
1. Integrated with license plate recognition cameras, capable of automatically recognizing passing vehicles within 3-6 meters.
2. Capable of displaying and vocally broadcasting license plate numbers and other prompt messages.

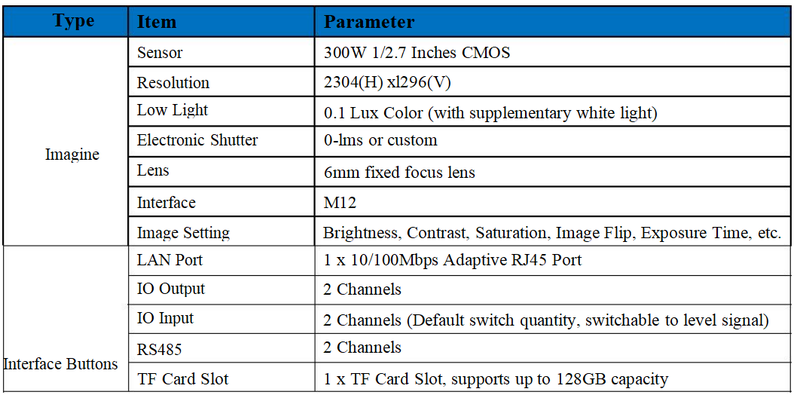

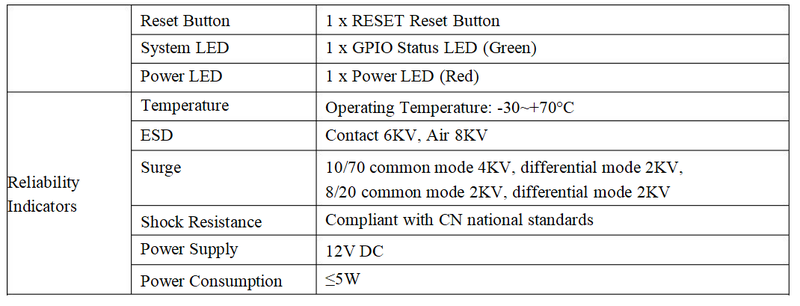

Technical Parameter:

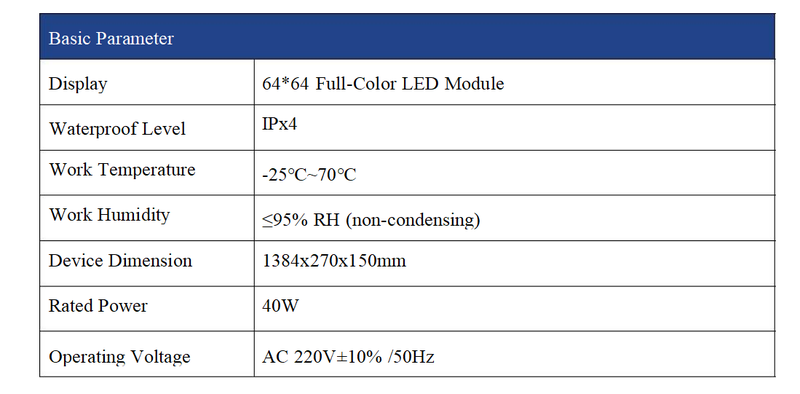

Specifications:
Installation Steps
The camera is factory-configured with focus, parameter settings, and line drawing. Users only need to perform simple angle adjustments on-site. The method is to place a reference object approximately 5 meters away from the camera (in the center of the lane, within a lane width of 4 meters). Align the centerline of the camera with the reference object (as shown in Figure 2.2.1).
Figure 2.2.1

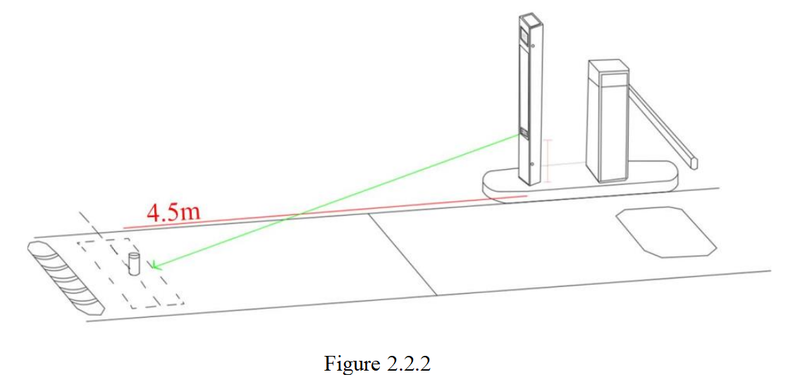

The position of the supplementary light illumination is approximately 4.5 meters away from the camera (in the center of the lane, within a lane width of 4 meters). Place a reference object at this distance and align the center of the light column of the
supplementary light with a point 1 meter in front of the reference object. It is advisable to avoid direct illumination of the license plate by the light (as shown in Figure 2.2.2).
