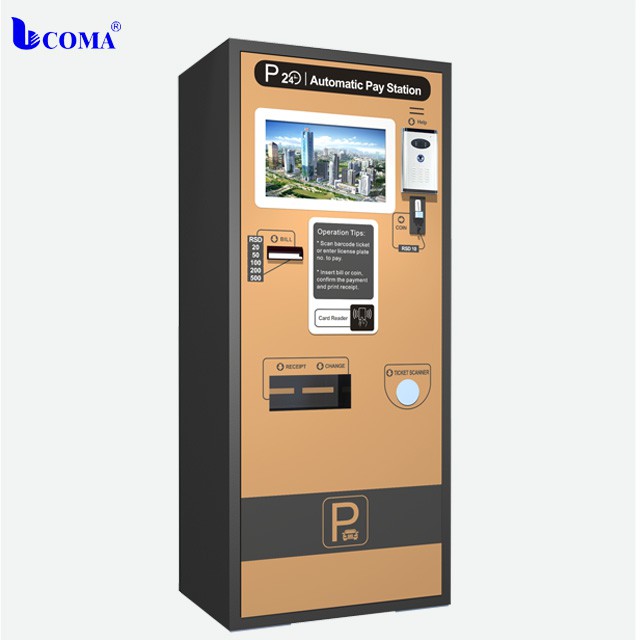

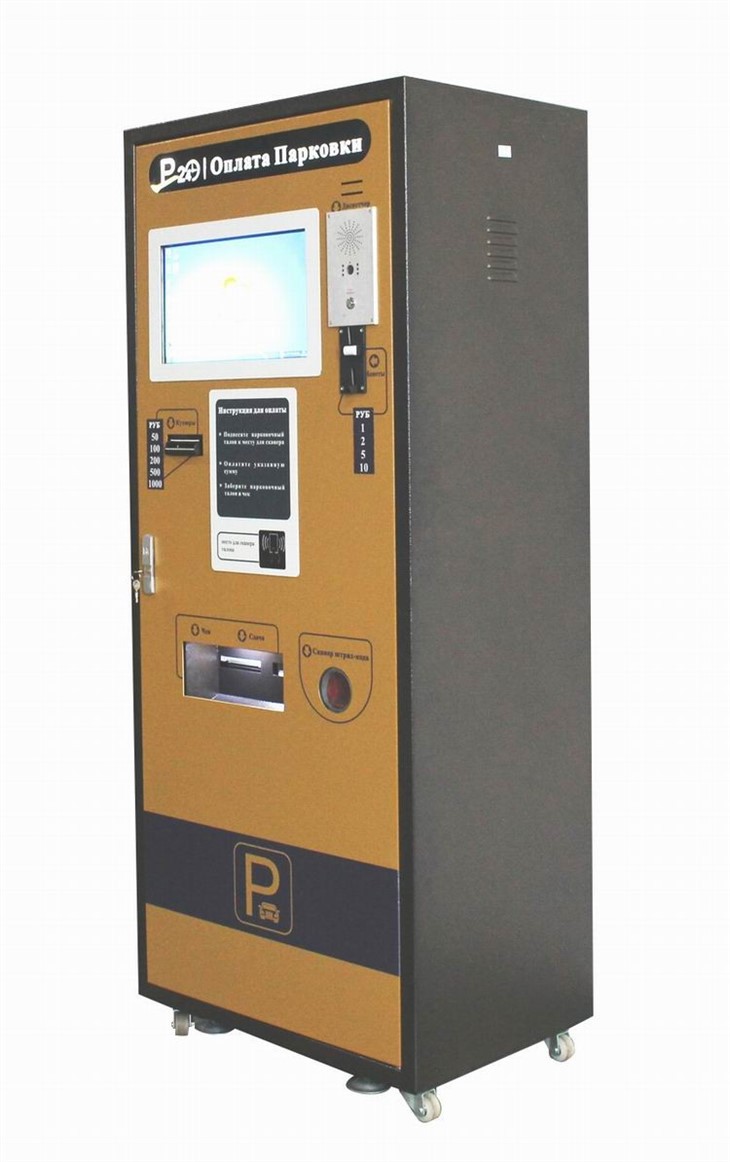

COMA parking payment machine for shopping mall also airport and railway parking

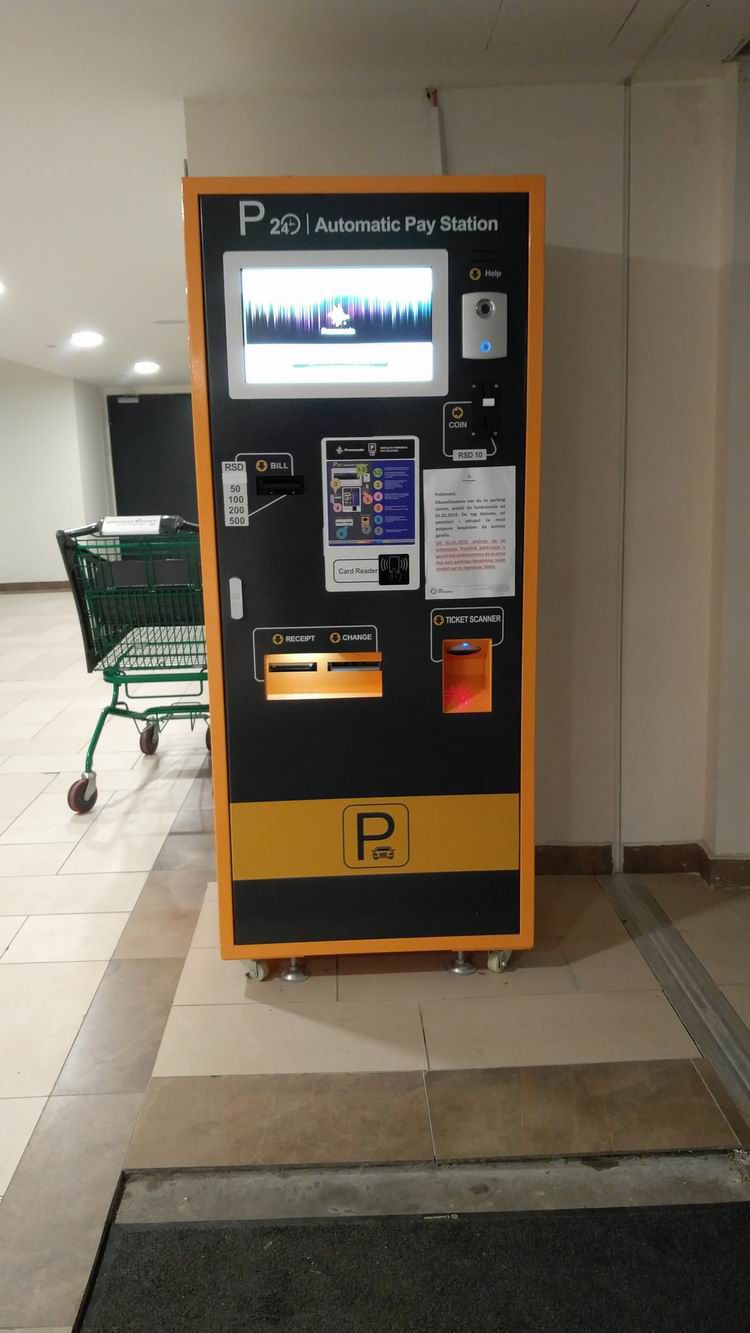

APS (Automatic Pay Station) is an automatic payment terminal which is part of parking management system. It supports multi payment method saying bill, coin, bank card (optional), T & G reader (optional) and local transportation card (optional), reads either parking barcode ticket or proximity card or even parkers can input number plate on touchscreen. Parkers can get receipt from this APS. The APS is user friendly and easy-to-use for parkers, can effectively promote the vehicle circulation, achieve unmanned intelligent charge, reduce human cost and improve property management. It is especially suitable for large scale of parking lots.
Features:
Unattended parking lot: parker can make payment and print receipt by themselves.
Multi payment method: support bill & coin, bank card reader reader (optional), T& G reader (optional) and local transportation card (optional)
Variety of Currency: accept over 120 countries and regions bills and coins.
Multi Charging Mode: support to read parking card,scan barcode ticket,input license plate number

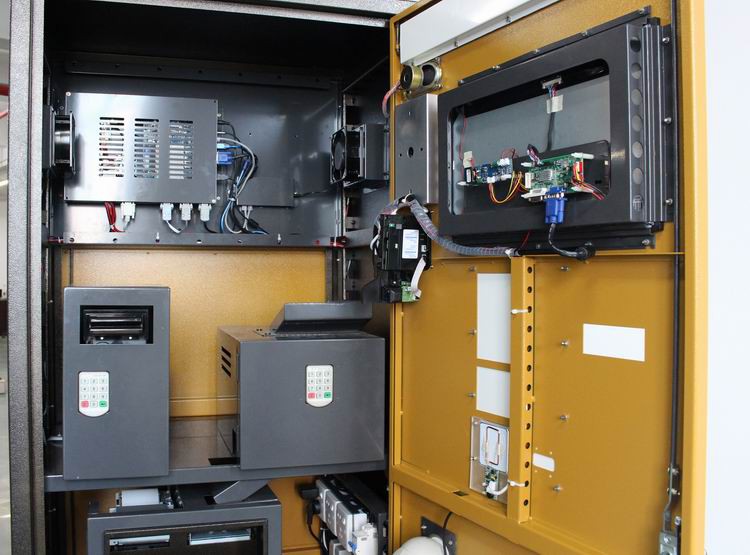

Module design: neat and elegant inner structure, come with intercom and UPS power supply will be more friendly.
Humanized design: management software can receive notification if paper or change is running out, if cash box is almost full.
Expansibility: can integrate into existing parking system with the C#SDK we provide.
|
Model |
|
CMZ-8001 |
|
|
System |
Processor |
J1900 4-cores, 2.0G |
|
|
Operating system |
Windows 7/10 |
||
|
Input/output |
Receipt printing |
USB interface; Thermal printing, auto-cut no-enough-paper alarm, Print span: 80 mm; Paper roll diameter: 150 mm |
|
|
Barcode scanner |
Honeywell brand, barcode scanning, laser net scanning (USB interface) |
||
|
Audio output |
1 |
||
|
Touch screen |
18.5-inch LCD; Accurate location without drifting |
||
|
Interface |
RS-232 serial interface |
6 |
|
|
USB interface |
4 |
||
|
VGA interface |
1 |
||
|
HDMI |
1 |
||
|
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
||
|
Function |
SSD capacity |
128 G
|
|
|
Display |
Response time: 14 ms; Max. resolution: 1366 × 768, 32 Bit; Brightness: 1000cd/㎡ Contrast: 1000:1; |
||
|
Upload |
The data can be uploaded to the central platform. |
||
|
Bank note identification |
Cashbox containable with notes of multiple currency value; Precise identification of the currency value |
||
|
Bank note changes returning |
1 to 2 cashboxes can be selected; Changes with up to 2 kinds of currency value can be returned; Self-checking function can prevent from returning overmuch notes and note jam caused by damp; |
||
|
Coin receiving |
Coins of multiple currency value receivable (optional） |
||
|
Coin changes returning |
Coins of multiple currency value returnable (optional） |
||
|
Safety |
|
|
|
|
Safe and Coded lock |
For password configuration, guaranteeing safe cash receiving and returning of notes and coins; |
||
|
Visual intercom |
optional |
||
|
General |
Power supply |
220V±10%, 50-60Hz |
|
|
UPS |
can provide power about 5minutes after power failure |
||
|
Speaker |
1 no. |
||
|
Consumption |
≤ 250W |
||
|
Mechanical characteristics |

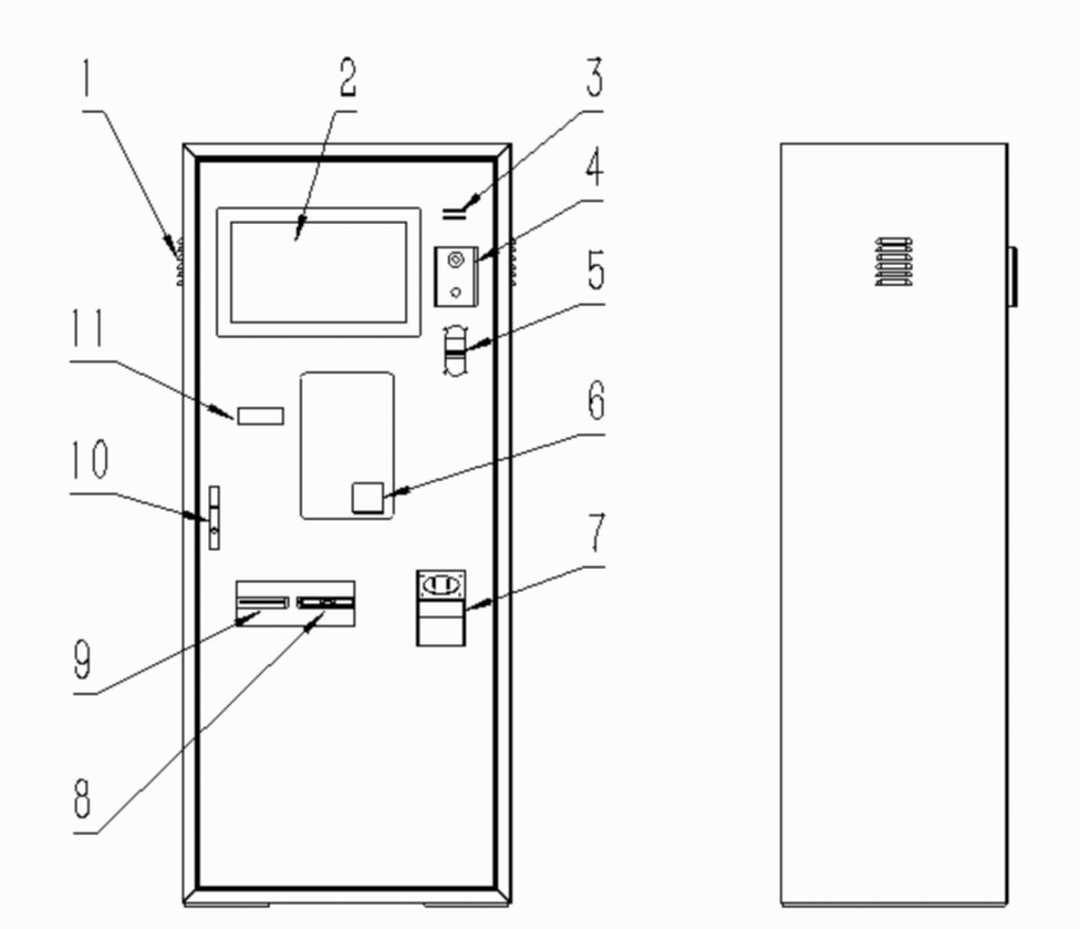

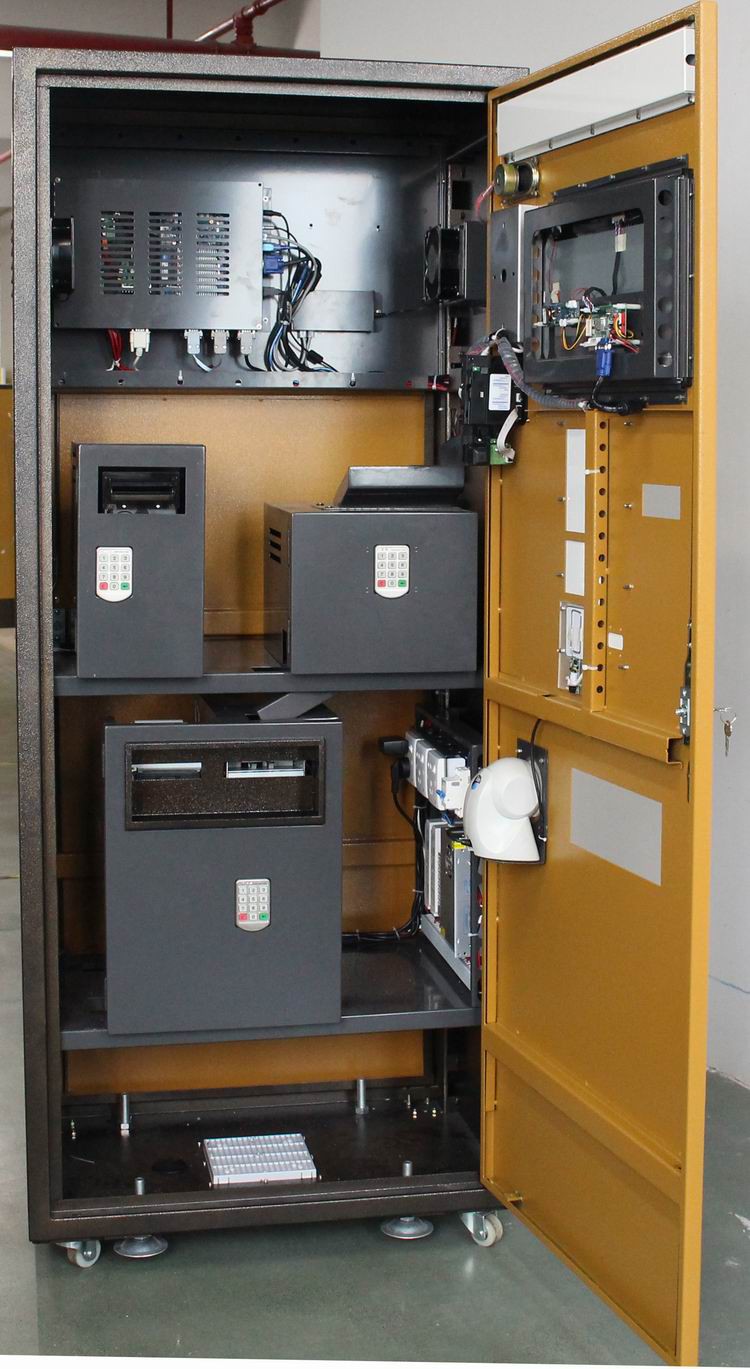

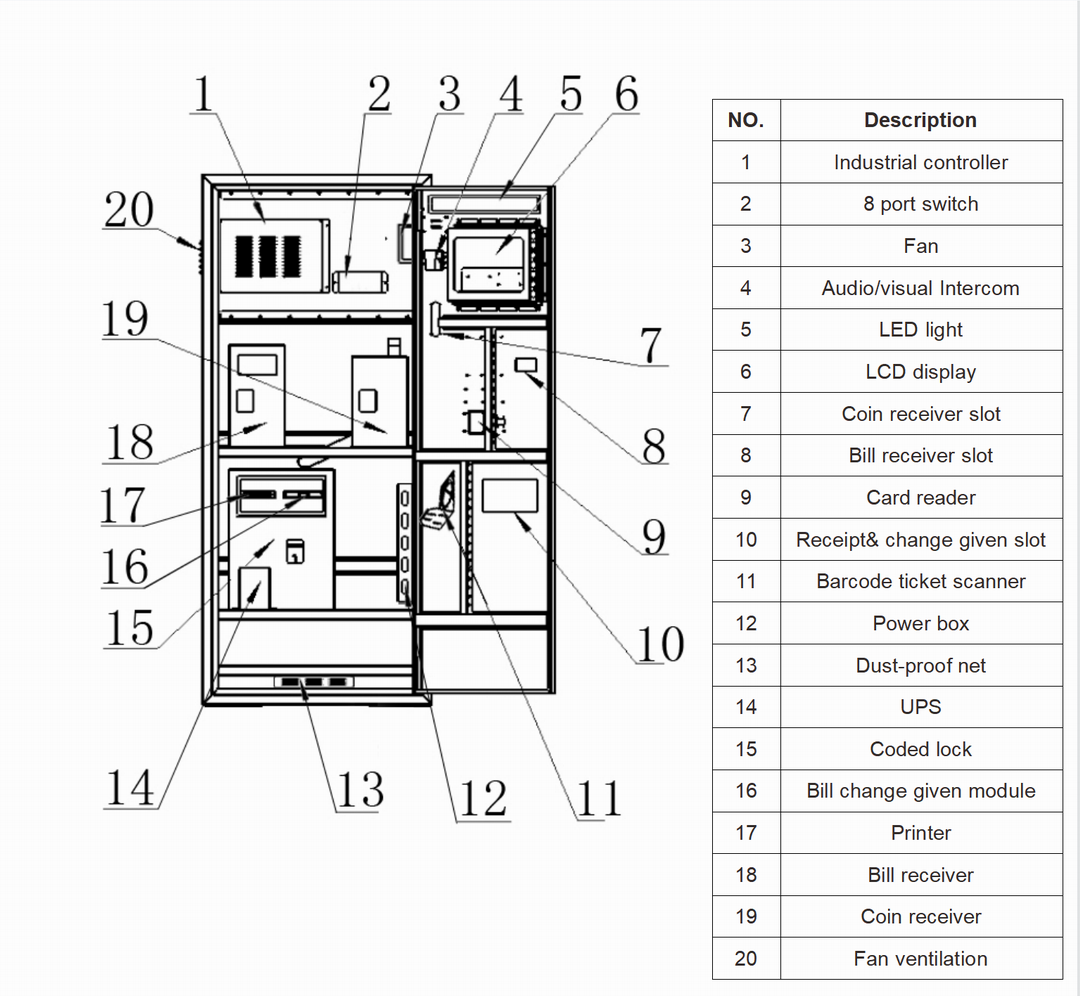

In-hall structure; baking paniting body preventable against rust and corrosion Thick and solid material, not easy to cause deformation; Internal structure in which each module can be maintained easily and conveniently; Standard and ordered wiring |
||
|
Working environment |
Environment temperature: -20 ºC to +50 ºC Relative humidity: 40 % to 80 % (uncompressed) |
||
|
Applied location |
For indoor use (keeping away from water) |
||
|
Placement mode |
Perpendicular to stable floor |
||
|
Communication mode |
TCP/IP |
||
|
|
Switch |
8 ports |
|
|

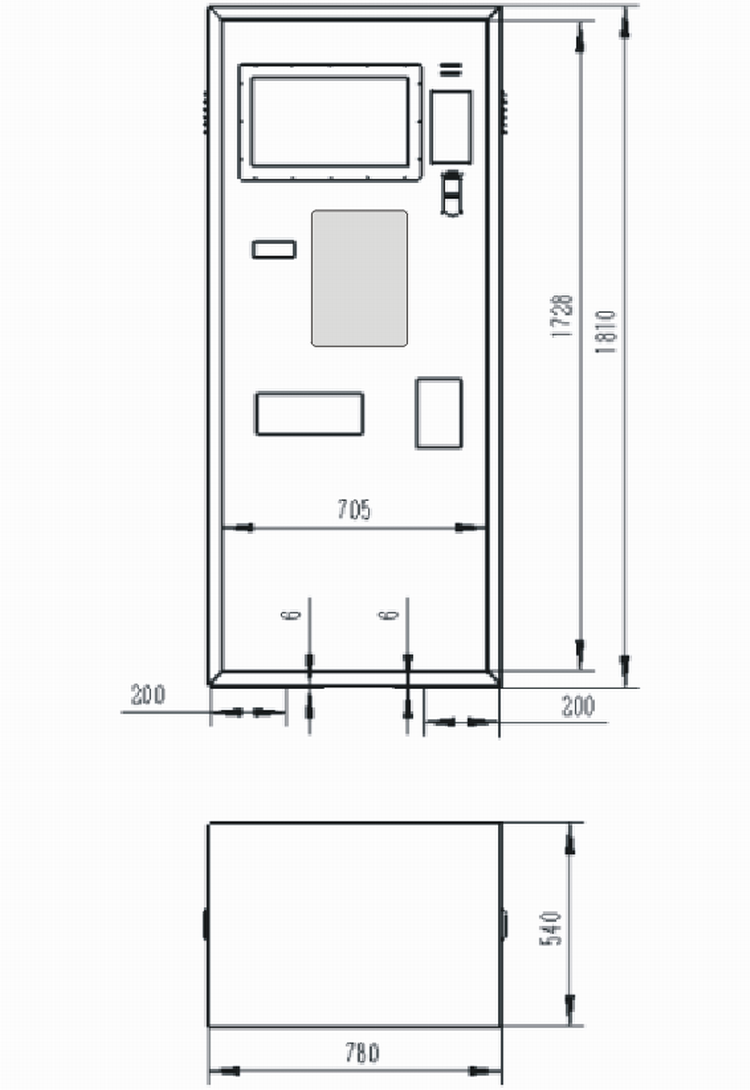

Dimension (mm) |
|
780*540*1810 ( without wheel ) |
|
|
|
780*540*1900 ( with wheel) |
||

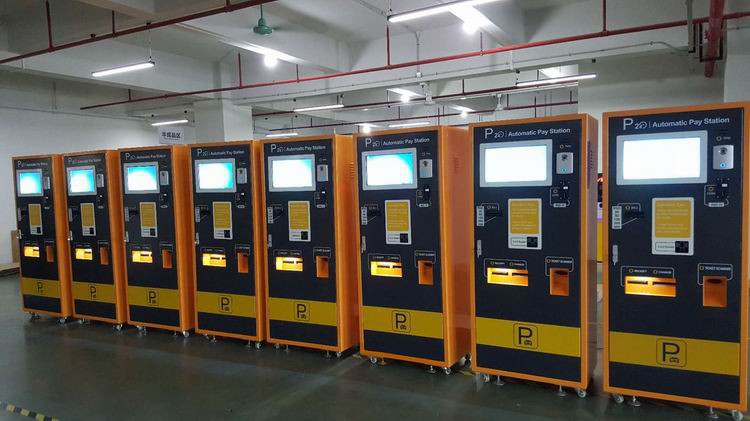

As part of COMA parking management system, pay on foot machine is key important on commercial parking lot, it can achieve unmanned attentant, create more profit for car park operator
COMA AUTO PAYMENT MACHINE, as integrated parking payment system,provide more choice for you to manage parking business

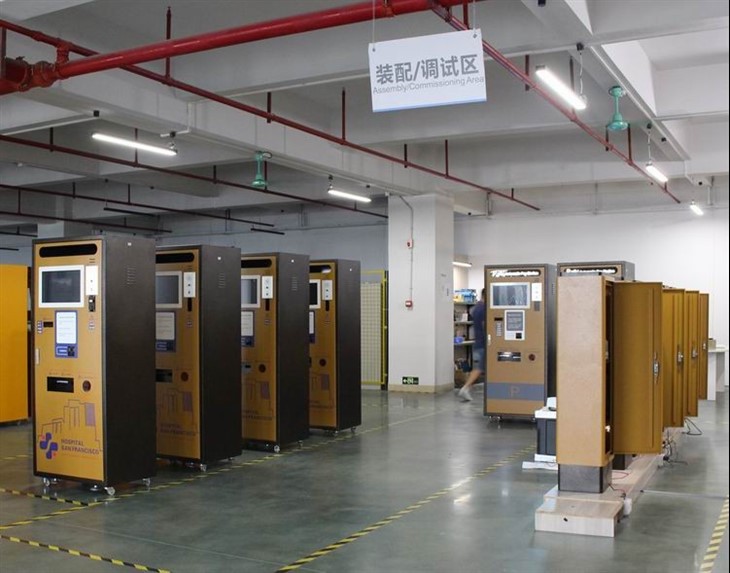

COMA focus on manufacturing parking equipment & providing customized parking integrated solutions since 1996
Looking forward to establishing cooperation with you soon
