ANPR parking management system LPR camera manufacturers
The vehicle license plate recognition parking lot system can realize the opening of the lane and the release of the vehicle by capturing the vehicle license plate number of the incoming and outgoing vehicles and identifying the vehicle information. Because of the license plate number is the only identity information, we can know the information of the vehicle through the license plate number. At the same time, license plate recognition system not only can identify the vehicle's license plate number information, also can capture vehicle models, such as body, effectively ensuring the safety of the owners of the parking for the parking lot.
Function Parameter and specification of Main System Equipment

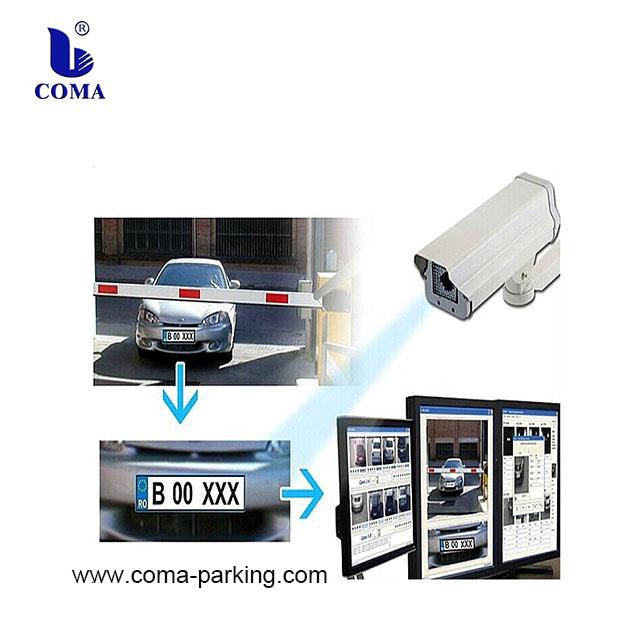

2.1 ANPR(LPR) Camera with software

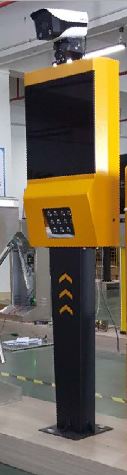

2.0 MP ANPR CAMERA with display and LED light
H.265, dual-stream
Megapixel: 2.0 MP
Lens: motorized 2.7-12mm
Monitor distance: 3-8m
IP: IP66
Power voltage: DC12V
Cover 1 lane, built-in IR LED

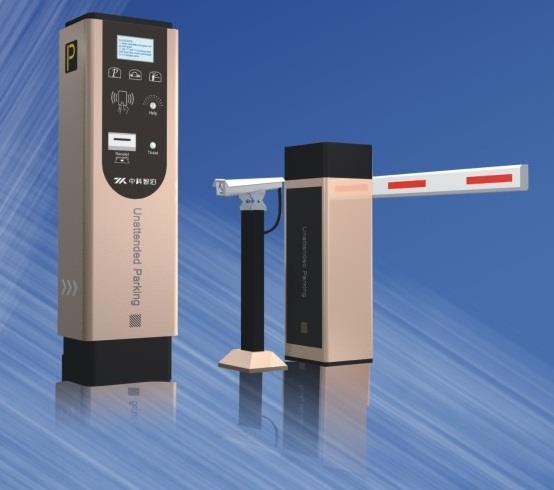

2.2 Ticket dispenser with card reader
To take Barcode ticket at the entrance and swipe the parking card to open the barrier gate
Parking management system
Monthly parkers:(can set up the list in the system software)
Drivers come to the entrance,vehicle present on the loop coils installed underground, ANPR(LPR) camera will recognize their license plate number, if confirm it is legitimate license plate in the system, and in the valid time, the barrier gate will open automatically,same process in the exit.
For some license plate of legitimate vehicles can not be recognized(it is very tiny),can tap the monthly card to enter and exit.
Temporary parkers;
Parker come to the entrance,vehicle present on the loop coils installed underground, ANPR(LPR) camera will recognize their license plate number, the ticket machine will inform the driver to take a barcode ticket which show their vehicle license plate number if recognized it, barrier gate open automatically to enter the parking facility
Parker come to the auto payment machine to pay parking fee when they want to leave,input the license plate number or scan the barcode ticket(took at the entrance), paid with bank notes/coins or prepaid card or credit card(need to Integrated) or using mobile app to pay the parking fee,,they can get a print receipt after paid.
Also parker can pay the parking fee at the central payment station with above pay methods to pay(don’t need to integrate),as a supplement measure to collect the parking fee.
Parker come to the exit ,vehicle present on the loop coils installed underground, ANPR(LPR) camera will recognize their license plate number,if record shows that they had paid,barrier gate will open automatically,if barrier gate can not open automatically(don't recognize or wrong recognize),can scan the barcode ticket took in the entrance to open the barrier gate to leave the parking lot.
