Products Description

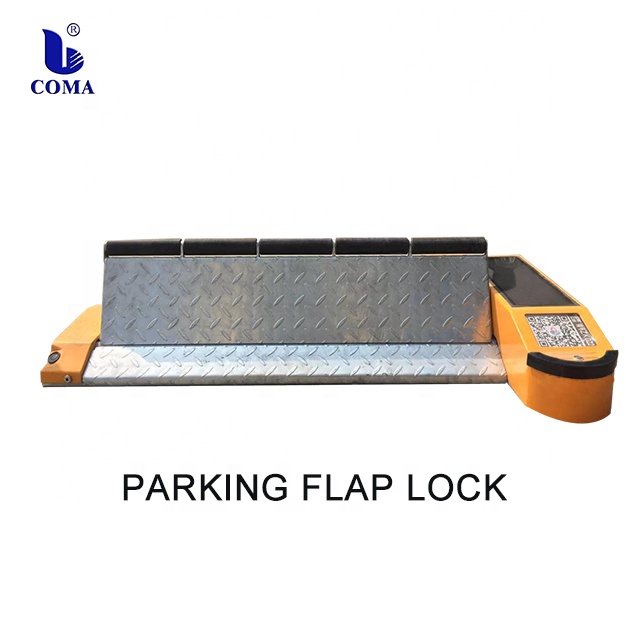

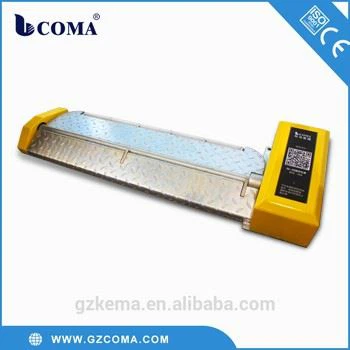

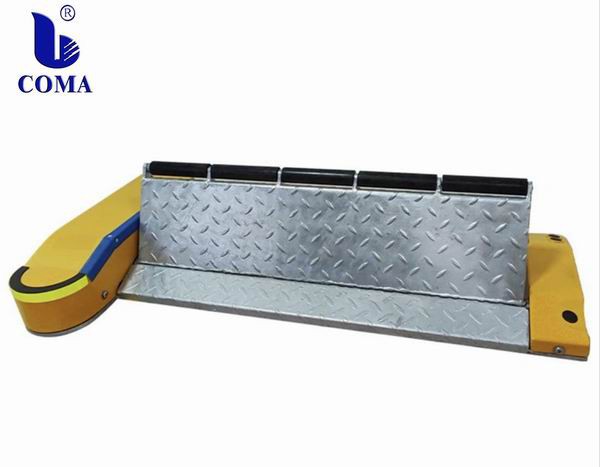

Solar Parking Flap Lock:

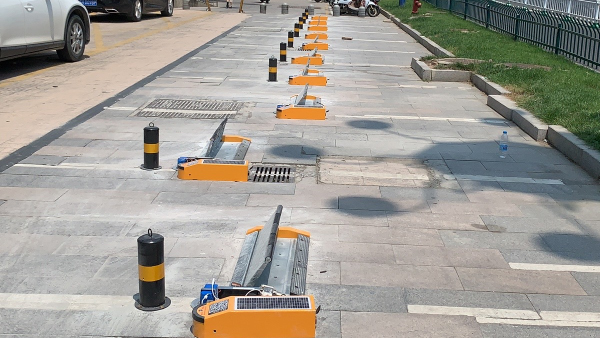

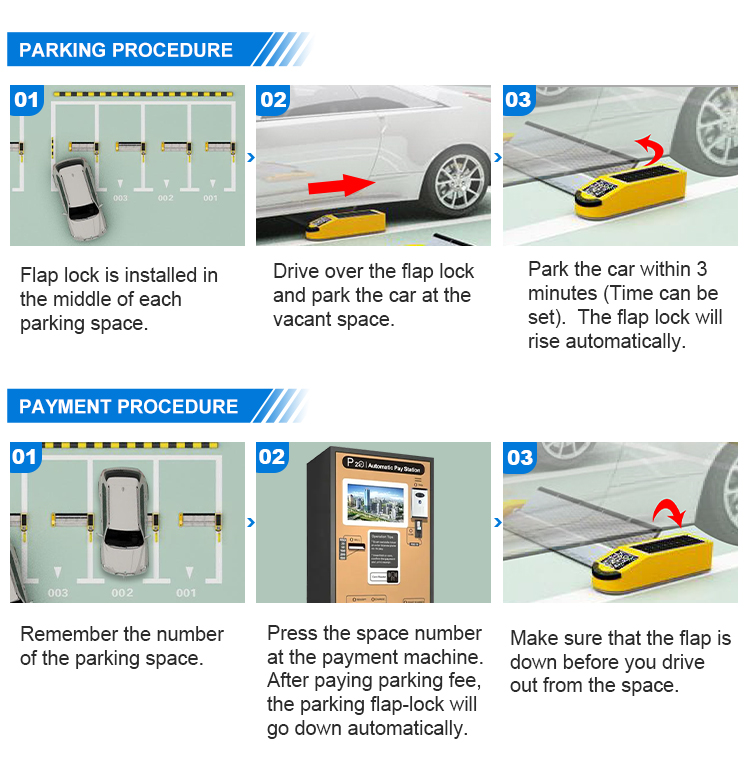

After parking a car on these types of parking lots, solar parking flap lock will rise to hold the car. When the flap rises, the time counter will start. The payment for the parking fee will be at the fare adjustment machine. For payment, enter the number of your parking spot, then press the button for confirmation, followed by the payment button. Move the car only after making sure automatic parking flap lock has gone down.

FUNCTION

Automatically lock the vehicle
PRODUCT MATERIAL: Body is made of steel, and the thickness of steel is above 4 mm, with electro-chemical surface treatment. The cover of the parking lock uses paint-drying material for outdoors. So it is suitable for long-term outdoor use with good durability.

Product Paramenters

Power Voltage (V)	220VAC
Power Rated	60W
Working current	500mA
Lifting Height	220MM
Rising Time	8S
Net Weight	55KG
Packaging	Carton
Gross Weight	60KG

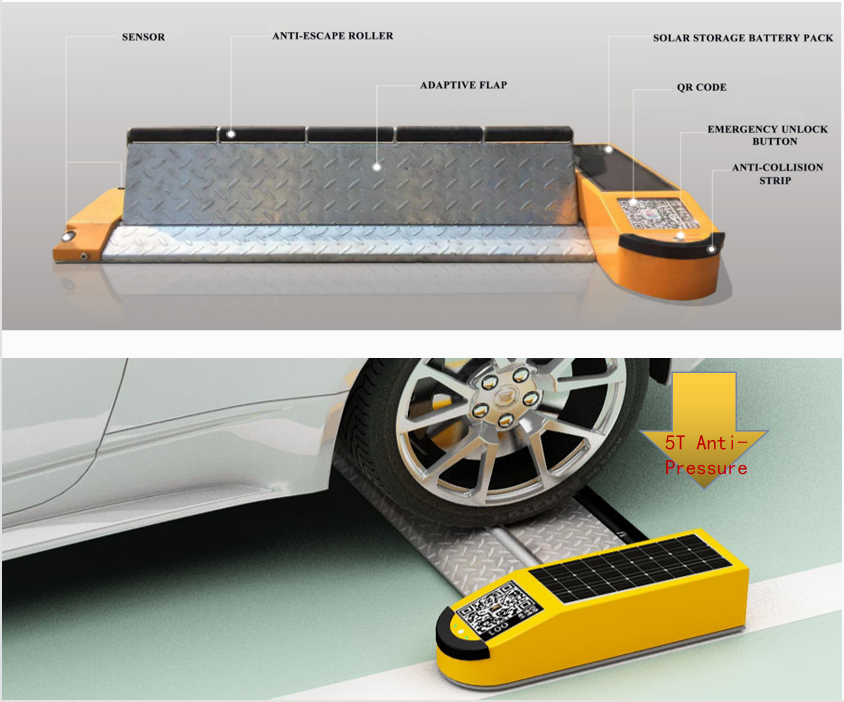

Competitive advantage of solar parking flap lock:

T-Shape,max rising height≤230mm, down height is 50mm only,compact and power
Provide wireless 3G/4G, wire LAN, wire RS485 communication plus BT technology

Material is reinforce steel,can bear up to 5 tons pressure,total net weight is about 60kg

Rising and down time can be set as need, can self-feel the rising height, to avoid to touch chassis

There is special material roller on the top of flap,to avoid vehicle escaping and harm chassis

In case of emergency,can descend flap by software, emergency button, mechanical unlock manually

There is reflective strip in housing front and back side to keep it safe for night parking,also can install spike light at the frame of parking space to help the parker at night

Can be used in harsh outdoor environment after rigorous test,include water-proof,extreme highor low temperature testing

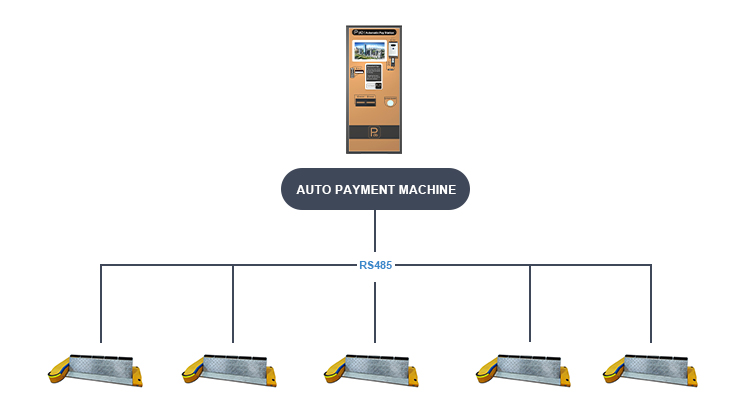

  Wiring Diagram

FAQ:


1. Can I buy one sample?
Sorry, our MOQ for sample is 10sets.
2. Can we make payment through APP?
Yes, product can be customized as per customer’s requirements.
3. Which communication protocol do you have?
3G/4G and RS485
4. Which power supply do you have?
We have solar powered and mains power for choice.
