Ultrasonic car parking guidance management system for parking lot
Ultrasonic car parking guidance management System mainly uses for guiding, easing traffic and offering real time parking information for motorist. Many cities suffer from lack of parking or have a large amount of traffic in search of a parking space, no matter in Airport, Office building, Shopping mall, Factory, Government unit or Business Avenue, etc.

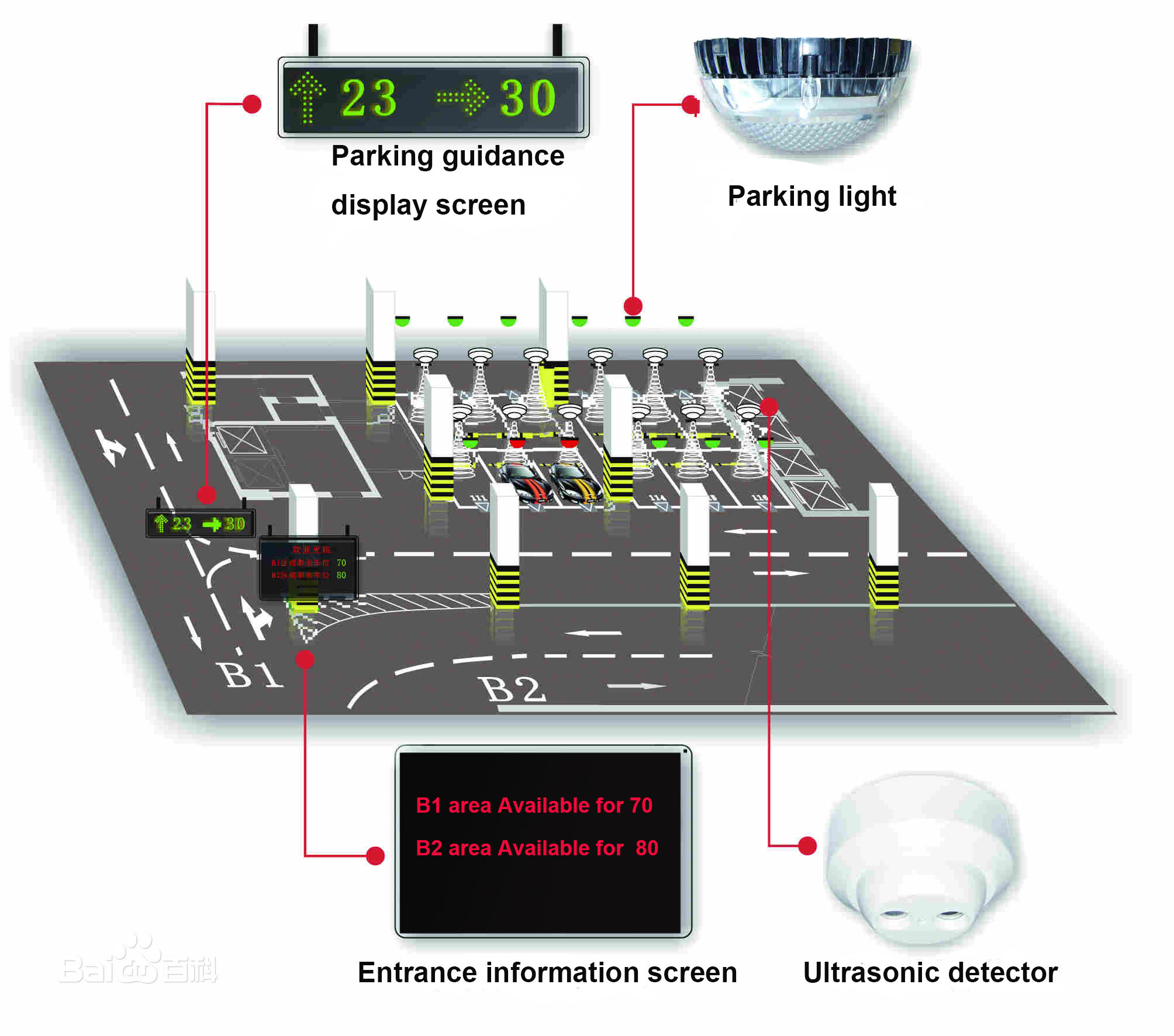

System Components:
1) . Ultrasonic 2 in 1 Parking Lot Detector.
Ultrasonic detection unit install at the front of parking space to monitor presence of vehicle and provides real-time information to PGIS system.
Built in High brightness soft light LED indicator, 2 function in 1 product, Red Color indicates space occupied, Green Color indicates available. Save product cost and construction cost for you.
It is mainly used in indoor parking lot parking status detection. (Outdoor parking lot detector and wireless parking lot detector are also available).
Parking Lot Detector consists of 2 parts: Detector and Pedestal（Free）.
Operation voltage | 18-30V,Recommend:24V | |
Power consumption | 0.5W | |
Operating principle | Ultrasonic measuring | |
Detecting range | 50cm-420cm | |
Communication mode | RS485 | |
Dimension | Φ130*80mm | |
Operating temperature | -20 to +50 degree | |
Typical Current | Red light: 65mA, | Green light: 56mA |
Application | Indoor hoisting | |
Mounting | Hoisting | |
Uplink | Uplink to Region Controller RCM standard series | |
2) .Entry Parking Guidance Display Screen
The Ultrasonic car parking guidance Display Screen placed at the main entry of Parking Space to show the drivers the available lots of each floor. And will guide the driver parking timely. By this way, avoid traffic congestion at the parking lot entry and increase turn over rate of parking space. Generally, vertical parking guidance display screen installed at out door. It adopts outdoor highlighting, can also see clearly in the sun.
Entry Parking Guidance Display Screen's cabinet is waterproof and antirust.
| Power supply | AC220V±20% /1A |
| Communication port | RS485 |
| Power consumption | Each layer is about 20W |
| Operating temperature | -20~+65 degree |
| LED dot matrix | 16*32, P10 green dot matrix |
| Communication Rate | 9600bps |
| Character size | 55*125mm |
| Dimension | 1700*500*150mm ( Max 4 layers display, if larger, the shell needs to be customized) |
3). Hoist Parking Guidance Display Screen.
Hoisting Parking Guidance Display Screen Placed at indoor main channel’s intersection or corners can give the driver ocular guidance prompt and rapid distribution vehicles, avoid straying occupied parking space and congestion. Make the use of parking resource maximum efficiency.
Power supply | AC220V±20% | |||
Communication port | RS485 | |||
Power consumption | Single direction <20W | |||
Operating temperature | -20~+65 degree | |||
Working humidity | 10-90% | |||
LED dot matrix | 16*32, green dot matrix | |||
Character size | 55*125mm | |||
Dimension | 385*230*80mm for 1( or 2 or 3) | |||
direction display with light box | ||||
4). Management Software
Multi- language graphical application developed based on SQL database software with intuitive UI. Simplified operation & Complete functions.
