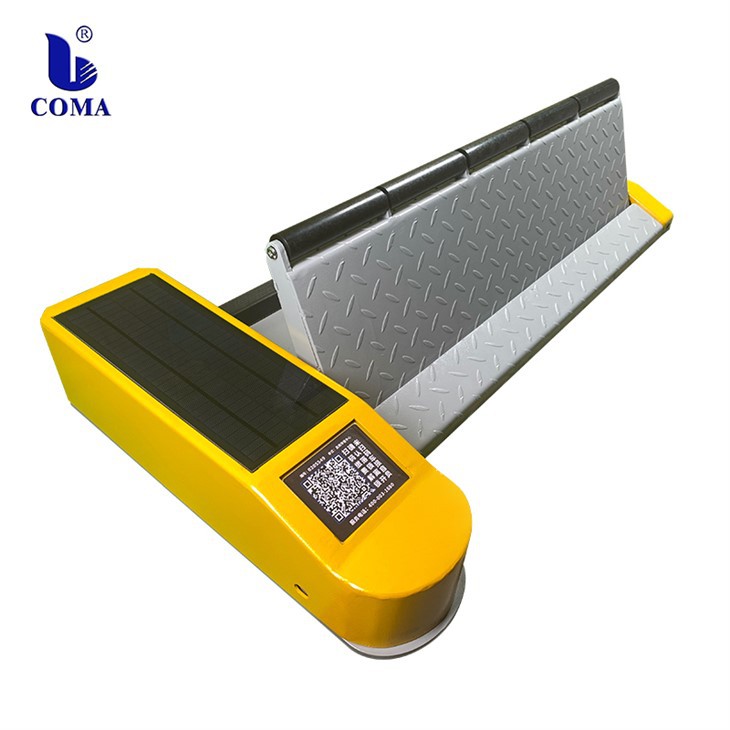

The intelligent automated parking lock features an integrated A3 steel galvanized and powder-coated frame with a 10mm thick base plate and a 5mm thick flap, capable of withstanding 8 tons of pressure. It incorporates a servo motor, multi-mode sensors, and a solar + lithium battery power supply. The entire unit is IP68 waterproof, only 96mm thick, and flush with the ground to prevent scratches to the chassis.
Function:
It integrates with mainstream local third-party payment platforms, allowing drivers to pay parking fees by scanning a QR code. The automated parking lock automatically senses a vehicle's presence and, once the vehicle is parked, automatically raises and begins charging within a set timeframe (e.g., after a 15-minute free period). After payment by scanning a QR code upon leaving, the lock resets. The entire process is unattended and supports automatic unlocking after a power outage.
The system provides unified cloud-based monitoring, reporting parking space availability, battery level, and fault information in real time. It allows for remote locking, price adjustments, and removal from the blacklist of non-paying drivers. One person can manage thousands of parking spaces, significantly reducing human error and financial risks.
Application scenario:

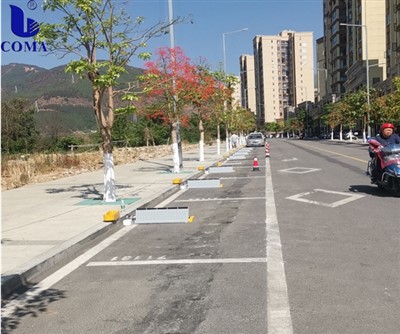

The smart automated parking lock applicable to roadside parking spaces, scenic spots, shopping malls, schools, community private and shared parking spaces, solving four major pain points: "occupancy, low turnover, frequent evasion of fees, and difficulty in wiring". It increases the turnover rate by an average of 40%, providing a lightweight, digital and sustainable profit solution for urban static traffic.
Hot Tags: automated parking lock, China automated parking lock manufacturers, suppliers, factory
