A localized smart parking management system for commercial parking lots with "card retrieval at entrance, card collection at exit"-all data is stored on an on-site server. It supports cash or bank card payments, offering simplicity, stability, and zero transaction fees.

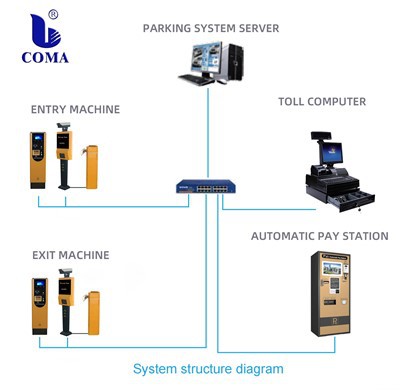

System Components:

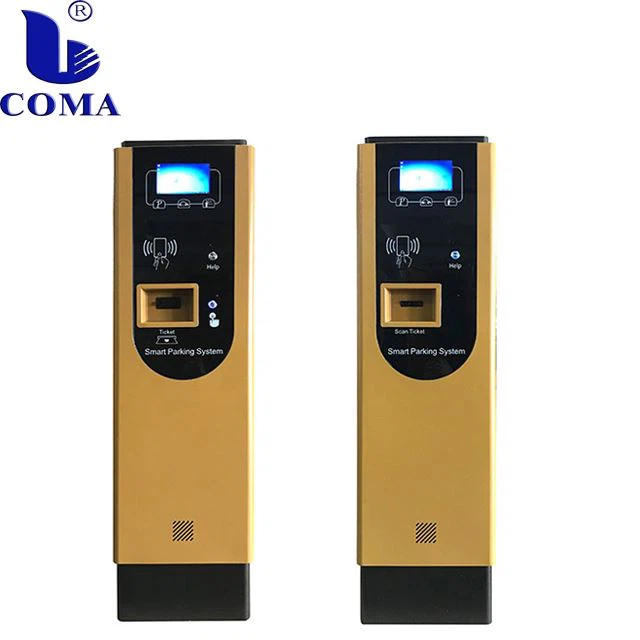

1. Entrance: Inductive loop detector + barrier gate + automatic card dispenser + image comparison camera.
2. Center: Cash payment machine (banknotes, coins, change, or bank card payment).
3. Exit: Inductive loop detector + barrier gate card collector + image comparison camera.
4. Server Room: Local server.
Operation Flow:
① When a vehicle arrives at the entrance, the loop detector is triggered, and the camera captures an image of the vehicle in 0.3 seconds. VIP customers swipe their cards, and the barrier gate automatically opens. Temporary parking lot card dispensers immediately issue temporary cards, which the driver retrieves and enters-the entire process takes 3 seconds.
② Temporary users insert banknotes or coins into the self-service payment machine, which automatically recognizes the payment, provides change, and issues a paper receipt. Temporary users are given a free time (usually 15-30 minutes) to exit.
③ When a vehicle arrives at the exit, the coil is triggered, the card reader reads or absorbs the card and retrieves the entry record from the local database to confirm whether the user is a VIP customer or a temporarily paid user; voice and screen prompts are given simultaneously, the barrier gate automatically opens, and the vehicle exits.
④ The server backs up transaction records and captured images in real time, which administrators can view and export to Excel via a computer on the local area network.
Pain Points Solved:
1. Long queues: Automatic card dispensing and collection, vehicles do not need to turn off the engine, exit completed in 3 seconds.
2. Lost card disputes: Cards are locally linked to license plates and entry times, allowing for reporting lost cards and replacement fees.
3. High labor costs: Unmanned entrance and exit, saving labor costs.
4. Financial loopholes: Cash machines automatically identify counterfeit money, and the system records every payment transaction.
RFID card parking system video:
This smart parking management system has been implemented in multiple overseas commercial plazas, improving entrance efficiency by 50%, with a one-time investment and stable operation for over 10 years.
