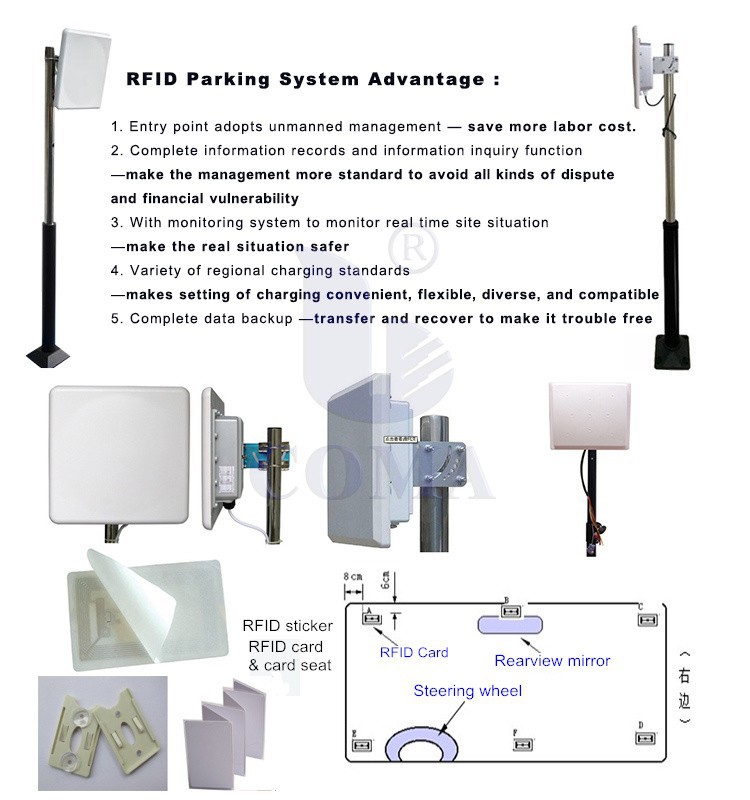

The pain point of long queues for parking lot payments during peak hours is addressed directly by RFID automatic parking system with "seamless access." Drivers simply affix an RFID tag to the inside of their windshield; entering and exiting requires no stopping or opening the window. The system completes identification within 0.3 seconds and automatically raises the barrier.
Reliable Identification, Unaffected by Environmental Interference:
Unlike license plate recognition that relies on light and angle, RFID communicates via radio frequency signals, ensuring reliable identification even in rain, at night, or under direct sunlight. The effective distance between the tag and the reader is 3-15 meters, and vehicles passing at speeds below 20 km/h can be accurately read, truly achieving a smooth "non-stop deceleration" experience.
Dual-insurance design ensures no vehicle is missed.
In addition to RFID readers, cameras are also deployed at entrances and exits. Monthly rental vehicles pass quickly through the RFID lane, while temporary vehicles or vehicles with expired tags are re-captured by cameras, with the two identification methods serving as backups for each other. This combination of "RF + vision" ensures efficient passage for fixed vehicles while also accommodating the entry needs of temporary visitors.

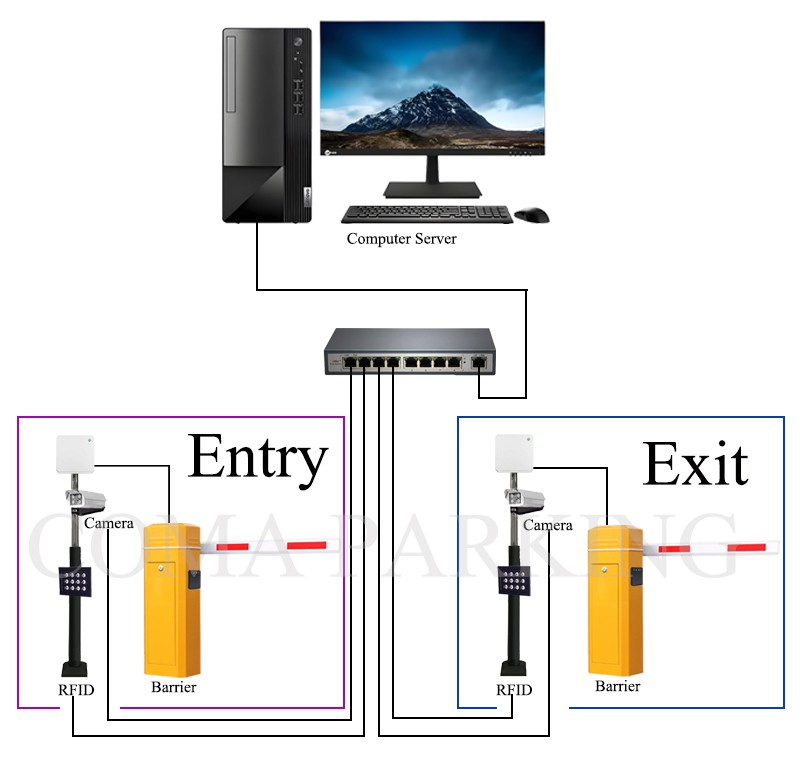

As seen in the wiring diagram, the system's deployment logic is clear: each entrance and exit is equipped with an RFID reader and camera, connected to a switch via network cable, and ultimately aggregated to a management server. The entrance and exit operate independently yet share data, recording the entire process of a vehicle's entry and exit. The server handles card issuance authorization, billing settlement, and report statistics; all data is synchronized in real time, allowing property management personnel to monitor the entire system from the backend.
Back-end management ensures clear accounts.
The entry and exit records, dwell time, and payment status of each vehicle are synchronized to the management back-end in real time. Monthly rental vehicles receive automatic reminders upon expiration, temporary vehicles are charged according to time periods, and financial data can be exported with one click. For properties under group management, data from multiple parking lots can be centrally aggregated, eliminating the chaos of "information silos" between projects.
RFID automatic parking system is particularly suitable for residential communities and office buildings with a high proportion of monthly rental vehicles, as well as commercial complexes that prioritize efficient traffic flow. By reducing the waiting time for car owners by even one minute, the turnover rate of parking lots can be increased significantly.
