RFID system include short range type(13.56mHz or 125kHz) and long range type(433mHz or 860mHZ~928mHz)

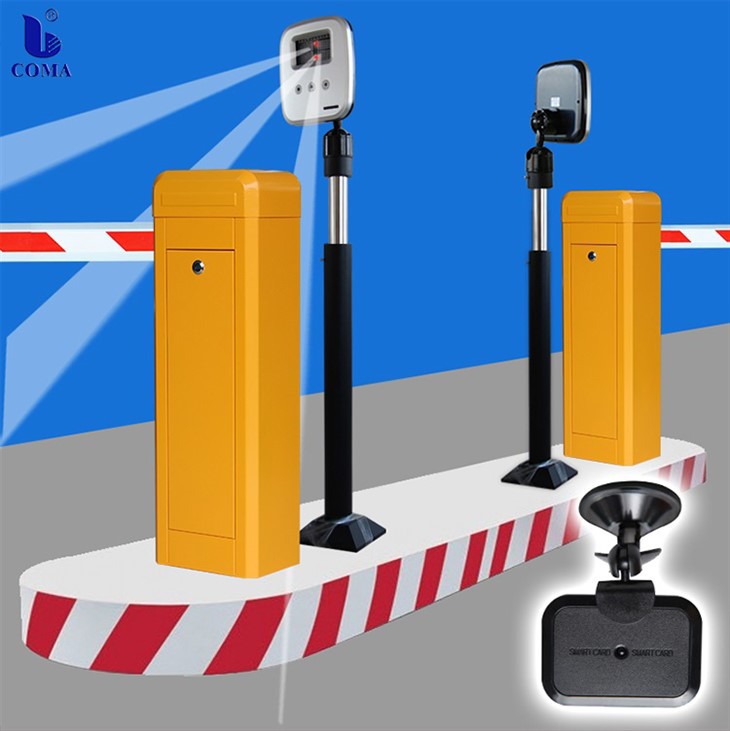

Long range RFID parking solution can provide max 30 meters reading distance from RFID reader to RFID tag(vehicle),widely use in residential parking and office parking,also factory parking which most vehicle are regular users
Long range RFID tag with battery inside, have a super good penetrate windshied compacity, can be easy read by RFID reader
Project application
It can work with or without parking management system to support, can deploy to site easily and easy to use.
Parameter:
|
Reading distance |
3-30m(adjustable) |
|
Working module |
Optical excitation positioning, CDMA blue |
|
|
tooth communication, sleep wake-up |
|
Working power |
DC12V-18V |
|
4A adapter |
AC110-220V/DC +12V |
|
Blue tooth power |
12W |
|
Working frequency |
433MHZ |
|
Reading angle |
360 degree |
|
Tag agreement |
CDMA |
|
Interface type |
Weigand 26/34 RS232/485,Relay |
|
Storage temperature |
-45℃- +95℃ |
|
Working temperature |
-30℃- +75℃ |
|
Relative humidity |
Max.95% |
|
Dimension of reader |
243*236*45mm(classic one) |
Reference video
