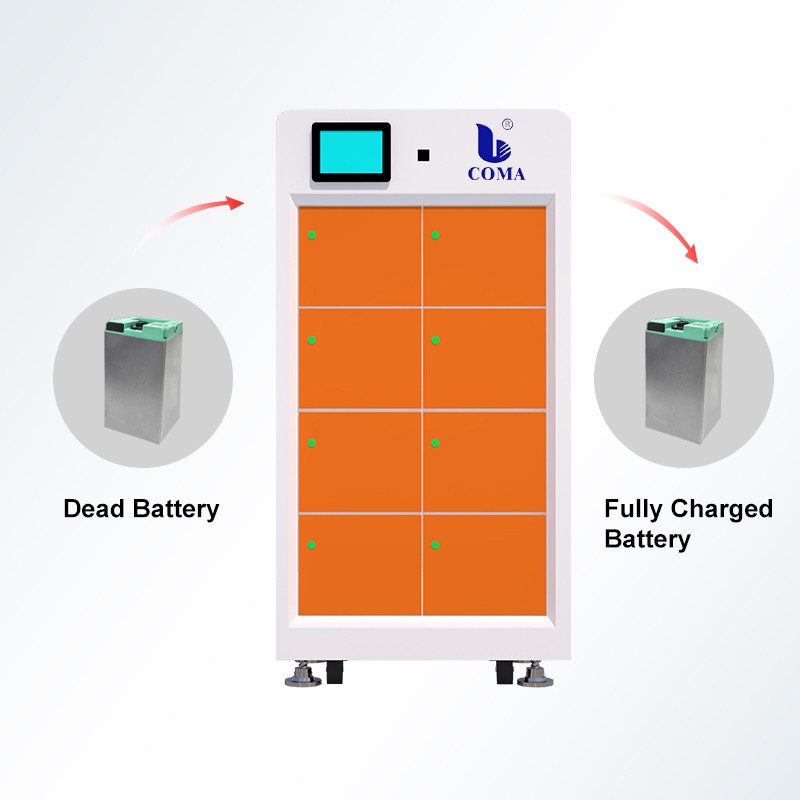

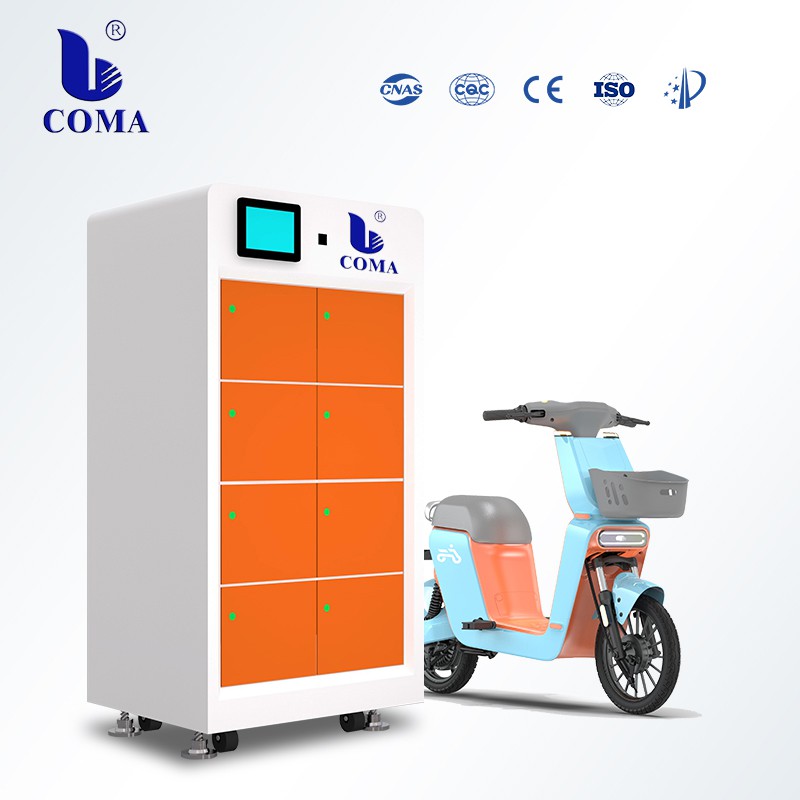

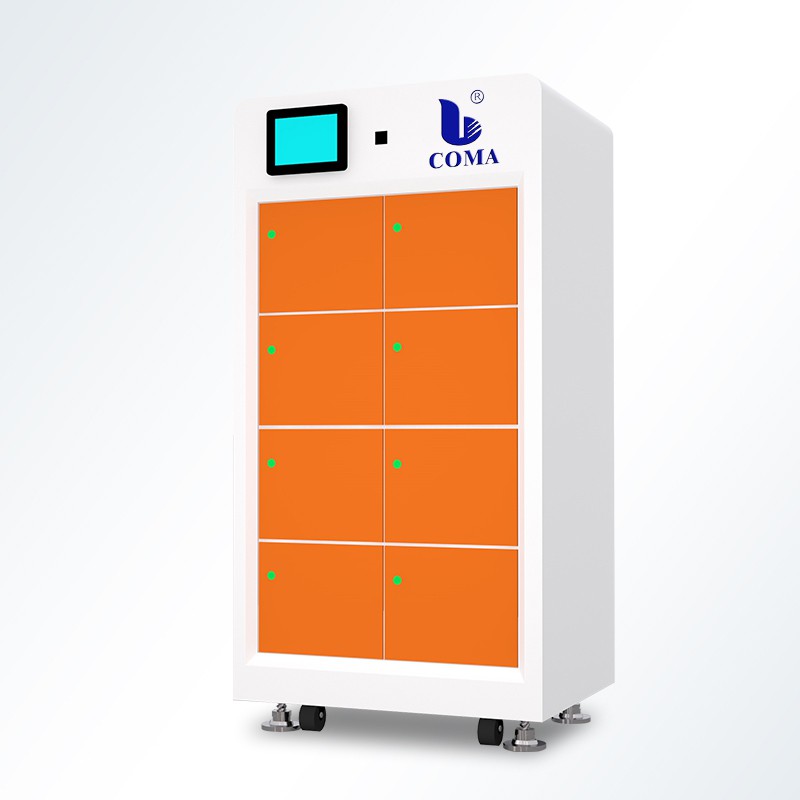

The charging and battery swapping cabinet (also named battery rental cabinet) is a device that integrates charging and battery swapping functions. The product structure of charging and swapping cabinet mainly includes cabinet, charging interface, control module, power module and other parts.

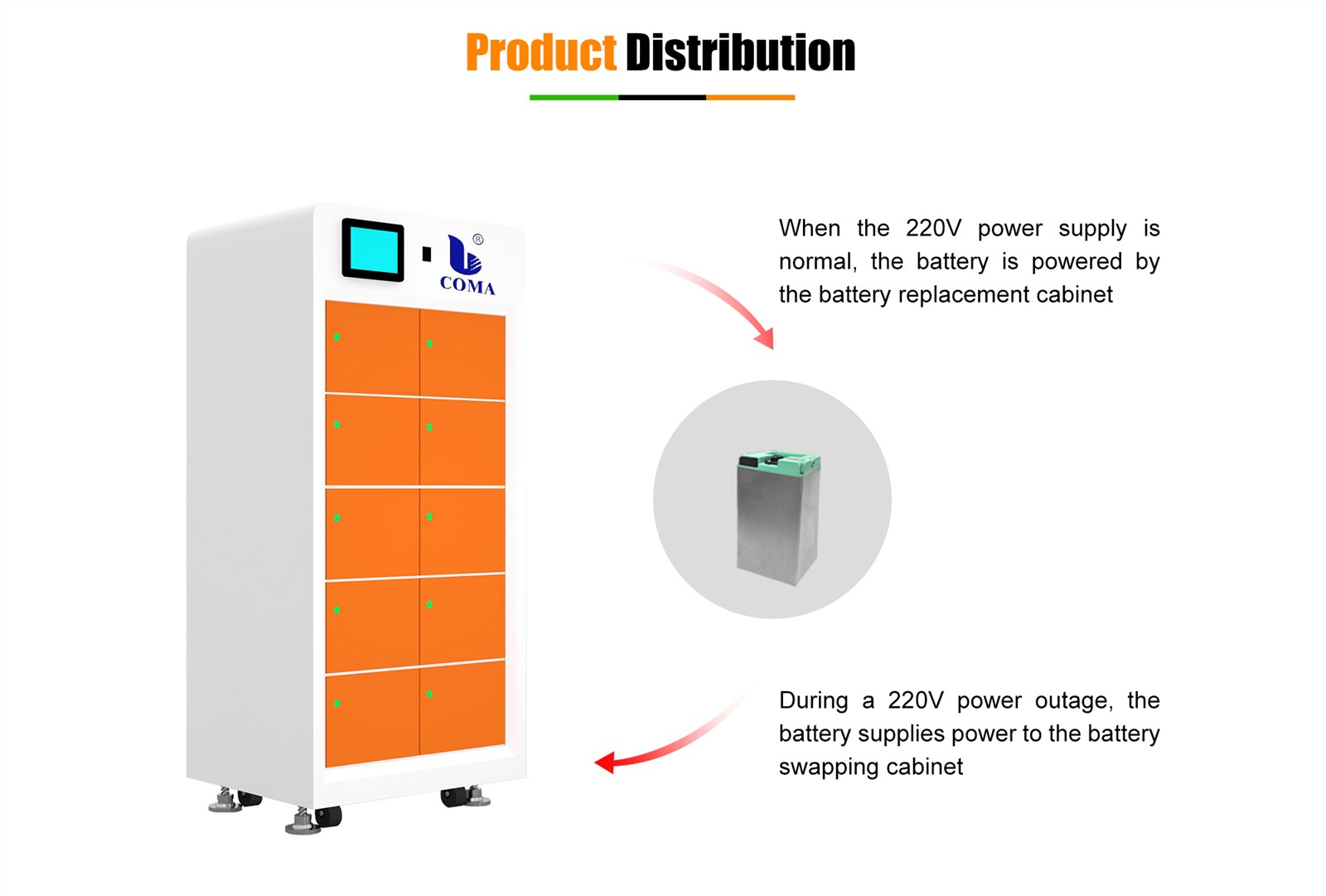

Work Principle: The power module converts AC power into DC power to charge or replace the battery; the control module is responsible for monitoring the charging process and protecting the battery safety.
| Electrical parameters | |
| Rated input voltage | AC220V/50HZ |
| Single-channel rated output power | 750w/1300w |
| Single-channel rated output current | 10A/15A |
| Rated input power | 7.5KW/12.7KW |
| Rated output power | 6KW/10.4KW |
| Rated output current | 27.2A/47.2A |
| Output voltage range | 40-90VDC |
| Dimensional parameters | |
| Equipment size (L*W*H) | 770*1565*600 |
| Hanging size (L*W*H) | 2255*210*400mm |
| Working environment | |
| Working temperature | -20℃-50℃ |
| Protection level | IP54 |
| Outdoor lightning protection | lightning protection device |
| Door lock | Intelligent lock |
| Communication method | |
| Network support | 4G/WIFI |
| Communication support | RS485/CAN |
| Applicable batteries | |
| Ternary lithium battery, lithium iron phosphate battery, lithium titanate battery (48/60/72V ,supports multiple battery charging and battery replacement) | |
| Optional accessories: | |
| canopy, monitoring, uninterruptible power supply, heating device, flood alarm | |
Battery rental cabinet has an intelligent management system that can monitor the battery status, charging progress, etc. in real time. The cabinet is made of high-strength materials, which is durable and has good fire and explosion-proof properties. Its charging interface is humanized and convenient for users to operate.
