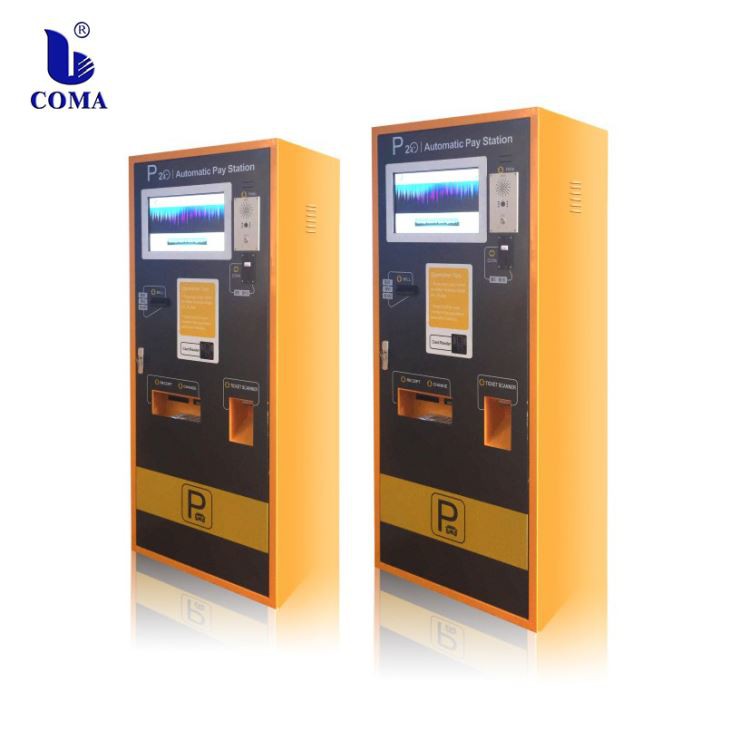

COMA automatic payment parking system for overseas market
Auto Pay station is usually put in the place where drivers have to pass through or other location convenient for parking payment, for example: near elevator. The auto pay station is connected with the parking management system. The driver insert bills or coins into the machine, then the auto pay station will work automatically and a payment receipt will be printed, can provide automatic, safe and friendly use.
Features:

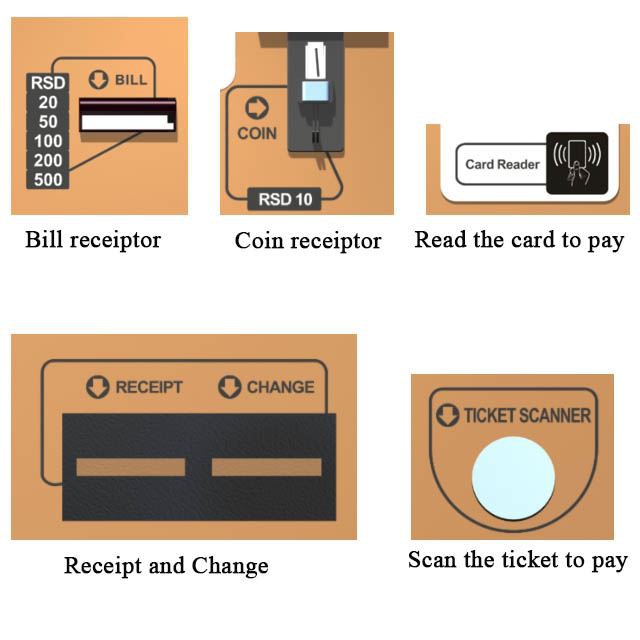

1. Accept local multiple domination of coin and bill, and receiving domination can be customized by administrator from software.
2. Scan ticket or input license plate no.to pay, support to inquire entry and exit time, parking time, and fuzzy search.
3. Support fast receipt printing, network cable connection, long distance transmission, integrated with LPR
4. UPS provides 10 minutes power after power off.
5. Safety: 2 mechanical locks and 3 password locks are included. Password lock provide especial protection for each cash module.
6. Reasonable design: Rear door for maintenance only and front door for take out cash.
7. Humanized reminder: system can notify management center by sending message if paper or change is lack, or cash receiving module is almost full.
Automatic payment machine parameter:
Model | CM-8002 | ||
System | Processor | J1900 4-cores, 2.0G | |
Operating system | Windows 7 | ||
Input/output | Receipt printing | USB interface; Thermal printing, auto-cut (semi-cut); no-enough-paper alarm, Print span: 80 mm; Paper roll diameter: 150 mm | |
Barcode scanner | Honeywell brand,Barcode scanning, laser net scanning (USB interface) | ||
Audio output | 2-ch, effective output: 5 W | ||
Touch screen | 18.5-inch LCD; Preventable against dust, fouling and violence; Accurate location without drifting
| ||
Interface | RS-232 serial interface | 6 | |
USB interface | 9 | ||
VGA interface | 1 | ||
Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface | ||
Function | SSD capacity |
128 G
| |
Display | Response time: 14 ms; Max. resolution: 1366 × 768, 32 Bit; Brightness: 250cd/㎡ Contrast: 1000:1; | ||
Upload | The data can be uploaded to the central platform. | ||
Managment card reader | Only for management clerk to swipe management card to do settlement. | ||
Bank note identification | Cashbox containable with notes of multiple currency value; Precise identification of the currency value | ||
Bank note changes returning | 1 to 2 cashboxes can be selected; Changes with up to 2 kinds of currency value can be returned; Self-checking function can prevent from returning overmuch notes and note jam caused by damp; | ||
Coin receiving | Coins of multiple currency value receivable | ||
Coin changes returning | Coins of multiple currency value returnable | ||
