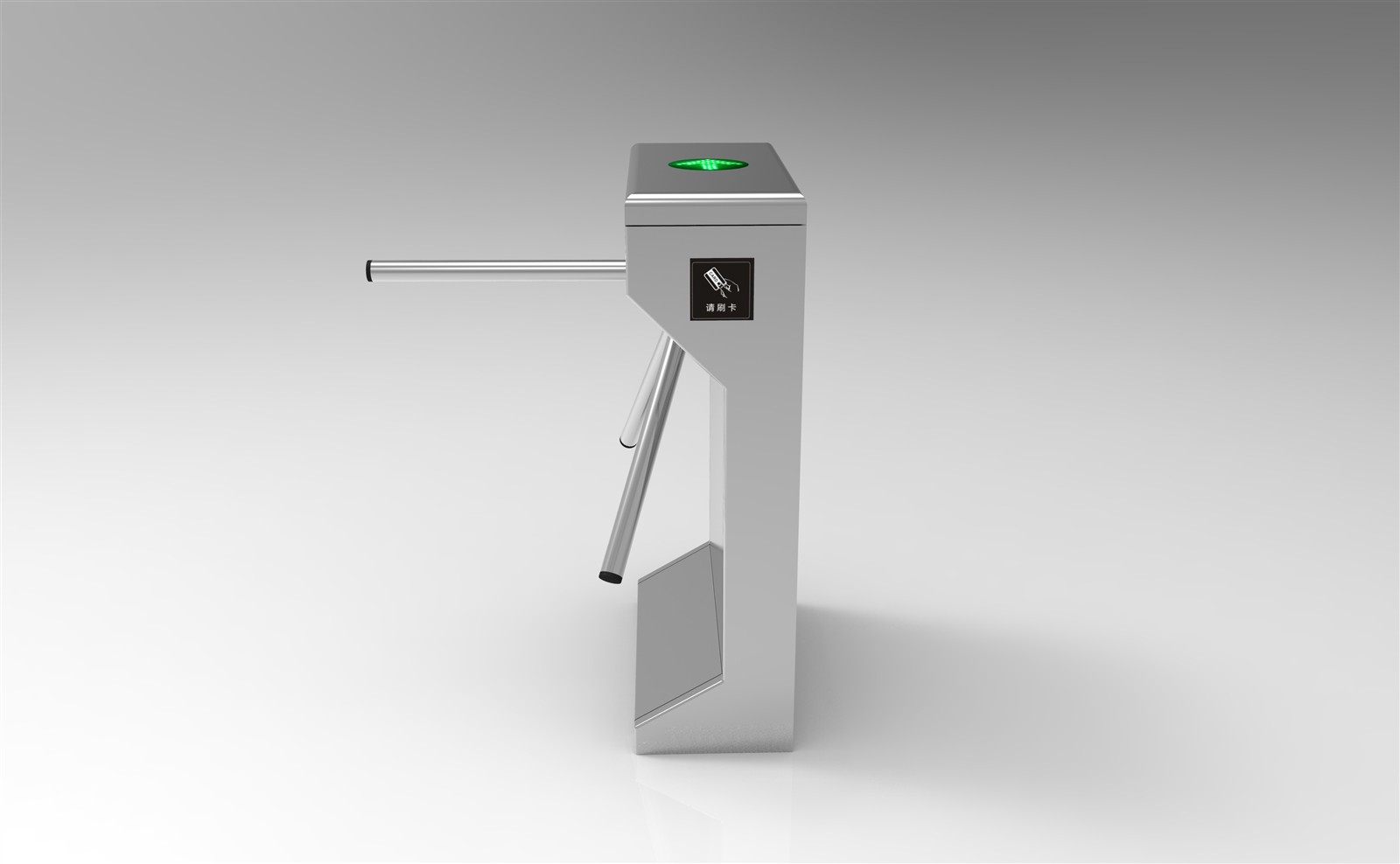

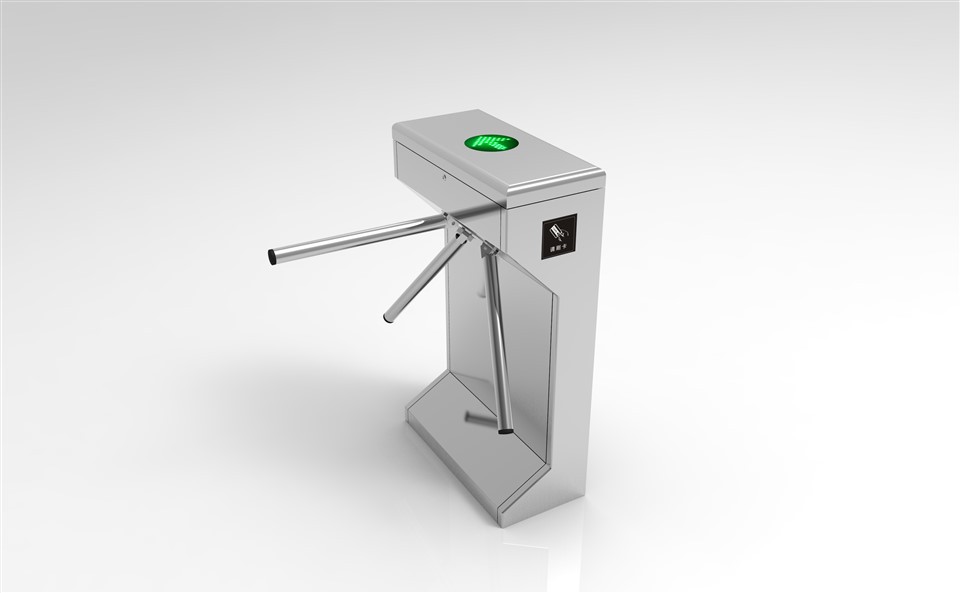

Our CM series tripod turnstiles represent classic and safe way to protect your premises. They are used in various indoor&outdoor environment applications. They fit perfectly as an economical option in the office buildings and other related applications.
Features
- SUS304 stainless steel robust cabinet with pretty spot welding and polishing and robust arms assembly
- Bi-directional tripod turnstile with arm reliably drop on fire activation,not bounce up and block the walkway
- LED pictogram for intuitive user experience and high throughput in both directions
- High quality at an affordable price
- Low power consumption
- Wide range of accessories
- Easy and simple installation process and maintain and monitor
- Prevented by the anti-reverse rotation device at 60 degree rotation
- Mechanism with shock absorber/damper ensure silent smooth operation
- Industrial drive board with long service time
Specifications
|
Power requirements |
AC110V/220V, 50/60Hz |
|
|
Power consumption |
Starting |
73W |
|
Standby |
20W |
|
|
Unlock |
63W |
|
|
Working temperature |
-28 °C - 60 °C |
|
|
Working humidity |
5%-80% |
|
|
Working environment |
Indoor/Outdoor(if sheltered) |
|
|
Speed of throughput |
RFID |
Maximum 30/minute |
|
Fingerprint |
Maximum 25/minute |
|
|
Lane width(mm) |
550 |
|
|
Dimension(mm) |
L=565, W=280, H=980 |
|
|
Dimension with packing(mm) |
L=680, W=380, H=1090 |
|
|
Net weight(kg) |
50 |
|
|
Weight with packing(kg) |
58 |
|
|
LED indicator |
Y |
|
|
Cabinet material |
SUS304 Stainless Steel |
|
|
Barrier material |
SUS304 Stainless Steel |
|
|
Input interface |
RS485/Dry Contact/Relay/DC12V |
|
|
Barrier movement |
Rotation |
|
|
Emergency mode |
Y |
|
|
Security level |
Medium |
|
|
Mean cycles between failure (MCBF) |
5 million |
|
|
Options/Accessories |
Counter, SUS316 Cabinet and Lid, Remote Control,Access Control |
|
|
Drive Variant |
Fully auto/Semi-auto |
|
|
Housing Thickness |
1.5*1.2mm(Top*Housing) |
|
|
Enclose Rating |
IP54 |
|

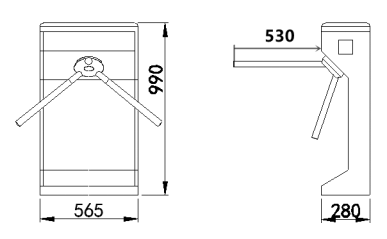

Dimensions(mm)
