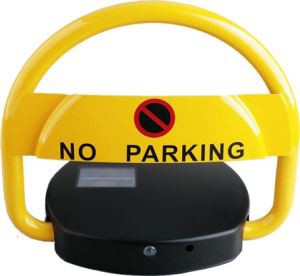

The solar powered parking flap lock is a ground-mounted parking management device designed for private and commercial parking scenarios. The product utilizes solar power and a flat-panel structure design, solving the pain points of traditional parking locks such as reliance on external power sources and the protruding body obstructing vehicle passage. It is suitable for residential communities, office buildings, and commercial complexes.
Structural Features:
The main body of the product is constructed from A3 steel galvanized and powder-coated housing. When fully retracted, it is flush with the ground, allowing vehicles to pass over it normally. The housing integrates a lithium battery pack, DC motor, and transmission mechanism. The outer shell has an IP67 protection rating, capable of withstanding 5 tons of static pressure and daily rain immersion.
Work principle:
The solar-powered parking flap lock uses a dual power supply mode of solar energy and lithium battery, and accurately identifies vehicle entry and exit through dual sensors of ultrasonic waves and radar. When a vehicle enters, a specified time can be set for the panel to rise and start billing. After payment, the panel automatically lowers to allow passage. The device is ultra-thin, ground-hugging, and bounces back upon encountering obstacles. It is waterproof and impact-resistant, and can achieve unattended operation and intelligent management without the need for wiring.
Installation and Maintenance
The solar powered parking flap lock uses chemical anchors to fix it to hardened concrete surfaces. Installation of a single unit takes approximately 30 minutes and requires no excavation or wiring. Routine maintenance only requires periodically cleaning dust from the solar panel surface. In northern regions, it is recommended to check the enclosure's sealing after snowfall in winter. The entire unit is designed for an 8-year lifespan, and the motor and battery support modular replacement.
