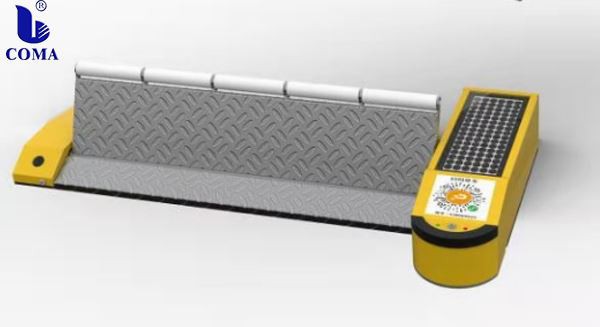

COMA parking manufacturer's sixth genneration smart parking flap lock for car park is emgerged. It's the most stable model which widely used for project operation.

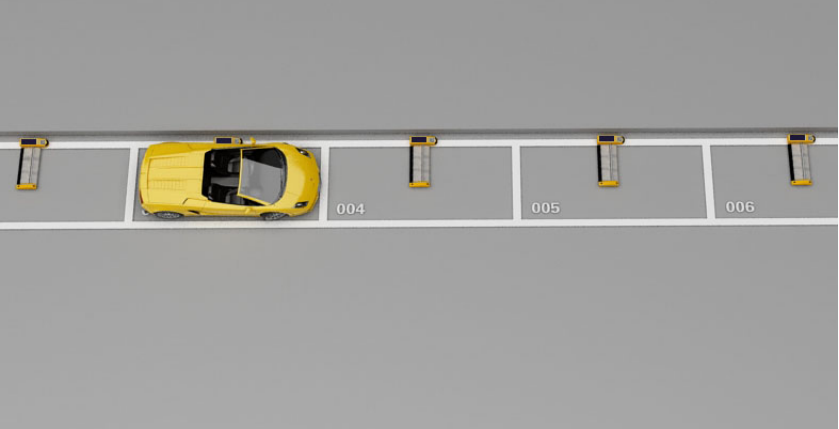

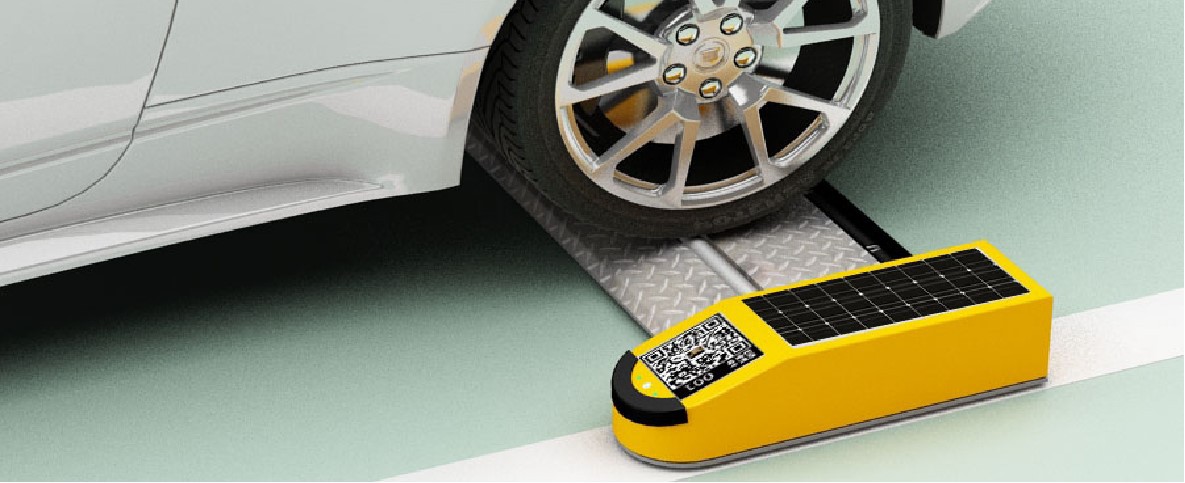

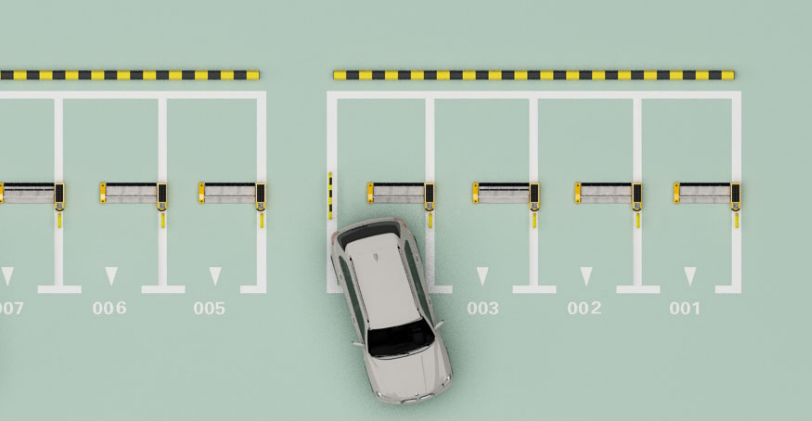

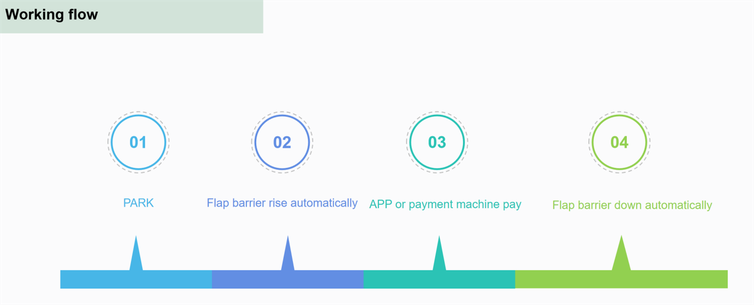

After parking a car in this parking lot, a flap will rise to hold the car. When the flap rises, the time counter will start. The payment for the parking fee will be at the fare adjustment machine. For payment, enter the number of your parking spot, then press the button for confirmation, followed by the payment button. Move the car only after making sure the flap has gone down.
Advantages of parking flap lock:

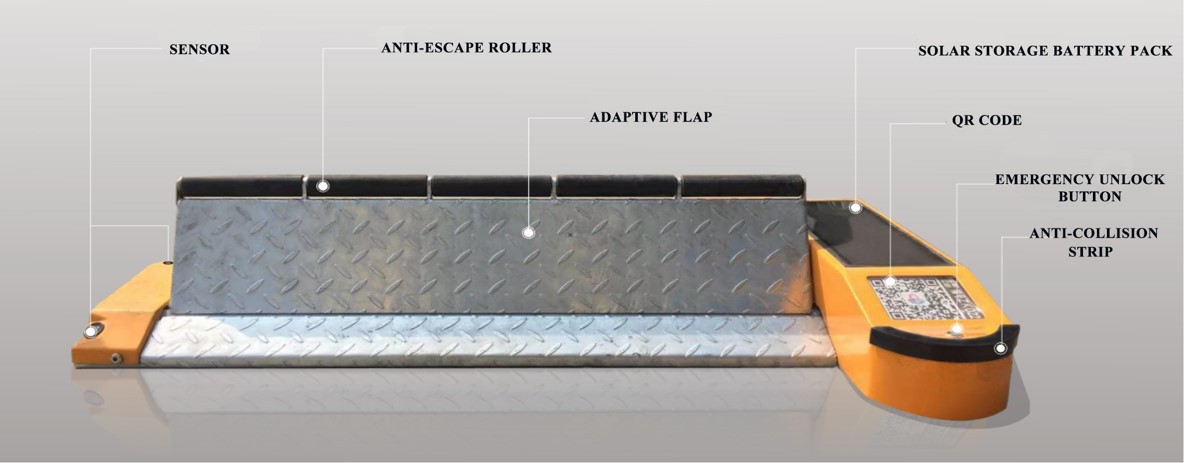

1. The unique structural design can effectively protect the internal parts of the parking lock;
2. Energy saving and environmental protection, using solar panels for charging, no external power supply required;
3. The main control box and battery adopt a unique waterproof design
4. It has a wide range of applications and can be used in different types of parking lots;
5. Multi-mode detection, automatic induction lock;
6. With waterproof and dustproof function, it can adapt to different climates;
|
Parameter for ZKTYN-V3 |
|
|
Power supply |
Electricity, solar energy |
|
Dimension |
1050*520*260mm(up), 1067*520*128mm(down) |
|
Communication |

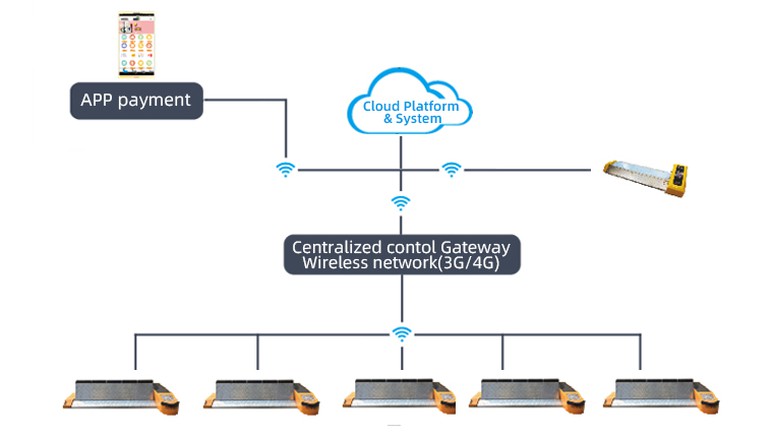

2G/4G/5G/LoRa/433 gateway/Rs485 |
|
Drive mode |
Motor |
|
Motor working voltage |
24V |
|
Motor trigger way |
Loop coil trigger or ultrasonic sensor |
|
The max. resistance weight |
2 tons |
|
Barrier ascending time |
<10s |
|
Barrier descending time |
<10s |
|
Net Weight |
60kgs |
|
Working temperature |
-40℃~85℃ |
|
Water detecting |
Barrier will be down if water reach 30mn height |
|
Solar powered |
10W panel and 13AH battery |
|
Protection class |
IP68 |
|
Rated current |
0.012W(standby), max 25W(moving) |
Our service
1. Free installation and commissiong guidance on-line.
2. Shipping arrangement for customer if needed
3. Professional technical support after-sales.
4. Prompt reply within 24 hours.
