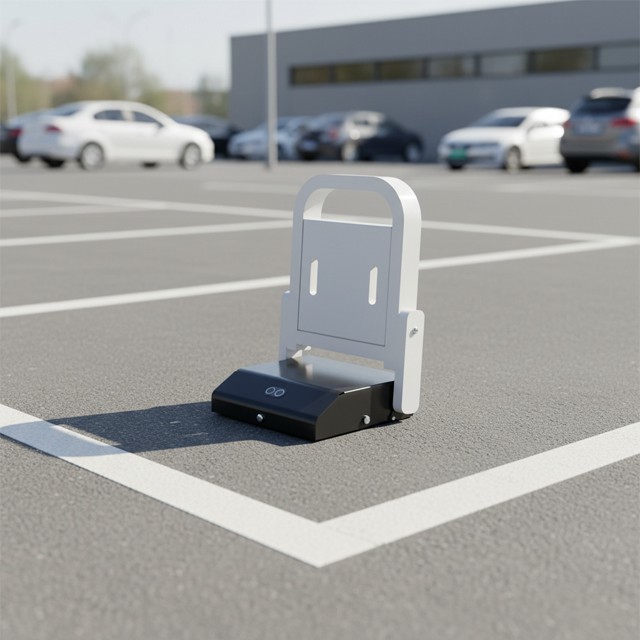

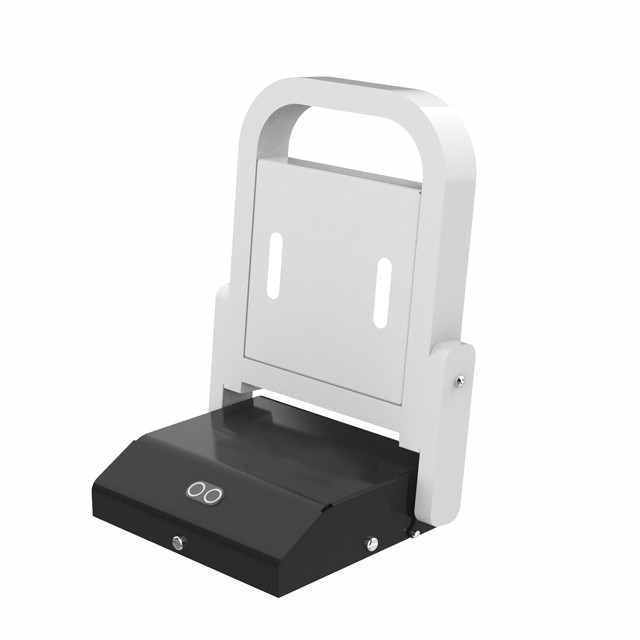

Shared smart parking lock barriers are intelligent parking management devices based on Internet of Things (IoT) technology. By combining traditional parking locks with the Internet, mobile payment, and automated control technologies, they enable shared operation and unmanned management of parking spaces.
Features
● Employs a highly reliable and durable brushless motor, offering a long service life, low noise, and smooth operation;
● Mechatronics integrated, modular design for easy installation, debugging, and maintenance;
● Both the baffle and base plate are made of 5mm steel plate, providing high strength, impact resistance, and crush resistance;
● Ultrasonic sensing: when a vehicle leaves the parking space, the lock rises to prevent obstruction;
● Ultrasonic sensing: when a vehicle is in the parking space, the lock does not rise to prevent collisions;
● Built-in high-brightness flashing light provides excellent nighttime warning, effectively preventing accidental collisions between people and vehicles in low-light environments;
● Built-in indicator light shows the parking lock's raising/lowering status;
● Voice prompt function allows for voice-activated disengagement of fuel-powered vehicles;
● Supports smart IoT connectivity in various forms, enabling remote platform control and data interaction;
● Adaptable to complex climates and environments, with a rigorous weather-resistant design suitable for various outdoor use scenarios.
Technical Parameters
● Input Voltage: DC24V
● Drive Method: Electromechanical Integrated
● Control Method: 4G/RS485/Switch Input
● Applicable Scenarios: Charging piles or dedicated parking space anti-occupancy management
● Lifting/Locking Speed: 2.5~5s
● Weight: 20kg
● Protection Devices: Obstacle detection return, built-in Hall switch, ultrasonic sensor
● Operating Temperature: -20℃~55℃
Controller Parameters
● Operating Voltage: DC24V
● Remote Control Frequency: 433MHz
● Static Power Consumption: DC24V/<50mA
● Operating Ambient Temperature: -20℃~+55℃
● Motor Power: DC24V/40W
● Ultrasonic Sensing Distance: 0~80CM
● RS485 Interface Baud Rate: 9600bps/n.8.1
With technological advancements and the development of the sharing economy, smart parking lock barriers for shared parking spaces are expected to play a more important role in future urban traffic management, providing effective technical support for solving parking problems.
