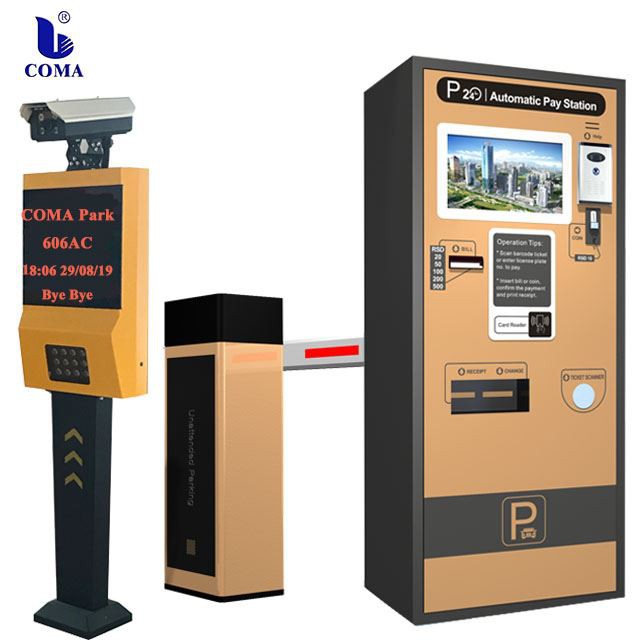

LPR Camera ANPR Software Parking Access Control System

LPR Camera ANPR Software Parking Access Control System

​ANPR parking system is a a reliable, accurate and cost effective off-street car park management solution.It is widely used in many places,including supermarkets, retail parks, hotels, hospitals and leisure centres.

LPR Camera ANPR software Parking Access Control System



COMA Focus On Developing and Providing Innovative parking equipment + Parking Integrated Solutions,Since 1996


COMA parking system


ANPR parking system is a reliable, accurate and cost effective off-street car park management solution.It is widely used in many places,including supermarkets, retail parks, hotels, hospitals and leisure centres.



How ANPR(also known as LPR) car parking system works

1.Entrance procedure
A vehicle stops in front of the entrance, just before the barrier. The sensor detects its presence and a dedicated camera automatically recognizes and records the number plate, date and time of entry. The remote management system captures the data provided by the camera and enters it into the database. If already registered, the subscriber's membership information and reservation data are added. The entrance barrier rises allowing the driver access to the car park. The barrier lowers automatically, once a vehicle passes the safety sensor.

Drivers of vehicles registered with an online account can enter and exit nominated car parks unimpeded. Parking charges are automatically debited from their nominated credit/debit cards at regular intervals via an online account.



2.Exit procedure
A vehicle stops at the exit, just before the barrier. The sensor detects its presence and the dedicated camera verifies the number plate against payment information, or the listing of the vehicle on the database (e.g. subscribers). The management system validates correct payment, or entitlement to park without payment to enable exit. The exit barrier rises, allowing the driver to leave the car park. The barrier lowers automatically once a vehicle passes the safety sensor.

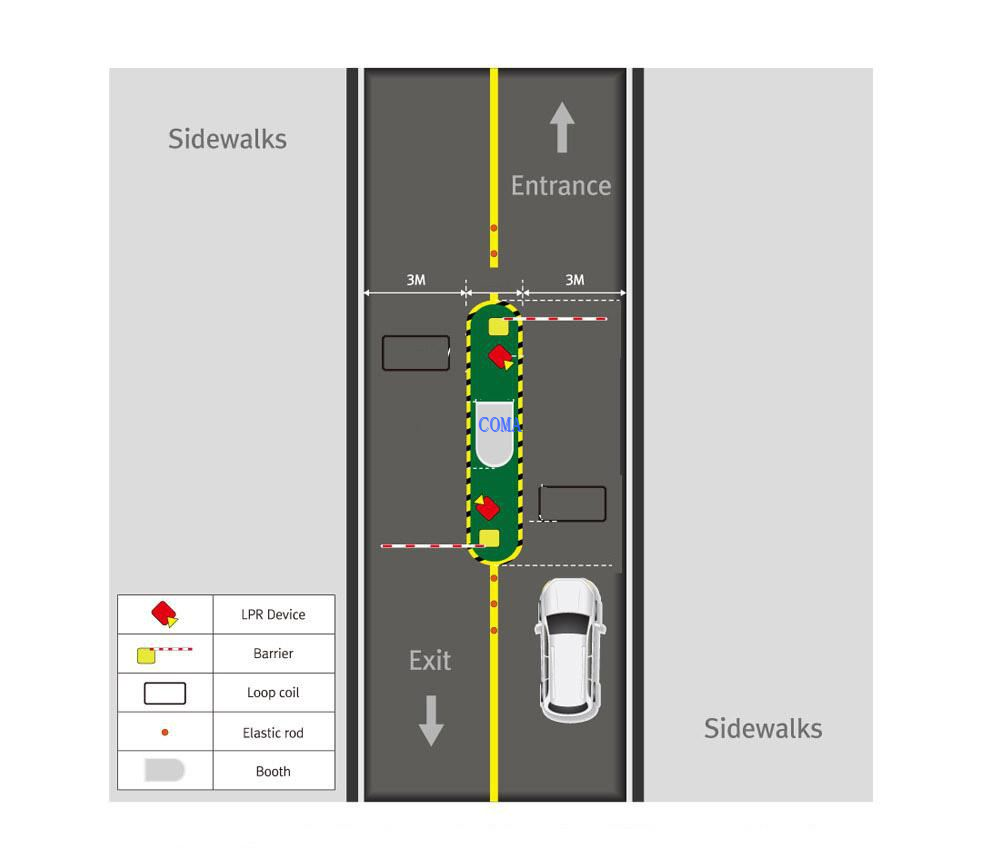

 ANPR parking system

Straight lane is the best type to recognize plate No. and ANPR camera can take an image of max.3.5m width. If ANPR device is installed more than 3.5m road width, vehicle guide equipment(ex.Elastic rod.signboard,etc.)should be installed.In case of installation speed bump the size of bump must be road width. If speed bump size is smaller than road width,driver would not approach straight way to avoid speed bump, then ANPR camera cannot capture clear and accurate image for recognition.

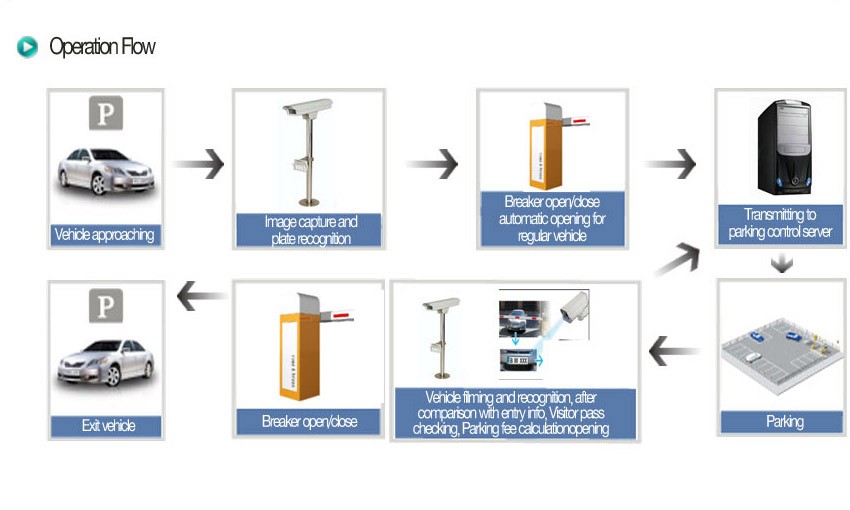

Operation Flow





flow chart.jpg





Operation S/W
ANPR SOFTWARE.jpg
production processparking meter packing
Our Services




Company Information

1,with over 15 years professional experience in parking system, barries, access control system, attendance system, wing gates, eletronic door,security post, and traffic facilities., etc
2,Joined in with numerous scientific research institution, universities, and relied on our own professional R&D engineers, producing team, patient & professional service team, we can satisfy the customers individual requirements at highest level...
3,Executing ISO 9001:2000 management system, together with professional costing & quality control, which ensure us offer competitive prices together with standard quality products


certificate
