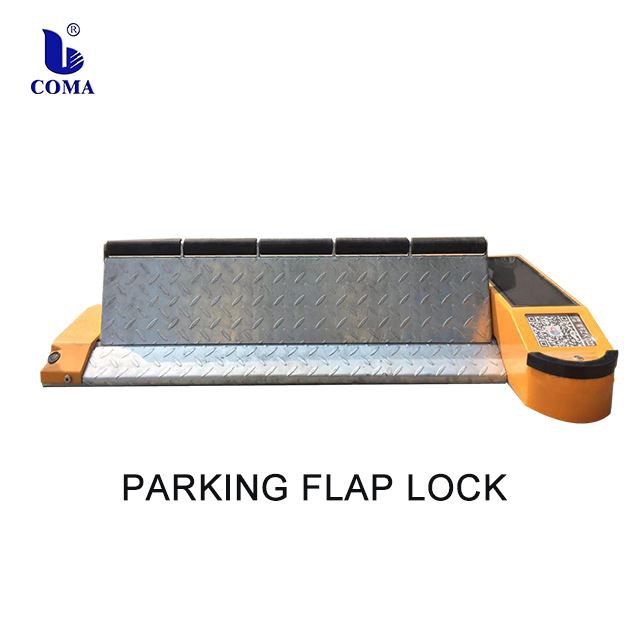

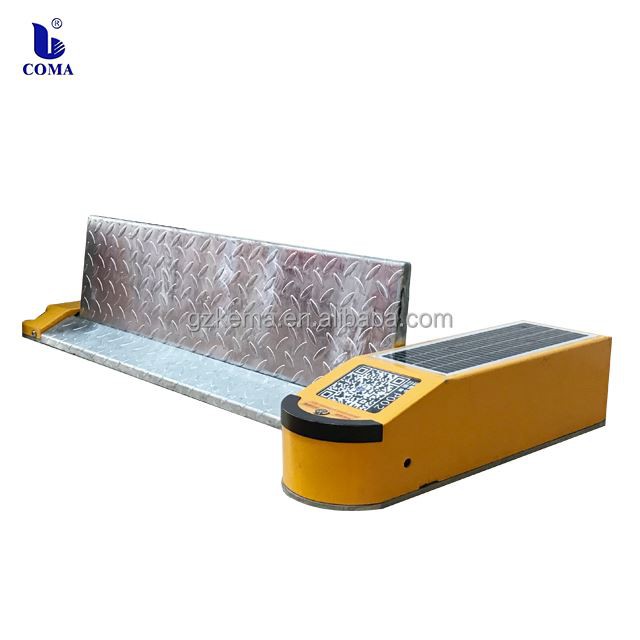

Smart Flap Parking Barrier
Smart parking flap lock is specially designed for the demand of self-service on-street parking spots smart management, use the combination of accurate mechanical transmission technology and mechanical electronic control technology, could manage the parking spots very efficiently. The equipment work with geomagnetism vehicle detector, coil vehicle detector and auto pay station easily, all equipment compose the self-service on-street parking spots management system.
This parking flap barrier is widely used in small parking lots, with 20-50 spaces. With the application of parking flap barrier in each space and the auto pay station, the parking lot can realize unattended management, which can save labor cost a lot.
Feature
1.T-Shape,max rising height≤230mm,down height is 50mm only,compact and power
2.Provide wireless 3G/4G,wire LAN,wire RS485 communication plus bluetooth technology
3.Material is reinforce steel,can bear up to 5 tons pressure,total net weight is about 60kg
4.Rising and down time can be set as need, can self-feel the rising height, to avoid to touch chassis
5.There is special material roller on the top of flap,to avoid vehicle escaping and harm chassis
6.In case of emergency，can descend flap by software, emergency button, mechanical unlock manually
7.There is reflective strip in housing front and back side to keep it safe for night parking,also can install spike light at the frame of parking space to help the parker at night
8.Can be used in harsh outdoor environment after rigorous test,include water-proof,extreme highor low temperature testing.

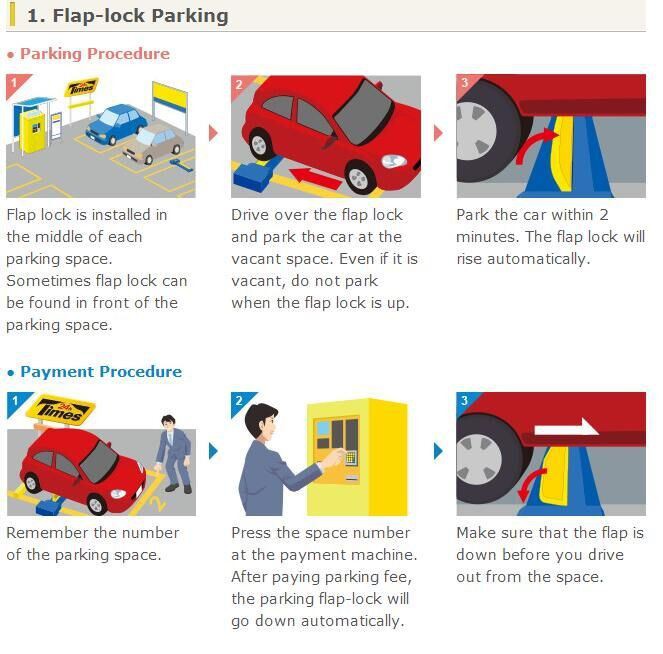

Process flow chart:
After parking a car on these types of parking lots, a parking flap lock will rise to hold the car. When the flap rises, the time counter will start. The payment for the parking fee will be at the fare adjustment machine. For payment, enter the number of your parking spot, then press the button for confirmation, followed by the payment button. Move the car only after making sure the flap has gone down.
