Information summary:
There are two types of vehicles entering and exiting the parking lot: one is the internal vehicle (monthly rental card), and the other is the external temporary vehicle (temporary parking ticket, which requires charge management). The following describes the two vehicle entry and exit management methods separately.
1. Suggestions on temporary vehicle management measures for the road gate license plate recognition system
There are three management methods for external temporary vehicle parking:
The first is to manually issue temporary parking cards. This method requires the management department to arrange a management staff to issue temporary parking cards at each gate. Judging from the actual situation of the parking lot, a card issuer must be arranged at each gate. The allocation of human resources is not very reasonable.
The second is to use automatic card issuing machines to issue cards. This method uses intelligent means, and the system automatically issues a temporary parking card to temporary vehicles entering the venue.
The third is to use the automatic exit mode. This method also uses intelligent means, and the system automatically issues a temporary parking ticket to the temporary vehicle entering the venue.
2. Internal vehicle access management
Owners of internal vehicles first go to the management center for registration, distribution, and card issuance. During the legal period of use, vehicles can use the card to park the parking lot. When the vehicle approaches the entrance of the parking lot, the fixed user with the card slows down the speed, the card reader will automatically read the information of the card in the middle distance of the car, and judge the card authority, such as sensing a valid card, the entrance camera will automatically capture For cars, the system automatically activates the barriers. When the vehicle enters the lane of the parking lot, the ground sense detects and confirms the vehicle's entry. When the vehicle passes safely, close the barrier and send the record time, entrance, owner's name, vehicle information, etc.) to the server database. When the vehicle leaves the parking lot, the sense of the ground detects and confirms that the vehicle intends to leave. When the vehicle approaches the exit of the parking lot, the card reader will automatically read the information of the card in the middle of the car, and the card reader will judge the card. If a valid card is sensed, the exit camera will automatically capture the car and the system will automatically activate the barrier. When the vehicle passes the barrier safely, it will automatically drop off and save the vehicle information record to the server database.
3. Management of temporary vehicle entry and exit outside the road gate license plate system

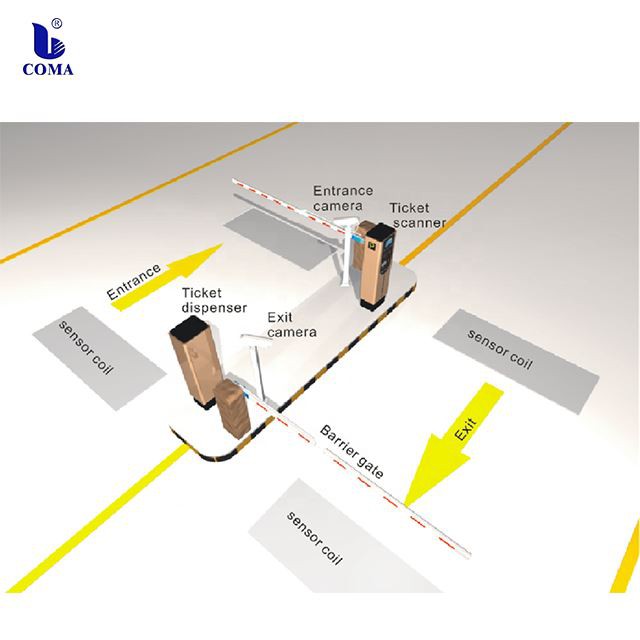

When a temporary vehicle approaches the entrance of the parking lot, the driver presses the card pick-up button of the entrance chassis and receives a temporary card from the exit. The entrance camera automatically captures the car and the system automatically activates the barrier.
When the vehicle enters the lane of the parking lot, the driver gives the temporary card to the manager, the manager reads the card, and the charging screen displays the parking fee. At the same time, the voice system also prompts the parking fee. The exit camera automatically captures the car, and the manager passes the system The captured image is compared with the car. After confirming that it is correct, the temporary card will be charged according to the rate record. The parking receipt can be printed out, and then the manager can confirm on the software to open the barrier. When the vehicle is safe to listen to the barrier, it will automatically fall And save the vehicle information record to the server database.
