With the development of the parking management system, more and more countries use the parking automatic payment system, for this month, we have received orders from Bangladesh, Salvador and Russia. Now, let's introduce COMA auto payment system with ticket dispenser system. If you want to know more about parking system, pls click www.coma-carparking.com
Work flow of central payment model(include payment machine):
A: Registered parkers- Swipe the parking card enter and leave.
B: Temporary parkers(Visitor)
ENETER: come to the entrance,presence at the coils sensor,press the button of ticket dispenser,to take a barcode ticket, camera will take a snapshot to store in the system, barrier gate open, vehicle entered, boom of barrier gate will lay down automatically
Pay at the automatic payment machine or central manual payment point
Exit: come to the exit, scan the barcode ticket, confirm the payment,take a snapshot,store in the system,
barrier gate will open,vehicle passed, boom will lay down automatically.

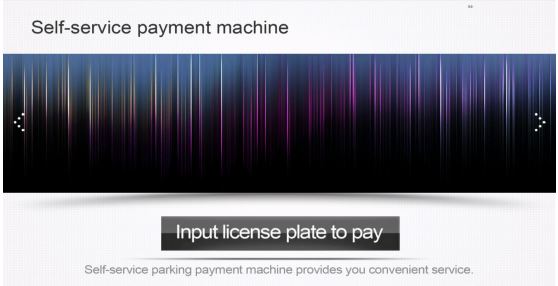

1. Below is APM home page. When driver comes to APM, click “Input license plate to pay” to enter next interface.

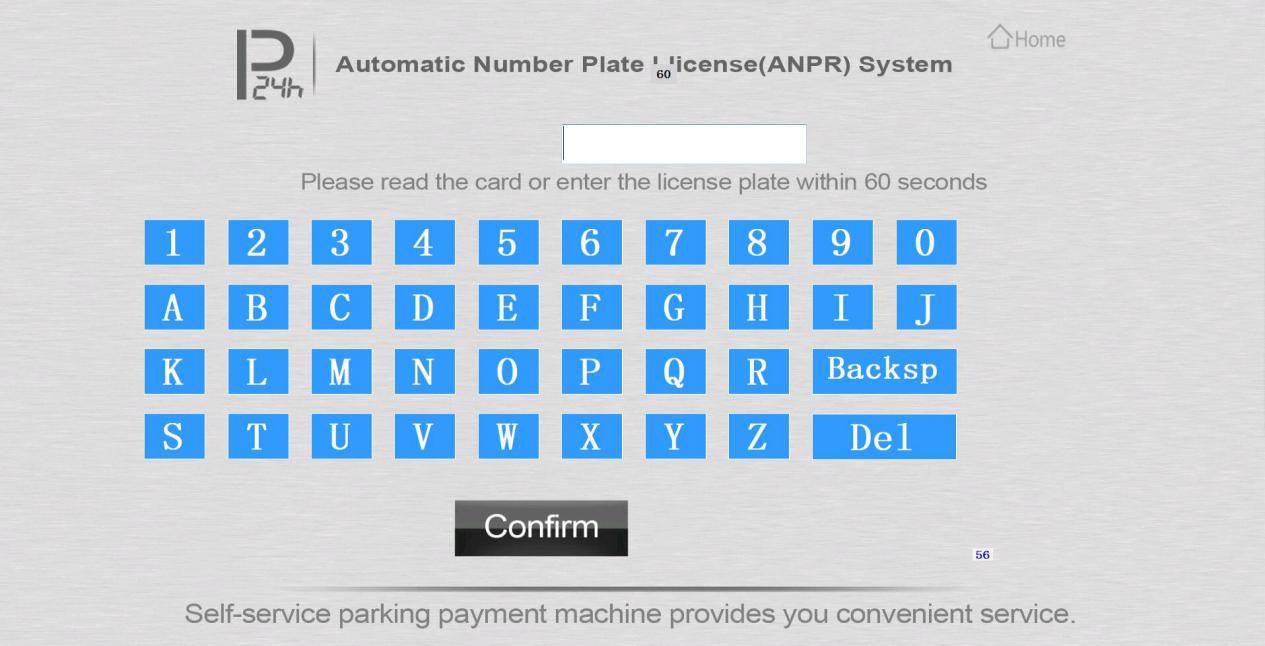

2. Enter license plate no. ( support fuzzy search), if license plate is ABCDEF, you can enter ABC, BCD or DEF, it displays related license plate no.

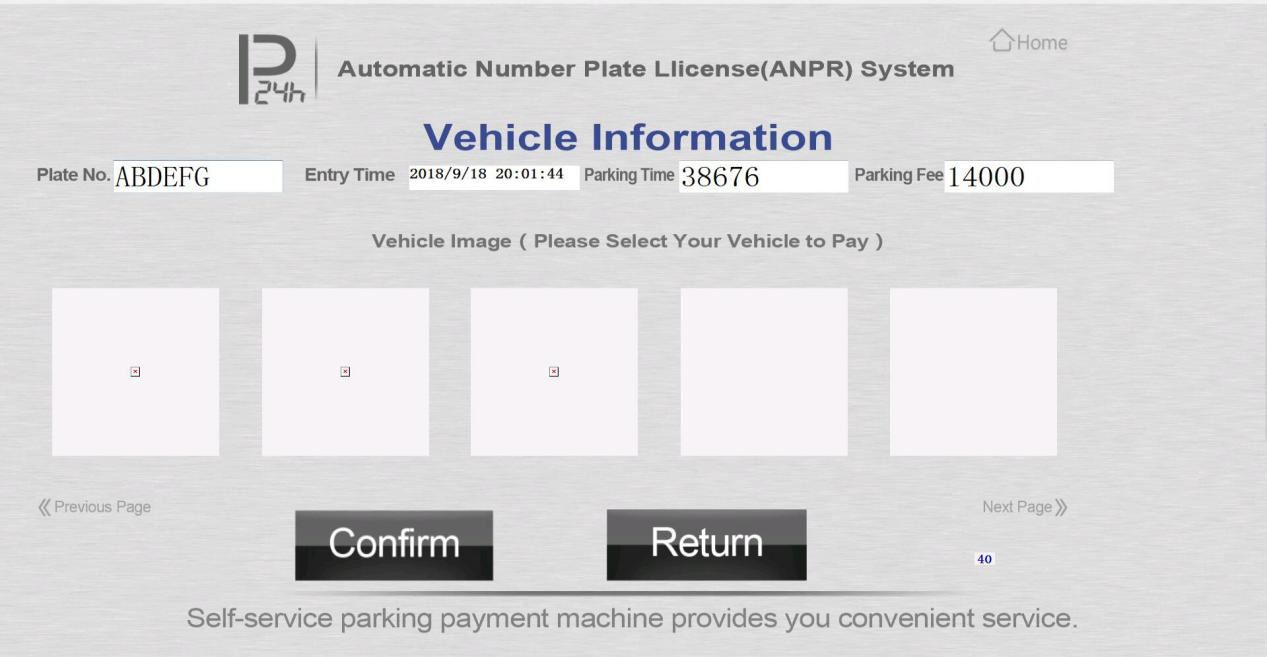

3. When input partial plate no., it shows all related plate no., if your license plate no. can’t be found in first page, click “ previous page” or “next page” to look for. Select your license plate picture, click “ confirm”.

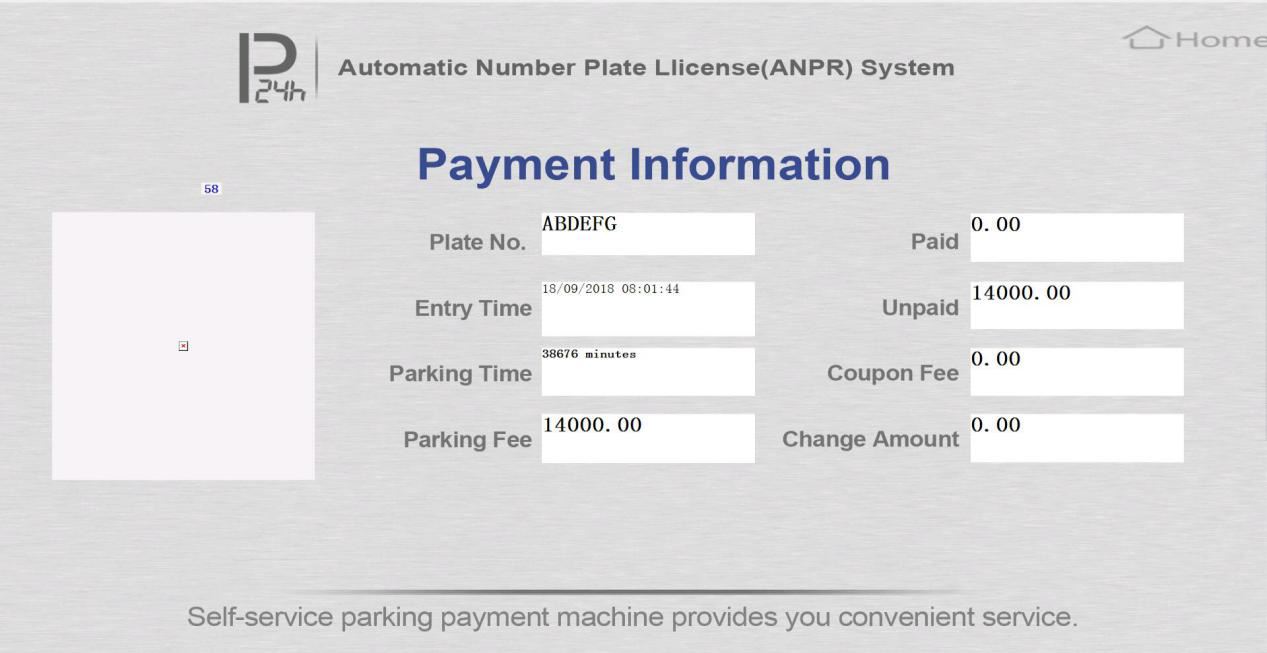

4. Payment information will display payment information as below:
After payment is made, APM will give change and print a receipt. The driver must leave parking lot within grace time (Usually is 15 minutes grace time), if drivers leave the lot exceed grace time, system will calculate parking fee again.
When payment is done, system will return to standby interface.
