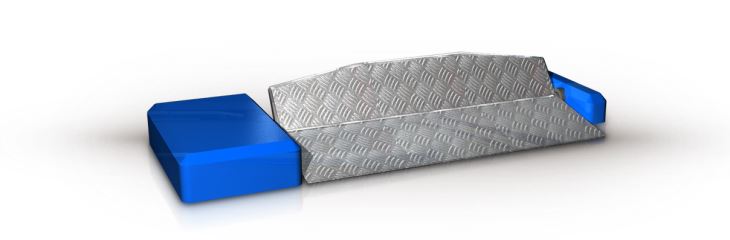

COMA supply the whole set of Intelligent parking lock operation control system. It is including parking flap lock, wireless geomagnetic sensor and the intelligent charging terminal.
Feature:
1. Excellent safety. Vehicle detector underground detects car coming, then flap will automatically rise.
2. Durability, Reliability. Short motor running time, long running life
3. Motor driving movement, low power motor driving, light weight design.
4. Can be controlled by remote controller
5. It can be connected with auto pay station or parking meter and controlled by the management center
Parking Lock Parameter
* Voltage: AC 220V
* Power consumption: 60W
* Current: 6MA
* Lifting weight: 210mm
* Rising time: 2s
* Size: L*W*H 1100*400*95MM
* Net weight: 45kg
* Package carton
* Gross weight: 47kg
* Working temperature: -35 ~ +65 degree
* Communication: RS485
Wireless geomagnetic sensor Function characteristic
1) Geomagnetic sensors are used to detect the changes of the earth's magnetic field during the passage of ferromagnetic objects, so it is not The effects of climate;
2) By setting up the sensitivity to identify the size of the ferromagnetic object, the vehicle can be roughly judged The type of;
3) There is no reaction to non-ferromagnetic objects, so it can effectively reduce the false detection.
Parking Meter Process flow chart:
After parking a car on these types of parking lots, a flap will rise to hold the car. When the flap rises, the time counter will start. The payment for the parking fee will be at the fare adjustment machine. For payment, enter the number of your parking spot, then press the button for confirmation, followed by the payment button. Move the car only after making sure the flap has gone down.
