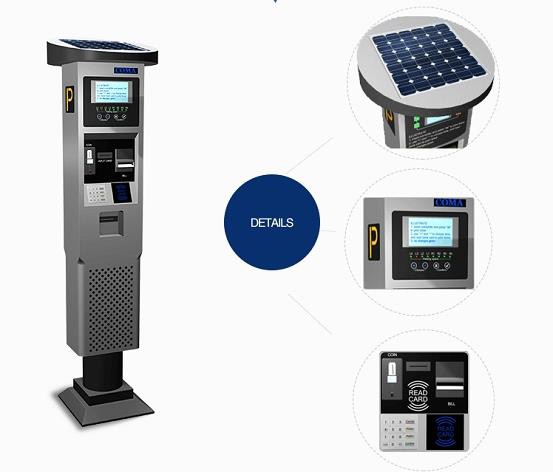

Parking meter is a device used to collect money in exchange for the right to park a vehicle in a particular place for a limited amount of time. Parking meters can be used by municipalities as a tool for enforcing their integrated on-street parking policy, usually related to their traffic and mobility management policies, also used for revenue.
Working process
1.Select parking duration“←” for more time, “→” for less time
2.Press OK when desired expiry time is displayed or cancel to start again.
3.Insert cash/coin/card to pay parking fee
4.A ticket will be printed to Parker
5.Display ticket on the windscreen dash.

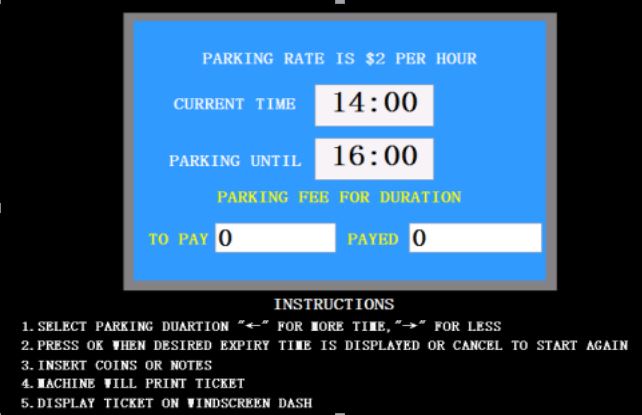

Parking meter interface
Technical parameter
Dimensions(H*W*D):1550*320*270mm
Weight:75-80kg, depend on configuration
Power supply: 110V/220V
Battery operation:12VD,70Ah
Operating temperature:-40℃+75℃
Relative humidity: Up to 97%
Speakers: Single, 4Ohm, 15W
Display:7”(1024*768 pixels)graphical, LCD display screen
Buttons:4 buttons(← → √ X
Communication: GSM/GPRS/3G/4G,LAN
Printer: Thermal printer,issuing up to 1000 tickets per refill
IP class: IP65
How to print report for cash collection amount in the machine

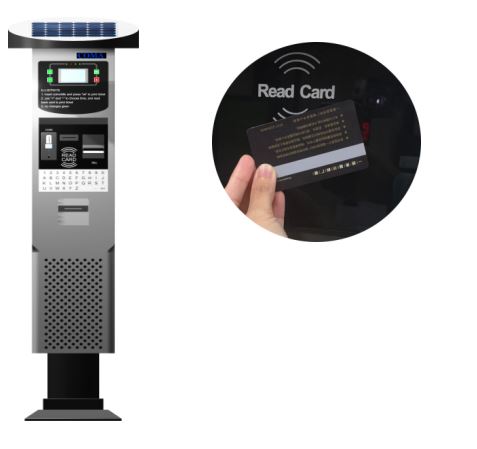

Read the management card in the card reading area of machine, then the stock account interface appears
in the screen, showing the cash amount information , then press "√", a report will be printed.
Report printing: press "√" button on the parking meter ‘s panel ,then a ticket showing the total amount collected in the machine will be printed.
Close: Press "×" button on the panel to return to home page.
Power supply --solar and electricity
Solar panel Technical data
PMAX: 10W
VMP:18V
VOC:21.6V
IMP:0.55A
ISC:0.61A
Discrepancy: ±3%
Quantity of Battery panel:36(2*18)
Working temperature:-40℃- +85℃
When the power in the solar storage battery is enough to support machine running, it will take precedence of the battery power.
When the storage battery power is insufficient to support running, the machine will switch to electricity automatically.
Suitable for outdoor use
The machine is IP65, working temperature -40℃- +75℃, can properly work under extreme cold and hot weather. Water proof, dust proof, anti-acid corrosion.
Features

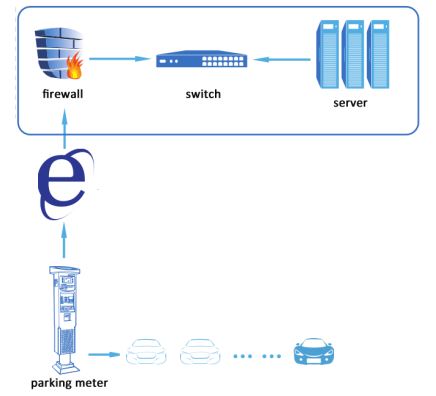

1. Wireless communication for transaction data
The machine is equipped with wireless communication module, and it can be inserted the SIM card for wireless communication. Manager can real time monitor the status of the machine in the office. He can set or change the parameters of the machine in his computer, and get all the transaction data and print all kinds of reports.
2. Maintenance and Malfunction Alarm
Each module is independent, if one module is out of service , it will not affect other modules' working. Just replace it with a new one, and the replacement is easy.
If the printing ticket is about to run out , the alarm will be sent to server in advance and staff can refill the ticket .
If the machine is disconnected to Internet, or the printer, coin/bill validator not working, machine will send signal to server, so the manager can see what problem it is in the software.
3. Damage Alarm
The machine is equipped with alarm siren. Anyone who maliciously attempts to open or destroy the machine will trigger the alarm siren.
Production Process
Packaing Method
